About TT Electronics Optek Technology
We design and manufacture innovative optoelectronic solutions for sensing and illumination applications. Our capabilities also include the design and manufacture of standard and application-specific lighting components and assemblies for applications in signage, entertainment, exterior and interior lighting, automotive and high reliability applications
Technical Resources
Product Range

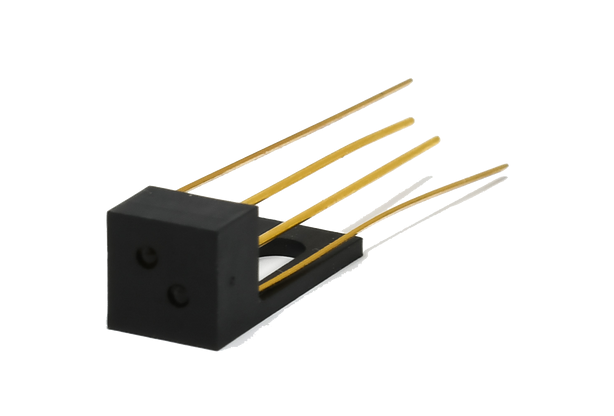

OPB735 Reflective Object Sensor
The OPB735 series sensors consist of an infrared light emitting diode and an NPN silicon phototransistor or photodarlington, encased side-by-side on converging optical axes in a black thermoplastic housing.
The detector responds to light from the IRED only when a reflective object passes within its field of view.
The OPB735 series employs hermetically sealed metal can packaged components.
Features:
- Choice of phototransistor or photodarlington output
- Unfocused for sensing diffuse surfaces
- Non-conductive plastic housing
- Low profile to facilitate stacking
- #28 AWG lead wire in 12” ( 300 mm) length
Applications:
- Non-contact reflective object sensor
- Assembly line automation
- Machine automation
- Machine safety
- End of travel sensor
- Door sensor
- Compatible with Honeywell
HOA1180 and HOA2498
Product Documentation
OPF350A fibre optic transmitter
OPF350A is a robust alternative to OPF370A with a shorter lead time.
The OPF350A fibre optic transmitter is a high performance TO-18 device packaged for data communication links. This transmitter is an 850nm GaAlAs LED and is specifically designed to efficiently launch optical power into fibres ranging in size from 50/125µm up to 200/300µm diameter
Features:
- 850nm LED technology
- TO-18 plastic clear-cap package
- High thermal stability
- High optical coupling efficiency to multimode fibre
- Industrial temperature range
- High-reliability with long operational life
Applications:
- Power generation communication
- Industrial Ethernet equipment
- Copper-to-fibre media conversion
- Intra-system fibre optic links
- Video surveillance systems
Product Documentation

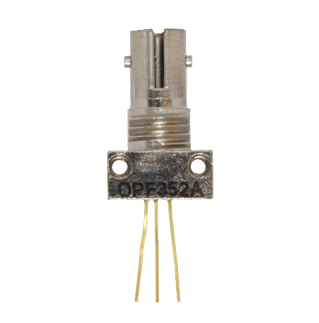

OPF352A fibre optic transmitter
OPF352A is a robust alternative to OPF372A with a shorter lead time.
The OPF352A fibre optic transmitter is a high performance device packaged for data communication links and comes with an integrated OPF350A inside a metal ST receptacle. The OPF352A is manufactured to optimize power output at various fibre diameter sizes.
Features:
- 850 nm LED technology
- Sturdy ST® style receptacle
- Pre-tested with fibre to maximize performance
- OPF350A pre-mounted and ready to use
- 35MHz operation
- Field-proven reliability
Applications:
- Power generation communication
- Industrial Ethernet equipment
- Copper-to-fibre media conversion
- Intra-system fibre optic links
- Video surveillance systems
Product Documentation

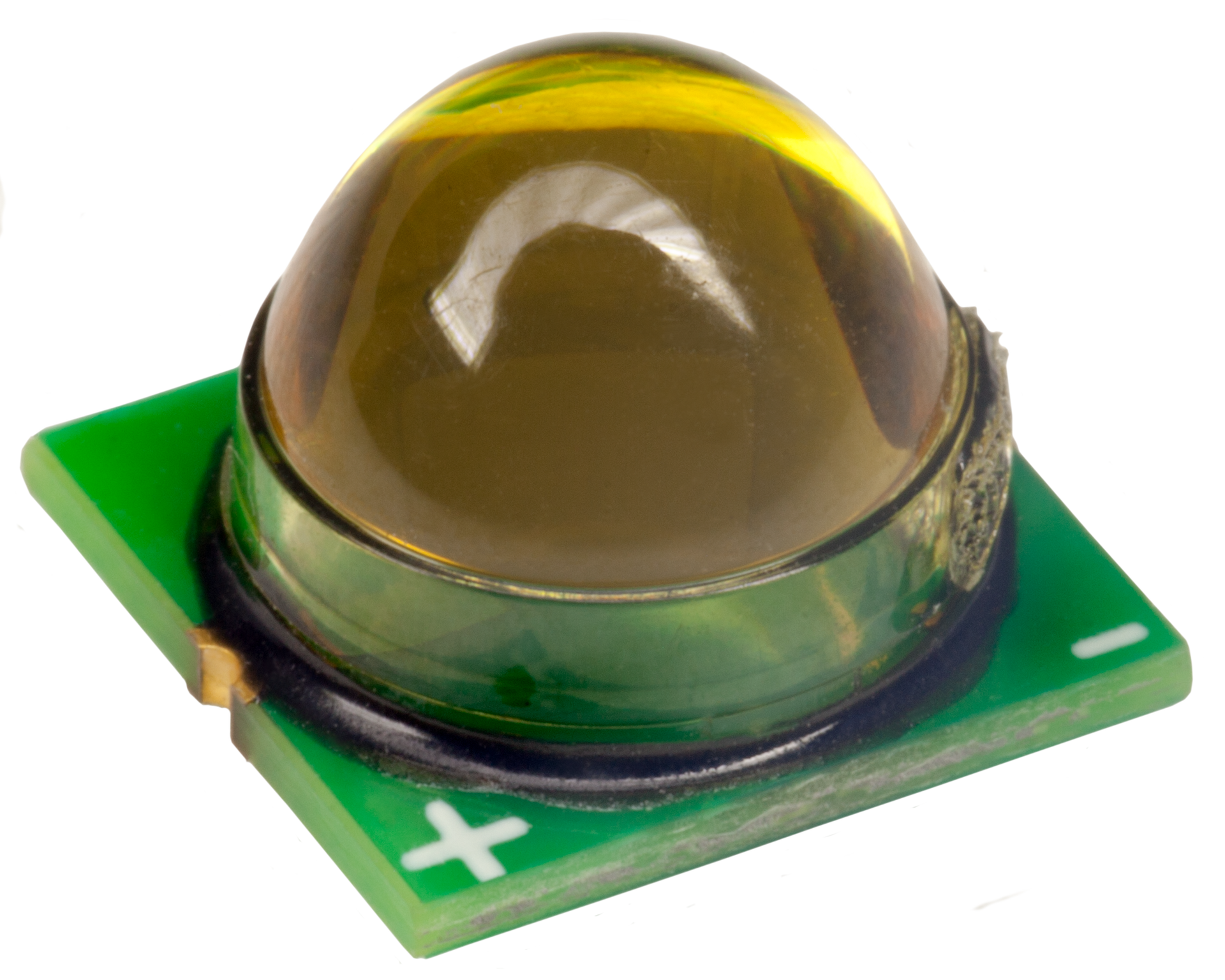

OP207CL: High-Powered 7mm IR LED Emitter
Summary:
- Only 7mm spot size in the industry today!
- Parallel beam uniformity
- Homogeneous light
- Ideal for encoder applications
- Low-profile surface mount configuration
- Near IR-LED wavelengths
Features:
- High-powered IR LED designed for incremental or absolute encoder applications
- 7mm spot diameter with uniform distribution
- High-power output with parallel rays
- Collimated, narrow beam with excellent coupling efficiency
- Small, surface mount footprint L 9.9mm x W 9.9mm x H 6.3mm
Applications:
- Incremental linear and rotary encoders
- Optical sensors switches
- Long range light barriers
- Optical scanning and edge sensing
- Automatic control systems
- Collimated light emission applications
- Security systems
SMD Reflective Optical Sensor - OPB9000
The OPB9000 is a versatile sensor that can be used in a wide variety of industrial and medical applications. The sensor features market-leading ambient light immunity which allows operation from dark rooms to bright sunlight. It can detect various types of media with as little as a 30% change in reflectivity. Robust, industrial grade resin allows the sensor to operate at a wide temperature range from -40C to + 85C, ideal for the harshest environments.
Features
- Market leading 25k+ lux ambient light immunity
- Programmable output configuration and sensitivity level
- Single-command calibration with on-chip EEPROM
- Temperature-compensated LED drive
- 6μs response time
- Pulsed synchronous drive-detection
- Surface mount package
- Small dimensions: L 4.0mm x W 2.2mm x H 1.46mm
- -40°C to +85°C operating temperature range
- 2.7V to 5.5V supply voltage
- Ideal for industrial and medical applications
Applications
- All non-contact position sensing and presence detecting applications
- Industrial printing and high-speed paper detection
- Manufacturing and automation
- Automated banking machines
- Hospital and lab equipment
- Portable medical equipment
- Automatic dispensing
- Material handling and asset tracking
OPI1268S High-Voltage Optoisolator for Industrial, Transportation and Medical Applications
Optoisolator carries the UL, VDE, ATEX and IP certifications for harsh environments.
OPI1268S has become the industry’s only high-voltage Optoisolator to carry all four of the UL, VDE, ATEX/IECex and IP65 certifications for operation in harsh and potentially hazardous environments. Featuring 20KV isolation and ≤50ns propagation delay, the OPI1268S is ideal for metering equipment, transportation systems, hybrid vehicles, medical devices, and industrial control/safety systems.
Product Documentation
Popular OPTEK Products
| Part No. | Description | Datasheet |
|---|---|---|
| OP604 | Pill Phototransistor with solder dip | Datasheet |
| OP224 | Pill LED with solder clip | Datasheet |
| 3C92C | TO-72, Optically Coupled Isolator | Datasheet |
| 4N49U | SMT Optically Coupled Isolator | Datasheet |
| HCC242TX | SMT Optically Coupled Isolator | Datasheet |
| OMH3075B | Ceramic, Bi-Polar Hall effect | Datasheet |
| 2N2222AUA | 4 pin SMT NPN transistor | Datasheet |
| OP805TX | TO-18, NPN phototransistor | Datasheet |
| OP236TX | TO-46, GaAlAs Infrared LED | Datasheet |
| 2N2907AUA | 4 pin SMT PNP transistor | Datasheet |
Optoelectronic Sensors & Switches
OPTEK optoelectronic components for medical, industrial, military, high reliability, commercial, and automotive applications combine design flexibility with the highest reliability. Available in any package type and size, think OPTEK for your next fluid sensor, slotted or reflective switch, pill pack, or isolator design.
Fibre Optic Components
Delivering the highest coupling performance and thermal stability, our fibre optic VCSELs, transmitters, receivers, and transceivers are designed for optimum performance in fibre optic data communications applications.
Visible LEDs
As a major provider of high reliability LEDs and LED assemblies for signage, backlighting, channel lighting, high brightness indicators and illuminators, automotive interior and exterior lighting, architectural and entertainment lighting applications, OPTEK’s standard and custom LED devices are available in the package sizes and power ratings to meet all your lighting needs.
