Product Ranges
E-Switch offers one of the industry's most comprehensive portfolios of electromechanical switching solutions, supporting applications across industrial, medical, telecommunications, instrumentation, consumer electronics and transportation sectors.
The range includes anti-vandal switches, pushbutton switches, rocker switches, toggle switches, slide switches, rotary and DIP switches, illuminated switches and power switching solutions. Designed for reliability and long service life, E-Switch products are available in a wide variety of configurations to meet demanding application requirements.

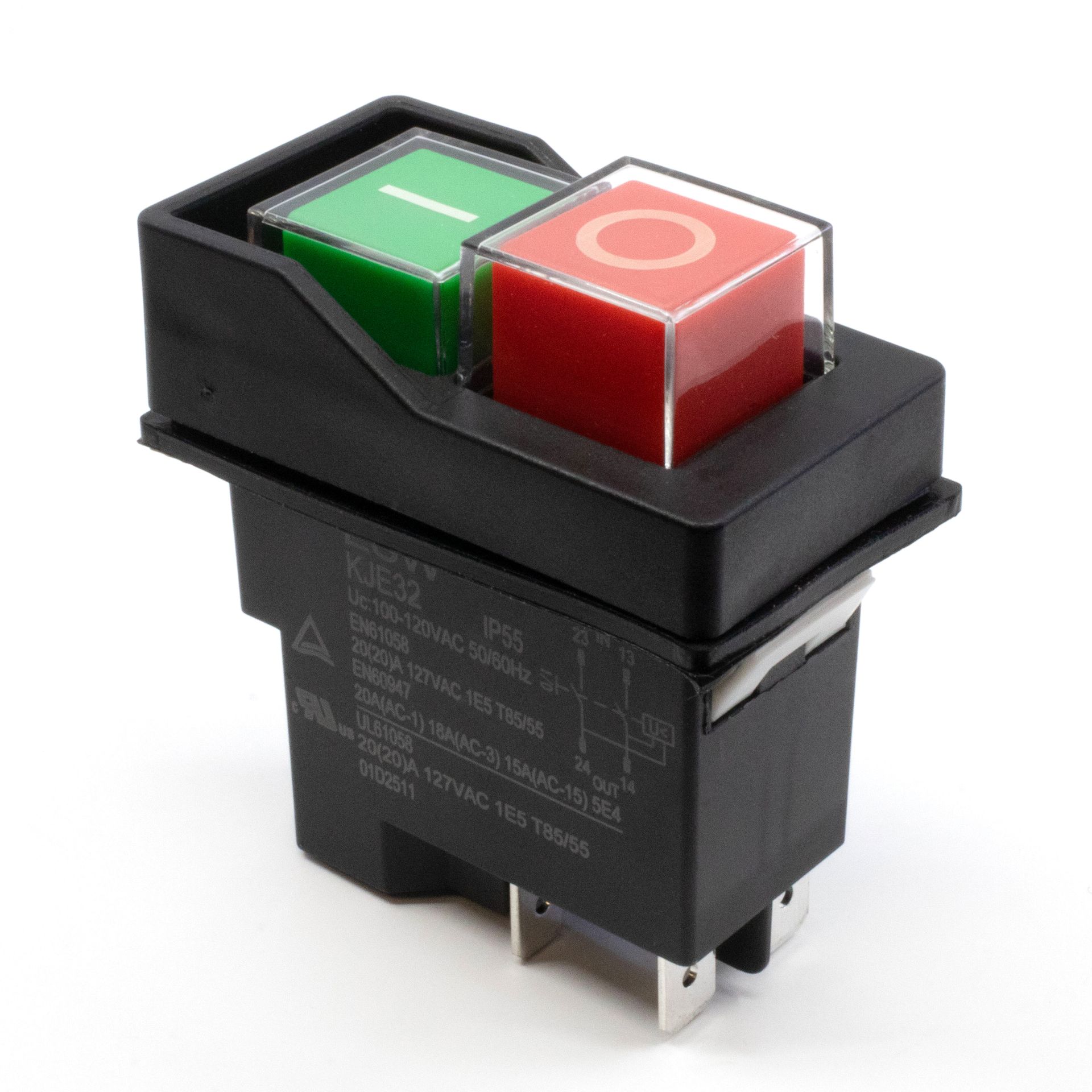

KJE32 NPI Release
The KJE32 Series is a heavy duty, power pushbutton switch that's well-suited to Industrial, Automation, Construction and Agricultural environments. This switch features an electromagnetic coil that provides automatic protection against power outages, as well as circuit functions that can accommodate a remote trip for additional safety. It’s TUV and UL listed with contact ratings up to 20A (AC), 25.1A (DC) and 240Vac.
The KJE32 fits a rectangular 46mm x 22mm panel cutout. The switch's large sizemakes it easy to operate, while the bezel color comes in black or an eye-catchingyellow. The red/green actuator buttons can be customized with four differentmarking styles.
Applications
- Industrial
- Automation
- Construction
- Agricultural
Specifications
- Contact Arrangement: 2NO, NO + NC, 2NO + NC
- Contact Rating: 20(20)A 250VAC 1E5 T85/55 TUV(EN61058)20(20)A 127VAC 1E5 T85/55 TUV(EN61058)20(20)A 127VAC 1E5 T85/55 UL(EN61058)25.1A 60VDC 10E4 T85/55 UL(EN61058)
- Agency Approvals: TUV EN61058, UL EN61058
- Contact Resistance: < 50mΩ
- Insulation Resistance: Min 100MΩ
- Operating/Storage Temperature: T85/55 / -20°C to +85°C
- Dielectric Strength: 1,500VAC
- Electrical Life: 10,000
- Travel: Green Button- 4.7 +/-.3mm; Red Button- 2.3 +/-.3mm
- Moisture Protection: IP55
- Actuation Force: Green Button- 25N+/-5N; Red Button- 10N+/-5N
Product Documentation

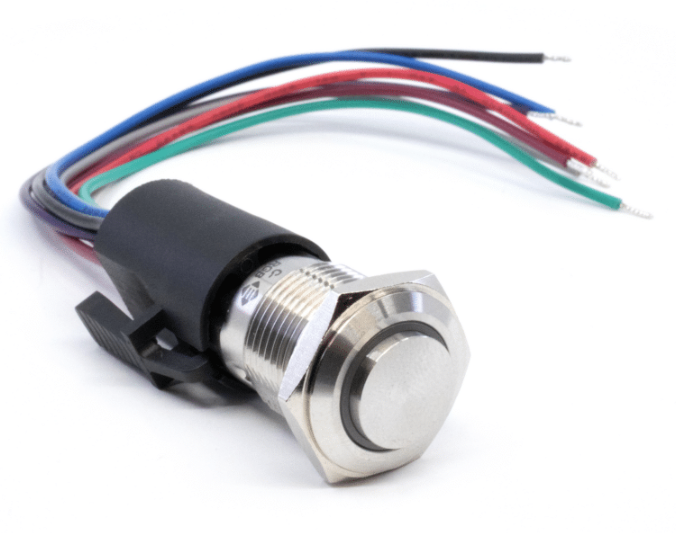

PVPB3 Series Wired Socket Extension
Features
- PVB3 Series socket extension with 22AWG, 140mm long wire leads
- IP67; 16mm diameter panel cutout
- Non-illuminated, LED or RGB illumination options
- UL recognized: 5A/250VAC (Resistive), 1.5A/250VAC (Inductive)
- SPDT; Momentary or Latching functions
Product Documentation

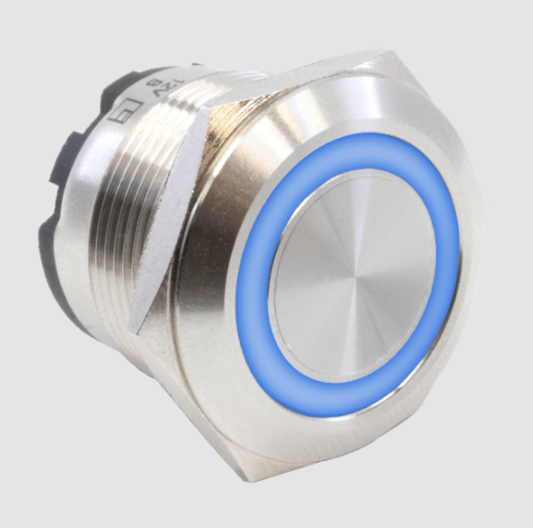

PVHC7 Series Anti-Vandal Switch
Features:
- Electrical Rating: 20A @ 250VAC
- 22mm diameter panel cutout
- IP67 rated
- Non-illuminated, ring or ring/power symbol illumination with LED options
- SPST; latching or momentary function
- Stainless steel or black anodized body and actuator finish
Product Documentation

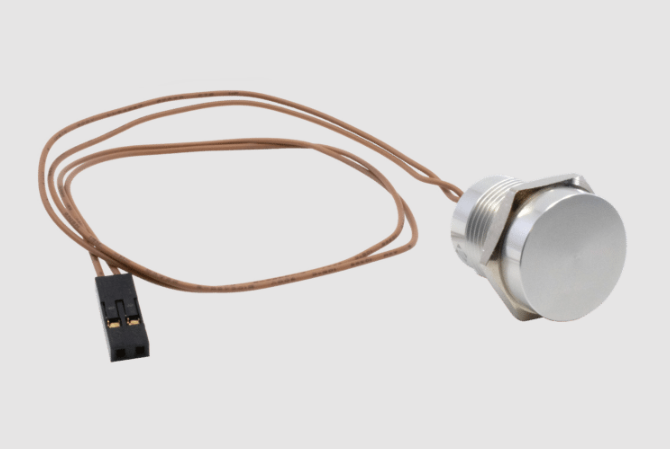

PZ3 Series Anti-Vandal (Piezo Switch)
Features:
- 16mm panel cutout
- IP68 (in-house tested)
- Electrical Rating: 1A, 5-24VDC
- Momentary Pulse Function
- 300mm wire leads with 1×2 connector housing pin
- Electrical Life: 50 million cycles
Product Documentation
PZ3 Datasheet | PDF

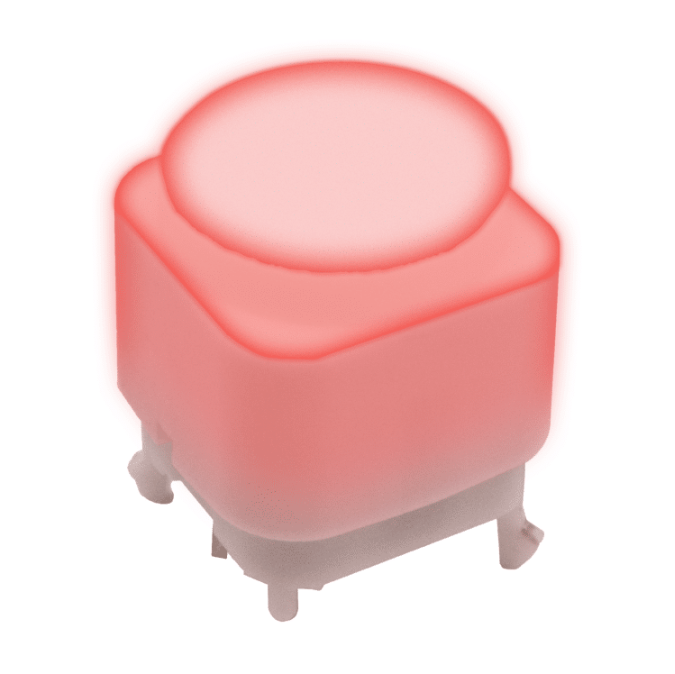

PB350 Series Pushbutton Switch
Features
- SPST or SPDT/Double action
- Double action: first circuit closes mid travel, second at full travel
- Long travel – 2.0mm
- High actuation force (ST: 490 grams; DT: 1st position – 600 grams, 2nd position – 1,150 grams)
- Tactile response
- LED colors: red, white, yellow, blue or green
Product Documentation

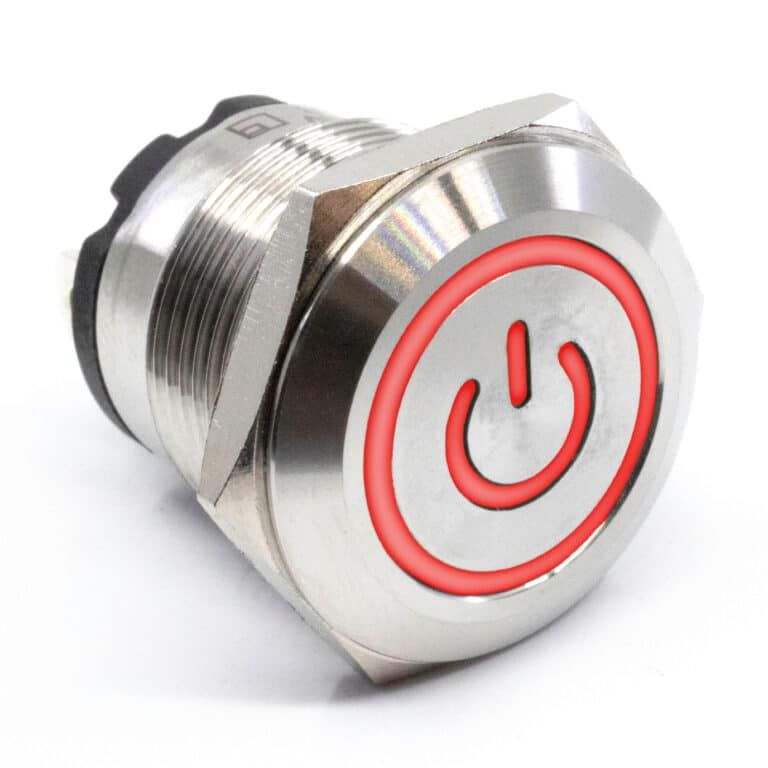

PVHC4 Series Anti-Vandal Switch
Features
- Electrical Rating: 20A, 250VAC; 25A, 30VDC
- 19mm diameter panel cutout
- IP67 rated
- Non-illuminated, ring or ring/power symbol illumination with LED options
- SPST; latching or momentary function
- 50,000-cycle electrical life
Product Documentation

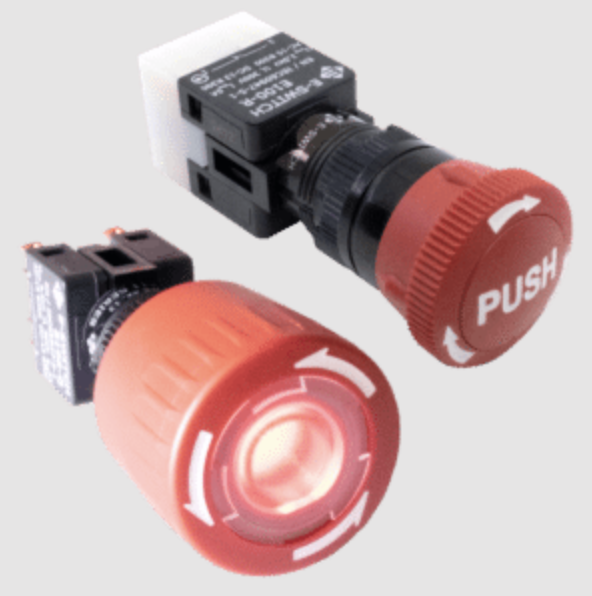

E100 & E200 Pushbutton Switches
Features
- IP65 ratedh
- Easy operation
- High actuation force
- Multiple illumination options
- Pushlock turn design to reset
- 16mm cutout size
Product Documentation

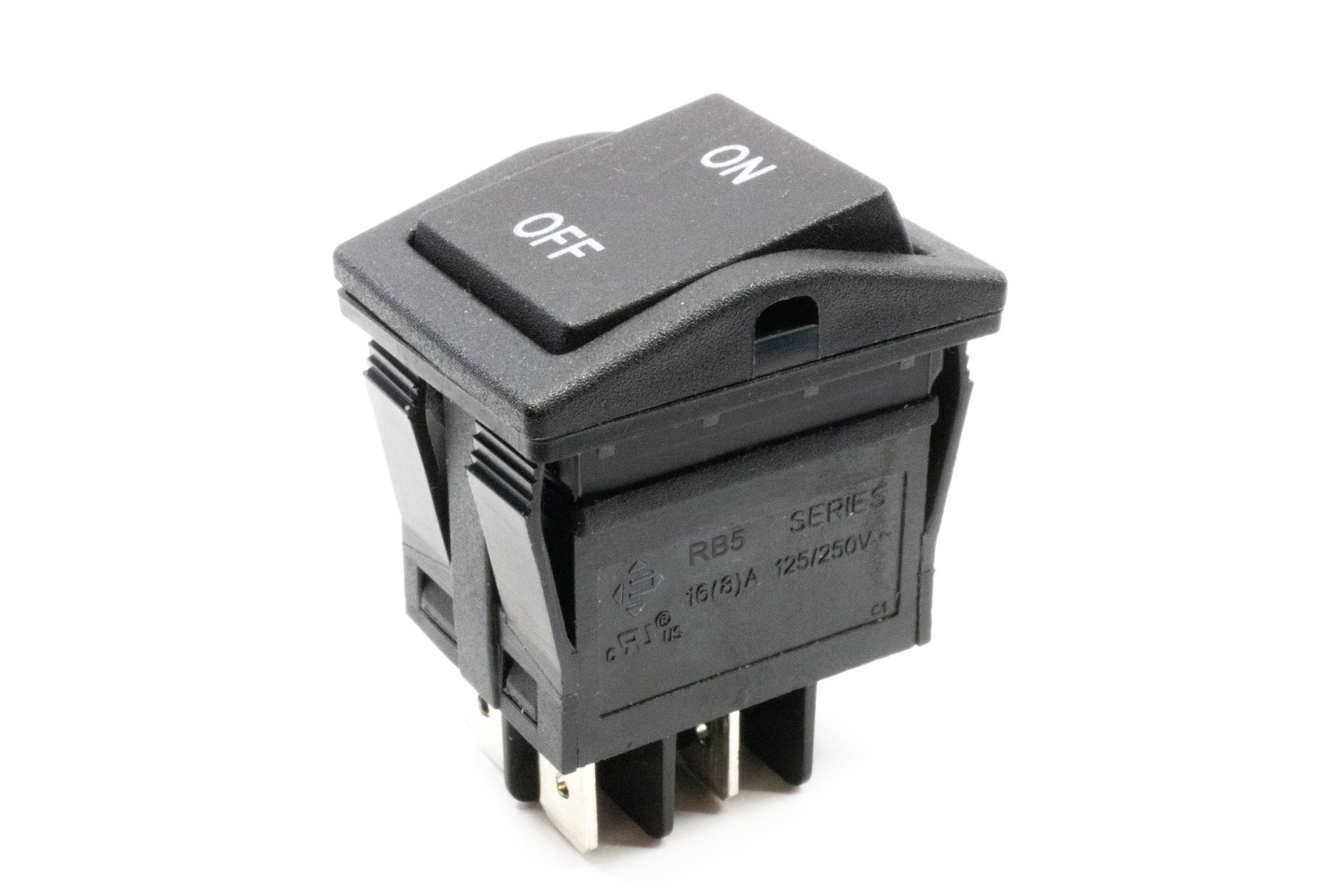

RB5 Series Rocker Switch
Introducing the RB5 Series rocker switch, designed with high quality and high reliability. Sealed switches are available with five electrical ratings, providing IP67 rating. Dual Illumination is available in five colors. This switch also features eight marking options.
The RB5 Series rocker switch is meant for front panel mounting in cutouts sized 22mm by 30.2mm. These rockers perform two pole maintained or momentary functions. Electrical ratings range from 16-20amps and the electrical life on these switches are 10,000 cycles. All RB5 Series rockers are cURus and ENEC15 approved.
Applications
- Floor Care Appliances
- Electrical Housewares
- Medical/Dental
- Industrial Controls
- Commercial Appliances
- Instrumentation
Features
- High Quality and Reliable Switch
- Industry Standard 22mm x 30.2mm Cutout
- Illumination Options
- Marking Options
- Multiple Actuator Options
- Front Panel Mount Applications
- 2 Pole Maintained and Momentary Functions
Product Documentation
PV Series IP65
The anti-vandal switches offered by E-Switch include eight PV-series of switches ranging from 16mm diameter panel cutout, up to 25mm. Many illumination options. Anti-vandal switches can be found on elevators and kiosk applications. With a wide variety of options, including illuminated, sealed and long life expectancy.
PV1 Series Long Life, Water Resistant Anti-vandal Switches
- 19mm diameter panel cutout
- 1 pole Off-(On) with IP65 rating
- Solder and screw terminal options available
PV2 Series Water Resistant, Long Life Anti-vandal Switches
- 16mm diameter panel cutout
- 1 pole Off-(On) with IP65 rating
- Solder and screw terminal options available
PV3 Series Illuminated, Sealed, Long Life Anti-vandal Switches
- 16mm diameter panel cutout
- Dot and ring illumination options available
- 1 or 2 poles momentary functions
- Up to IP65 rating
PV4 Series Illuminated, Sealed, Long Life Anti-vandal Switches
- 19mm diameter panel cutout
- Dot and ring illumination options available
- 1 or 2 poles maintained, momentary and
double break functions with IP65 rating
PV5 Series Sealed, Long Life Anti-vandal Switches
- 12mm diameter panel cutout
- Solder terminal options available
- 1 pole momentary switch
- IP65 rated
PV6 Series Illuminated, Sealed, Long Life Anti-vandal Switches
- 16mm diameter panel cutout
- 1 pole Off-(On) with IP65 rating
- Dot and ring illumination options available
- Solder and screw terminal options available
PV7 Series Sealed, Long Life, Illuminated Anti-vandal Switches
- 22mm diameter panel cutout
- Dot and ring illumination options available
- 2 poles maintained and momentary functions
- IP65 rated
PV8 Series Illuminated, Sealed Anti-vandal Switches
- 25mm diameter panel cutout
- 1 or 2 poles maintained and momentary functions
- Dot and ring illumination options available
- IP65 rated
500R Series IP67 Slide Switch Sealed
The 500R series sealed slide switch offers IP67 ratings for protection from water, dust and the elements. It comes in up to 3-positions and has both SPDT and DPDT options.
This slide switch can work well in a variety of applications and markets, where protection from moisture and dust is of a concern.
Product Documentation
RBW2 Series Fully Illuminated IP66 Rated Rocker Switch
Finally a fully illuminated power-rated rocker switch that is sealed to IP66 ratings WITHOUT THE BOOT! No rubber boot / PVC cap is needed for our brand new RBW2 series rocker switch. It uses a patented sealing technology (Patent No. US 7,872,205 B2) to provide protection from dust and moisture all while offering full illumination!
- Approved under new UL 61058-1 rating.
- UL approved up to 1/3 HP
The markets for the new fully illuminated RBW2 series sealed rocker switch include commercial appliances, electrical housewares, floor care appliances, industrial controls, medical equipment and white goods.
Product Documentation
RDT Series Rotary DIP Switch IP67
The RDT series Rotary DIP switch offers convenience in a small package size. It is sealed to IP67 ratings, offering protection from the elements for more rugged applications. This rotary DIP switch offers up to 16 positions and has right angle or vertical mounting options. The RDT series rotary DIP switch can come with SMT or thru hole termination.
This switch can be used in many markets, including audio/visual, computer peripherals, consumer electronics, instrumentation, telecommunication and medical devices.
Product Documentation
700A Series IP67 Sealed Push button Switches
This sealed pushbutton switch has a snap acting contact design and comes with multiple termination options. Sealed to IP67 specs. Great for applications in telecommunications, networking, computers/servers, performance audio, instrumentation and more.
Product Documentation
800A Series IP67 Sealed, Sub-Miniature Push Button Switches
This sealed sub-miniature pushbutton switch has a butt contact design and an IP-67 sealed option. Markets for this switch include telecommunications, networking, computers/servers, performance audio, instrumentation, low power on/off designs, external hard drives and modems.
Product Documentation
