MTM Power® has been developing and manufacturing power supplies and transformers for industrial, railway and power engineering applications for over 25 years. Offering high safety and high quality specifications, MTM power modules are the perfect solution for Railway Applications, E-mobility, Transport, Special Vehicles, Wind Energy, The Telecom Industry, Power Plants, The Chemical Industry, Industrial Robots, Programmable Logic Controls, and Safety-conscious Areas (e.g. Petrochemical Drilling Platforms).

With an in-house R&D department, MTM's own EMC laboratory, and state-of-the-art technical equipment, MTM Power can assist with all your design requirements.

Technical Resource	Download
Power Supplies for Transportation Catalogue	Download
Power Supplies Flyer	Download
MTM Power Product Shortform	Download
MTM Power Shortform AC-DC Modules	Download
MTM Power Shortform DC-DC Converters	Download
MTM Power Shortform DIN-Rail	Download
MTM Power Shortform IP67 Power Supplies	Download
MTM Power Shortform Transportation	Download

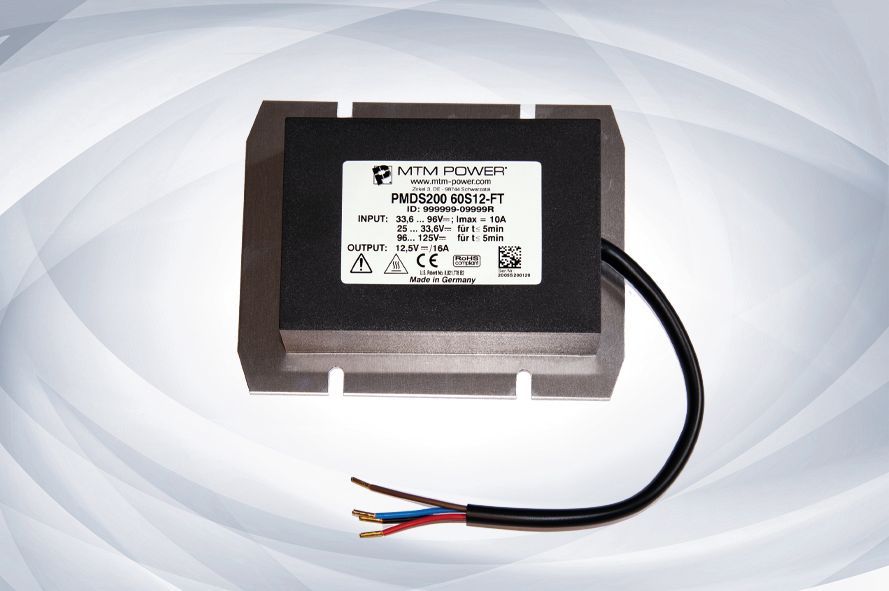

DC/DC Converter PMDS200-FT for Vehicle Technology

MTM Power has expanded its range of DC/DC converters with a new series that is tailor-made to meet the requirements in vehicle technology. Highest quality and safety are of particular importance when using power supplies in these applications. As a link between the supply system and the electronic subsystems, extremely high demands are placed on them with regard to their reliability. Due to the good price performance ratio and the excellent technical data, these converters, though, are increasingly used in stationary and industrial applications.

The new PMDS200-FT series can be flexibly used. The nominal input voltages are 48 V and 80 V. The existing input filter protects the devices against the typical transients occurring in on-board electrical systems. The standard output voltages are 12 V and 24 V. Other voltages, e.g. end-of-charge voltages for lead-acid batteries can be realised on request.

The low Ripple & Noise values combined with a high output voltage constant guarantee reliable operation of all connected consumers. Other decisive features are short-circuit resistance, transient protection, the insulation resistance of 1.18 kVAC prim.-sec. and a wide temperature range -35 ... 70 ° C (85 ° C on request).

The PMDS200-FT are designed in a plastic case with an aluminium base plate. They show a compact design (145 x 115 x 38 mm). The thermal concept of these vacuum encapsulated DC/DC converters provides an optimised heat dissipation of all power semiconductors by thermal coupling to the base plate. The encapsulated design allows installation on vehicles without suspension or without pneumatic tires with the highest shock and vibration stresses. The connection is made by cable, suitable plugs can be attached on customer request. The devices are CE-compliant and prepared for protection class 2.

100 W Switching Power Supplies for Industrial Applications

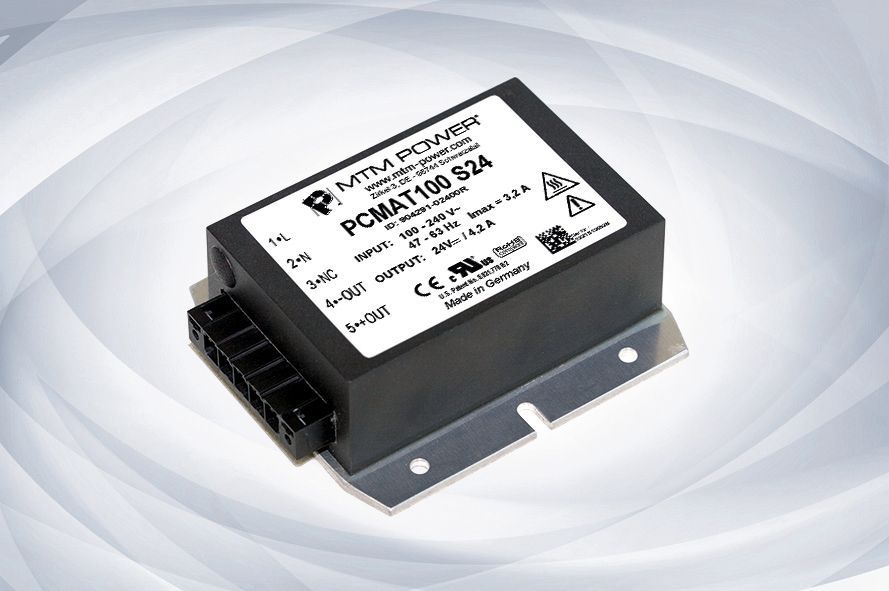

Charcroft Electronics’ franchised partner MTM Power® introduce the PCMAT100 S24, a new generation of AC/DC modules which can be installed as a decentralised power supply for industrial applications. This addition enables Charcroft to offer a more complete solution for its industrial customers.

As industrial compact power supply with wide input range, the 100 W module is designed for direct connection to the main power supply network and certified in accordance to DIN EN 62 368-1 / UL 62 368. The design of the insulation coordination to the requirements of the overvoltage category OV3 allows the use in applications with transients, such as the electric engineering.

With appropriate thermal connection and contact cooling via the base plate, a 24 VDC constant voltage is generated in the working temperature range of -40 ... + 70 ° C. Due to the rugged design in BPC technology, the thermal losses are dissipated specifically via the mounting plate while increasing the life-time of the devices at the same time. The circuit concept used is easily modifiable, so that further output voltages are relatively easy to realise if required.

The PCMAT100 has an efficiency of 90% and is resistant against shock and vibration due to the well-proven encapsulation technology and its extremely rugged design. The vacuum encapsulated (EP 1 987 708, U.S. Patent No. 8,821,778 B2) power supplies offer reliable protection against condensation, conductive dust and other environmental conditions. They are connected via industrial connectors which meet the demands concerning vibration resistance, reduced wiring time and being maintenance-free and thus the use as a plug-and-play solution in sensitive electronic sub-systems is possible.

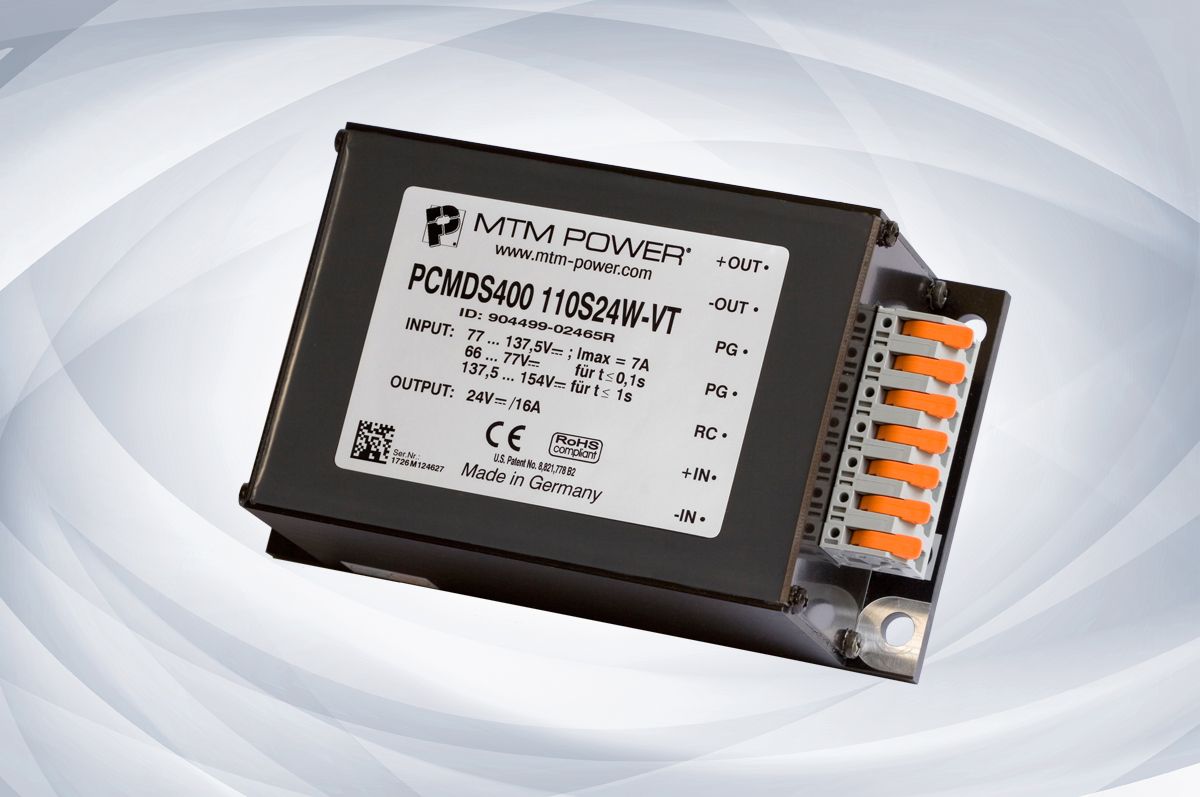

PCMDS400 DC/DC converter

DC/DC Converters with 400 W

MTM Power for the first time presents at the InnoTrans 2018: New DC/DC Converters with 400 W.

For years, MTM Power®'s series PCMD400 has been a well-proven converter series, especially designed for applications in vehicle and railway technology as well as in rugged industrial markets. With a complete redesign of this series MTM Power® provides for the frist time– with the new PCMDS400 series – converters using state-of-the-art technology, which at the same time fulfil all applicable standards for the different applications in Berlin (Hall 17, Booth 207) at the InnoTrans 2018. On top, the DC/DC converters now offer connection via push-in cage clamp connectors.

The devices operate according to the push-pull principle; i. e. the input dc-voltage is chopped by two push-pull working transistors with a frequency of approx. 70 kHz. With the help of a transformer and a secondary linear choke, a galvanically isolated output voltage of 24 V is produced which is adjusted by pulse-width modulation according to the current mode principle. The used push-pull topology allows wide input voltage ranges with high efficiencies. The series PCMDS400 is available with an input voltage of 110 VDC. The dimensions of the devices which are available in an aluminium case are 150 x 86 x 55 mm (length x width x height). Due to this compact design, they are also suitable for applications where only little space is available. The converters need no ground load and short-circuit protected by primary and secondary power limitation. The devices have got an "Output Voltage OK" signal as potential-free contact as well as remote control to place the converter in a standby mode with the lowest power consumption.

The maintenance free converters are vacuum potted (EP 1 987 708, U.S. Patent No. 8,821,778 B2) and offer reliable protection against condensation, conductive dust and other environmental conditions. Further features are a mechanically and electrically rugged design using SMD-technology and an automatic piece-by-piece test. To ensure a smooth operation, it is necessary to mount the converters on a heat-dissipating surface. Alternatively, a version with heat sink (156.6 x 162 x 55 mm) is available.

PMD5UD 6kV Industrial DC/DC Converter with 6kV Isolation Voltage

MTM Power GmbH, the specialist for individual power supplies, offers in its extensive program of standard industrial converters a type in a DIL 24 case with an output power of 5 to 6 watts. Outstanding feature is the isolation voltage of 6,0 kV.

Besides their compact design the PMD5UD-6kV converters are characterised by a 4:1 ultra wide input range. The PMD5UD-6kV is available with a nominal input voltage of 24VDC (9…36VDC) or 48VDC (18…72VDC) and output voltages of 5V, 12V or ±12V, ±15V. They are working at a temperature range of -40…+71°C and the transient response time is <500μs. They have a high efficiency up to 85% and are built in a non-conductive black plastic case.

Further technical features are low ripple & noise, an internal input π-filter, undervoltage lockout and continuous short circuit protection.

AC/DC Switching Power Supply Series PCMAT150 with BPC-Technology

IP67-AC/DC-Modules

19" Plug-In Unit with 150W for Railway Applications

Based on the PCMDS150, especially designed and already well-proven for applications in vehicle and railway technology, MTM Power offers now a 24 Vout version as a 19" plug-in unit.

A special feature of the PCMDS19 150 is the connector on the front plate where both input and output voltage can be connected. This connector is of course suitable for railway applications. The converter is available with a wide input range of 50,4…154 VDC for the battery voltage of 110 VDC acc. to EN 50 155 and an isolation of 2.2 kVAC. The dimensions are 178.5 x 70.8 x 128.4 mm (length x wide x height).

The thermoselective vacuum encapsulation (EP 1 987 708, U.S. Patent No. 8,821,778 B2) guarantees uniform heat dissipation within the module as well as excellent resistance against environmental influences such as shock, vibration and humidity. In addition, the converter is cooled via the installed heat sink.

The device needs no ground load and is short-circuit protected by primary and secondary power limiting. The maintenance-free converter can be operated in parallel, is prepared for the use in devices with protection class II and can be switched into an energy-saving stand-by operation mode by a remote control input. It shows a mechanically and electrically rugged design using SMD technology and undergoes an automatic piece-by-piece test.

Press Release - Series PCMDS80 as Base Plate or Head Sink Version

The DC/DC converters PCMDS80 from MTM Power® are specially designed as decentralised power supplies in vehicles and for supplying closed sub-systems in rolling stock applications. They are available with three wide input ranges thus enables the use of the converters on batteries with 24 to 100V acc. EN 50 155. The converters are also suitable for use in industrial and telecommunication applications.

The PCMDS80 are available with 80 W output power and operate according to the single transistor forward converter topology with a frequency of 50 kHz. With the help of a transformer and a secondary linear choke, a galvanically isolated output voltage (12V; 13.8V; 24V; 27.6V or 48V) is produced which is adjusted by pulse-width modulation according to the current mode principle. The devices can be operated in a temperature range of -4o to +70°C without derating and have an efficiency of up to 88%.

The dimensions of the base plate version are 119 x 100 x 40 mm. Due to the rugged design with contact-cooling (BPC technology), it is possible to reduce the power loss via heat dissipation through the mounting plate while increasing the life-time of the devices at the same time. In addition a heat sink version with 119 x 115 x 65 mm (length x width x height) is available. The thermoselective vacuum encapsulation (EP 1 987 708, U.S. Patent No. 8,821,778 B2) guarantees homogeneous heat dissipation within the modules as well as an excellent resistance against environmental influences such as shock, vibration and humidity. The converters need no ground load and are short-circuit protected by primary and secondary power limiting. They are maintenance-free, prepared for the use in devices with Protection Class II and fulfil the fire protection directive EN 45 545-2.

PCMDS150 WK IP65

URC Series from MTM with 50W & 75W and 10:1 Input Range

Absolutely reliable: Special power supply with ultra wide input range

MTM Power® GmbH, the specialist for high quality power supplies, offers in its program the DC/DC converters series URC for rail applications. They have been designed as power supplies for the use in vehicles, particularly for railway applications. The series is available with both 50 W & 75 W. Due to the ultra wide input range of 12,5…154,0vDC, the converters can be operated at all usual battery voltages (24/36/48/60/72/110 VDC) acc. to EN 50 155 in railway vehicles and in stationary applications.

They are available with the single outputs 5,1VDC, 12 VDC and 24VDC. The converters can be used as a 19" plug-in or for wall mounting both to be connected via a H15 connector and can be switched on and off by the enable input. Further features of the URC series are input and output voltage monitoring, high temperature range, high reliability and long life.
