KEMET's complete line of power film and paper capacitors, available in both surface mount and through-hole form factors, are designed for use in all types of electronic equipment including power and alternative energy, industrial, telecommunications, automotive, military, medical and consumer electronics applications.
Technical Resources
| Technical Resource | Download |
|---|---|
| Film Capacitors Through-Hole Catalogue | Download |
| KEMET Film Catalogue | Download |
| KEMET Product Selection Guide | Download |
| Power Electronics Film Capacitors Catalogue | Download |
| KEMET Application Guide | Download |
| Automotive Capacitors Brochure | Download |
| Capacitors for DC Applications | Download |
| Capacitors for Power Electronics | Download |
| DC Link Capacitor Selection Guide – Variable Frequency Drive Components | Download |
| High-Temperature Capacitor Selection Guide | Download |
| High-Voltage Capacitor Selection Guide | Download |
| High-Voltage Ceramic Capacitor Solutions (Trifold) | Download |
| Industrial Capacitor Selection Guide | Download |
| Electronic Components Selection Guide | Download |
| Product Overview | Download |
| New Components | Download |
| Safety Rated EMI Filtering Capacitor Selection Guide | Download |
| Solid Electrolytic Capacitors for High-Reliability Applications | Download |
| Space Avionics & Defense Capacitor Selection Guide | Download |
Product Ranges
C4AK
Overview
The C4AK capacitor is a new polypropylene material metallized film capacitor with a rectangular, plastic box-typede sign(black colour)filled with resin, and uses 2 tinned wires.
Automotive grade devices meet the demanding Automotive Electronics Council's AEC-Q200 qualification requirements with longer life at 125°C (higher voltage derated) and 135°C.
Typical applications include DC filtering, DC link, power electronics,energy storage,renewable energy grid interface, motor drives, and automotive applications.
Benefits:
- High voltage & long life at 125°C
- Voltage derated at 135°C
- Self-healing
- Low loss
- Low ESL
- Low profile dimensions available under request
- High ripple current
- High dV/dt
- High capacitance density
- High contact reliability
- Suitable for high frequency applications
- Automotive Grades (AEC-Q200)
Product Documentation

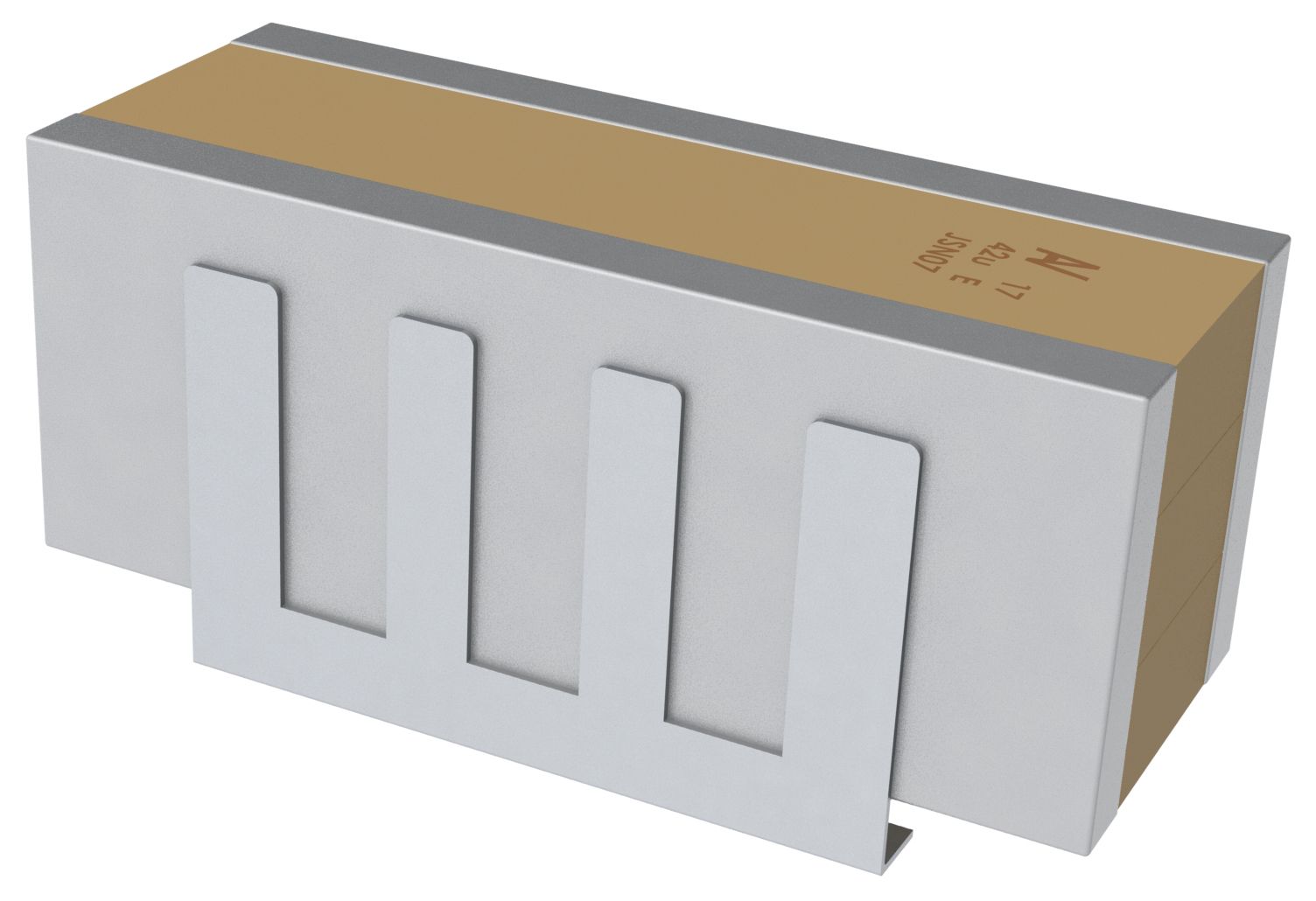

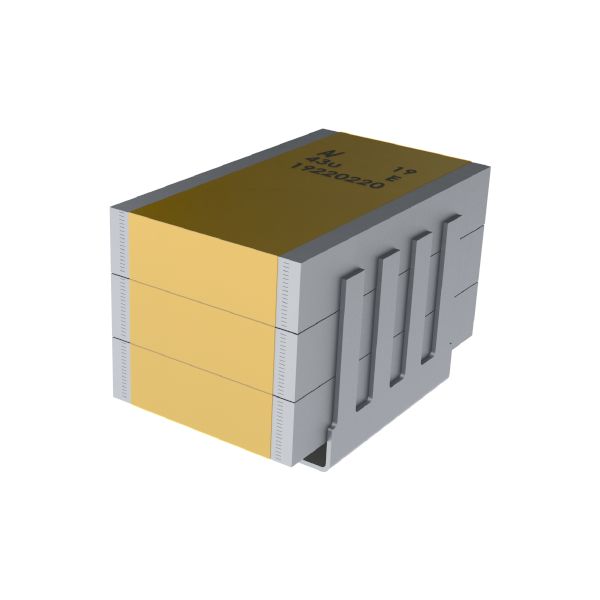

JSN stacked SMD Chip Film Capacitor
JSN is a jumbo stacked, naked metallized polyester film capacitor with flat terminations. AEC-Q200 qualification pending.
Applications:
- High-frequency SMPS
- DC/DC converters
- AC/DC converters
- Input/output filter in power supplies
- DC link
- Industrial
- Automotive SMPS
- Inverters
Benefits:
- Rated voltage: 63 – 250 VDC
- Rated voltage: 40 – 160 VAC
- Capacitance range: 5.6 – 82 µF
- Capacitance tolerance: ±10%, ±20%
- Climatic category: 55/125/56
- RoHS compliant and lead-free terminations
- Operating temperature range of –55°C to +125°C
- Automotive (AEC-Q200) qualification pending
- Low ESR and ESL (high frequency applications)
- No piezoelectric effect
- No DC bias effect in capacitance drop and aging
- Nonpolarized construction (low self-heating in AC filtering applications)
- Inherent self-healing and elasticity properties
Product Documentation

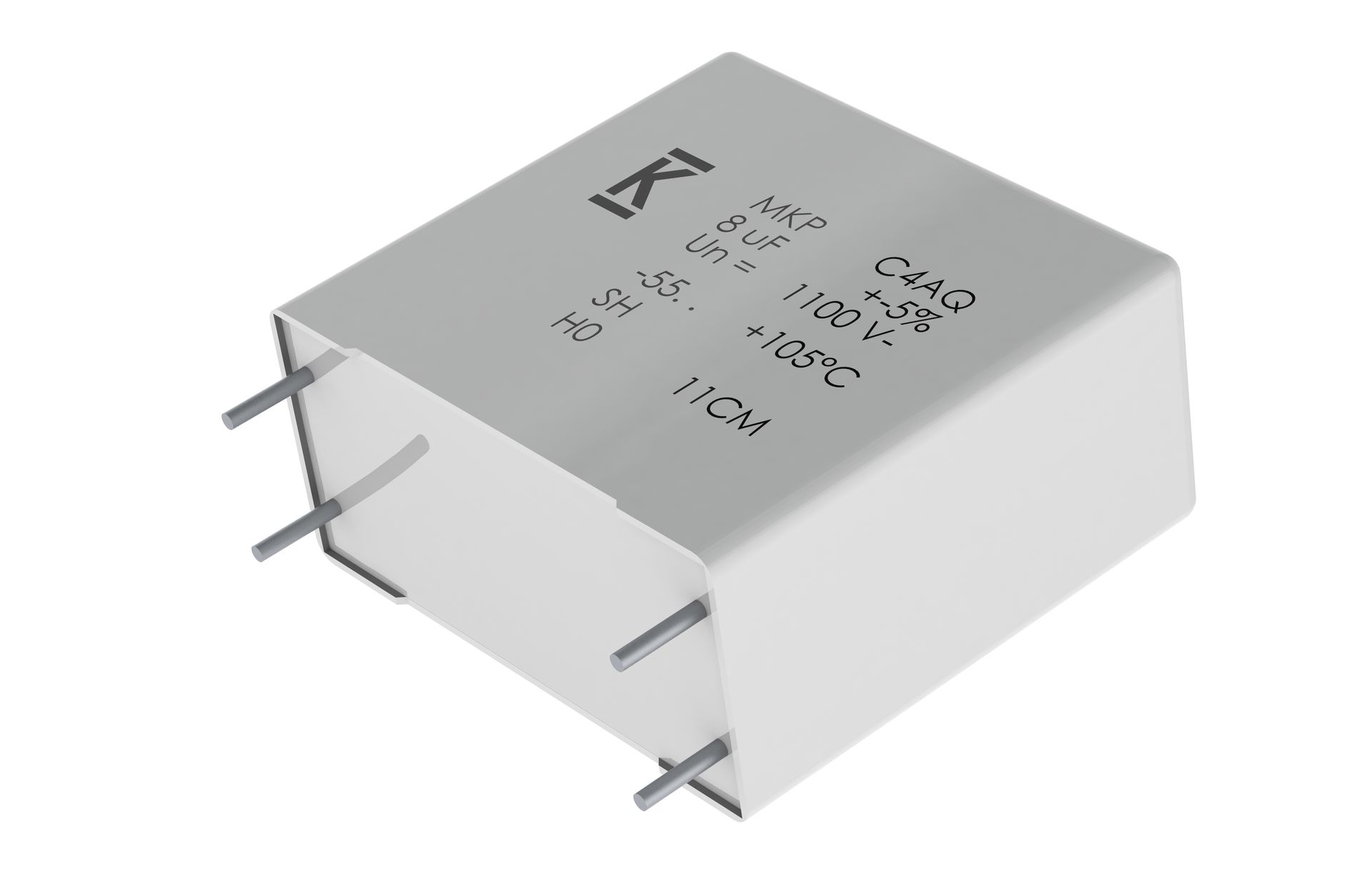

Power Film Capacitors C4AQ Automotive Grade for DC Link & PCB Applications
Overview
The C4AQ is a polypropylene metallized film with a rectangular plastic box-type design, filled with resin and 2 or 4 tinned copper wires.
Applications:
- Typical applications include DC filtering and energy storage
- Power supplies
- Industrial
- Automotive
Product Documentation
C4AF, Radial, 2 or 4 Leads, 250 – 400 VAC, for Harsh Environment AC Filtering (Automotive Grade)
Overview
C4AF are polypropylene metallized film capacitors that are rectangular shape, with a plastic box-type design (white or grey in color), filled with resin and have 2 or 4 tinned copper wires. These capacitors are intended to withstand harsh environmental conditions. Automotive grade devices meet the demanding Automotive Electronics Council's AEC–Q200 qualification requirements.
Applications
Typical applications include clamping, AC and harmonic filtering in UPS systems, motor drives, renewable energy, and automotive systems.
Benefits:
- Self-healing
- Low losses
- High ripple current
- High contact reliability
- Optimized AC voltage performance
- Suitable for high frequency applications
- Able to withstand harsh environmental conditions
- Automotive grades (AEC–Q200)
Product Documentation

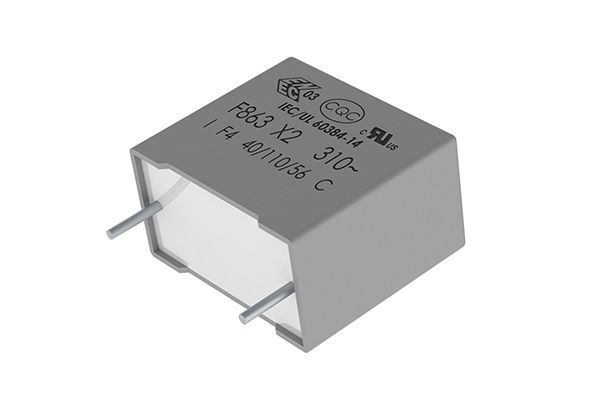

F863 Metallized Polypropylene Film for Harsh Environmental Conditions, Class X2, 310 VAC (Automotive Grade)
The F863 is constructed of metallized polypropylene film, encapsulated with self-extinguishing resin in a box material recognized by UL 94 V-0. The F863 is ideal for harsh environmental conditions and meets the demanding Automotive Electronics Council's AEC-Q200 qualification requirements. Applications Typical applications include parallel connection and in series with the mains for indoor application, capacitive power supplies with special emphasis in automotive applications for severe ambient conditions.
Benefits:
- Approvals: ENEC, UL, cUL, CQC
- Rated voltage: 310VAC 50/60Hz
- Capacitance range: 0.1 - 10.0±F
- Lead spacing: 15.0 - 37.5mm
- Capacitance tolerance: ±20%, ±10%
- Tape and reel in accordance with IEC 60286-2
- RoHS Compliant and lead-free terminations
- Operating temperature range of −40°C to +110°C
- 100% screening factory test at 1,900 VDC
- Qualification based on AEC-Q200 guidelines
AC Line EMI Capacitors (X & Y Capacitors) & RC Networks
KEMET offers a series for every voltage with worldwide safety agency approvals. Four different dielectrics are offered with radial leads, as well as a surface mount Y capacitor.
AC Series Power Supply Capacitors
Capacitors used in series with the AC line have special requirements, especially if used outdoors. A variety of models are offered to satisfy every need.
SMD & DIL (Dual In-Line) Capacitors
A broad range of surface mount capacitors including:
- Unencapsulated chips
- Unencapsulated windings
- Encapsulated construction for superior environmental protection
The Dual In-Line film capacitors are available in both surface mount and through-hole versions.
General Purpose to 150°C
Self-healing metallized film for excellent performance and safety. Low ESR/ESL models for input and output filtering of high frequency SMPS. A series in PPS film offers C0G-like stability with a much broader range, plus a maximum operating temperature of 150°C.
Polypropylene Pulse & AC
For pulse, high frequency AC and audio applications. Excellent frequency response, stability and very low dielectric absorption also make polypropylene an excellent choice for timing, filtering, integrator and sample and hold applications.
- Single metallized
- Double metallized
- Film/foil
Power & AC Film Capacitors
KEMET offers a wide product range for IGBT and other snubbing, DC link and filtering, AC filtering, power factor correction and motor run applications. Models are available in plastic boxes, plastic cans and aluminum cans. KEMET also offers customized DC link capacitors for hybrid and electric vehicles, alternative energy, power generation and industrial applications.
High Voltage RC Transient Suppression
Excellent for transient suppression (snubbing) of motors, switches, and relays either on the AC line or high voltage DC. An X2 safety agency rated series is available, as well as long, flexible leads on some models.
Low Voltage EMI / Transient Suppression
Excellent for suppression of EMI or transients on motors or other low voltage devices. Contains a film capacitor and one of the following in one compact radial device:
- Suppression diodes
- Varistor
- Low ESL ceramic capacitor for excellent frequency response across the spectrum
