KEMET offers a comprehensive line of surface mount and through-hole devices which can be utilized in a wide variety of computer, telecommunications, automotive, military, medical and consumer electronics. Primary applications include decoupling, filtering, bypassing and smoothing. Offering one of the broadest product portfolios of ceramic capacitors in the industry, it can provide customers the right combination of dielectric, termination system, form factor and screening.
Technical Resources
| Technical Resource | Download |
|---|---|
| KEMET Product Selection Guide | Download |
| Why Use Higher Rated Voltage X5R Parts | Download |
| Defence & Aerospace Catalogue | Download |
| COTS for Higher Reliability Applications (X7R 6.3V–250VDC) | Download |
| KEMET Application Guide | Download |
| Automotive Capacitors Brochure | Download |
| Capacitors for DC Applications | Download |
| Capacitors for Power Electronics | Download |
| DC Link Capacitor Selection Guide – Variable Frequency Drive Components | Download |
| High-Temperature Capacitor Selection Guide | Download |
| High-Voltage Capacitor Selection Guide | Download |
| High-Voltage Ceramic Capacitor Solutions (Trifold) | Download |
| Industrial Capacitor Selection Guide | Download |
| Electronic Components Selection Guide | Download |
| Product Overview | Download |
| New Components | Download |
| Safety Rated EMI Filtering Capacitor Selection Guide | Download |
| Solid Electrolytic Capacitors for High-Reliability Applications | Download |
Product Ranges

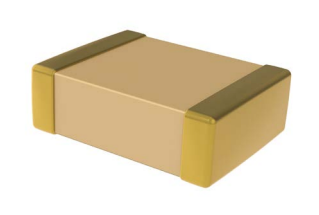

C0G High Temperature 260°C SMD
KEMET’s C0G High Temperature 260°C SMD Multilayer Ceramic Capacitors (MLCCs) are constructed from a robust and proprietary C0G/NP0 base metal electrode (BME) dielectric system that offers industry-leading performance at extreme temperatures.
These devices are specifically designed for applications in harsh environmental conditions such as downhole oil exploration, industrial high temperature electronics, geothermal, and aerospace which require capacitors that are robust and reliable at extreme temperatures such as 260°C. KEMET’s C0G dielectric exhibits no change in capacitance with respect to time and voltage and boasts a negligible change in capacitance with reference to ambient temperature.
KEMET’s C0G High Temperature 260°C SMD also incorporates a gold (Au) termination finish providing a clean solderable surface that can withstand the most extreme environments. These devices are Lead (Pb)-Free, RoHS, and REACH compliant without the need for any exemptions.
Benefits
- -55°C to +260°C operating temperature range
- Lead (Pb)-Free, RoHS and REACH compliant
- EIA 0603, 0805, 1206, and 1210 case sizes
- DC voltage ratings of 10V, 16V, 25V, 50V, and 100V
- Capacitance offerings ranging from 0.5pF up to 15nF
- Gold (Au) termination finish
- Available capacitance tolerances of ±0.10pF, ±0.25pF, ±0.5pF, ±1%, ±2%, ±5%, ±10% or ±20%
- Extremely low ESR and ESL
- High thermal stability
- High ripple current capability
- No capacitance change with respect to applied rated DC voltage
- Negligible capacitance change with respect to temperature from -55°C to +260°C
- No capacitance decay with time
Applications
- Downhole oil exploration
- Industrial high temperature electronics/sensors
- Geothermal
- Aerospace
- Decoupling, bypass
- Filtering
- Transient voltage suppression
Product Documentation
Surface Mount Safety Certified Ceramic Capacitors
KEMET’s New Surface Mount Safety Certified Ceramic Capacitors Provide Solutions for Space Constrained Mains Powered Applications
New devices offer smaller form factors to save space and simplify manufacturing versus competing leaded devices in AC line filtering applications.
KEMET has launched a new range of surface mount device (SMD) safety certified multilayer ceramic capacitors (MLCCs) for use in mains powered applications. The CAS series addresses widespread demand for miniaturization without compromising performance by offering higher capacitance, smaller overall size, and simplified assembly versus existing leaded disc devices, which represent the majority of safety-certified ceramic capacitors currently on the market.
According to market research*, the overall power supply sector is expected to grow to US $34.92 billion by 2023, at a CAGR of 6.7% from 2018 to 2023. Within this, AC/DC power conversion is considered the largest and fastest growing type of power supply owing to its increasingly wide range of uses and applications. KEMET’s CAS series of SMD MLCCs offers important design and production benefits versus leaded disc devices for AC line filtering in this significant and expanding market.
To satisfy industry and consumer demand for portable solutions, PCB real estate for electronics and power delivery systems continues to shrink as designers put more functionality in smaller spaces. Commonly used safety certified leaded disc components are bulky compared with KEMET’s CAS series SMD MLCCs and are often not suitable for applications with restricted spaces in which filtering circuitry needs to be placed. Leaded disc devices also require pin-through installation into PCBs, a process that is not compatible with standard automated reflow profiles and therefore can result in additional production costs.
Filtering is important in mains powered products to manage unwanted transients, such as high frequency noise in both line-to-line (Class X) and line-to-ground (Class Y) applications. Safety certified capacitors are used in a wide variety of applications, such as power adapters for mobile devices, industrial power distribution, and electric vehicle power inverters.
“Until now, safety certified capacitor technology has not kept pace with advances in MLCC technology,” said Reggie Phillips, KEMET Senior Product Manager. “Our new CAS range allows engineers to place the essential mains-connected filtering capacitors into smaller spaces, thereby reducing board size. For manufacturing professionals, the benefit is that the new devices are compatible with standard reflow processes, eliminating an additional step in the manufacturing process.”
KONNEKT U2J for High-Efficiency, High-Density Power Applications (Commercial Grade)
Overview
KEMET's U2J KONNEKT surface mount capacitors are designed for high-efficiency and high-density power applications. KONNEKT utilizes an innovative Transient Liquid Phase Sintering (TLPS) material to create a leadless multi-chip solution. When combined with KEMET’s ultrastable U2J dielectric, KONNEKT enables a low-loss, lowinductance package capable of handling extremely high ripple currents in the hundreds of kilohertz. U2J is an extremely stable Class I dielectric material that exhibits a negligible shift in capacitance with respect to voltage and a predictable and linear change in capacitance with reference to ambient temperature, with minimal aging effect. Capacitance change is limited to –750 ±120 ppm/°C from –55°C to +125°C. U2J KONNEKT can also be mounted in a low-loss orientation to further increasing its power handling capability. The low-loss orientation lowers ESR (Effective Series Resistance) and ESL (Effective Series Inductance) which increases ripple current handling capability.
Benefits:
- Extremely high-power density and ripple current capability
- Extremely low equivalent series resistance (ESR)
- Extremely low equivalent series inductance (ESL)
- Operating temperature range of -55°C to +125°C
- No capacitance shift with voltage
- Low noise
- Surface mountable using standard MLCC reflow profiles
- Low-loss orientation option for higher current handling capability
- RoHS compliant and Pb-free
Applications:
- Wide bandgap (WBG), silicon carbide (SiC) and gallium nitride (GaN) systems
- Data centers
- LLC resonant converters
- Switched tank converters
- Wireless charging systems
- Photovoltaic systems
- Power converters
- Inverters
- DC link
- Snubber
Product Documentation

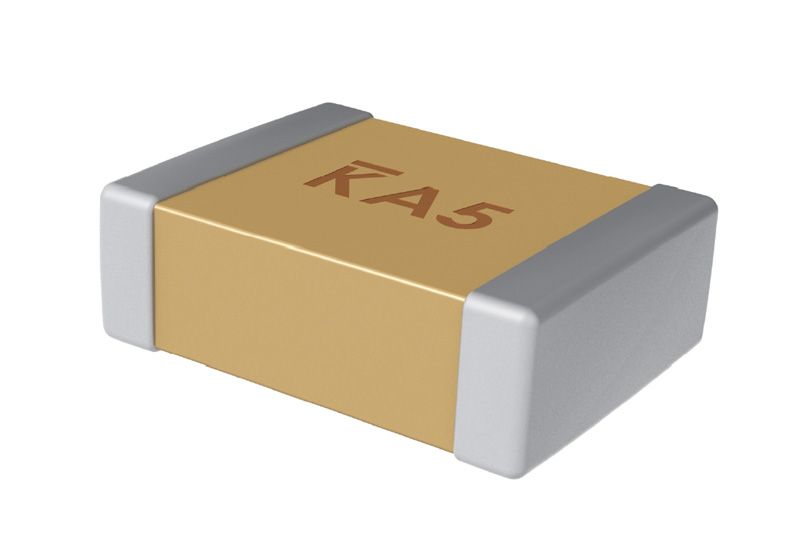

High Reliability Surface Mount Capacitors, MIL-PRF-32535, 4 – 200 VDC (C0G and BP Dielectrics)
Overview
The KEMET MIL-PRF-32535 C0G and BP surface mount capacitors are designed, tested and screened to meet demanding high reliability defense and aerospace applications. MIL-PRF-32535 is Defense Logistics Agency's (DLA) first capacitor specification for defense and aerospace that capitalizes on industry leading base metal electrode (BME) technology. Qualified under performance specification MIL-PRF-32535 and QPL listed, this series meets or exceeds the requirements outlined by DLA and is currently available in M (standard reliability) and T (high reliability) product levels. Driven by the demand for higher capacitance and smaller case size MLCCs in high reliability applications, KEMET’s MIL-PRF-32535 C0G and BP provides over an 18-fold increase in capacitance over MILPRF- 55681 and MIL-PRF-123, allowing for reduced board space and continuing the trend for miniaturization.
In addition to being the first BME C0G and BP dielectric qualified for use in defense and aerospace applications, MIL-PRF-32535 is the first DLA specification to recognize a flexible termination option. KEMET's flexible termination utilizes a pliable and conductive silver epoxy between the base metal and nickel barrier layers of the termination system. The addition of this epoxy layer inhibits the transfer of board stress to the rigid ceramic body, therefore mitigating flex cracks, which can result in a low IR or short circuit failures.
Benefits:
- Patented BME technology
- Qualified per MIL-PRF-32535 (QPL)
- Standard reliability (M Level)
- High reliability (T Level)
- Flexible termination option available
- EIA 0402, 0603, 0805, 1206, 1210, 1812, 2220 case sizes
- DC voltage ratings of 4 V, 6.3 V, 10 V, 16 V, 25 V, 50 V, 100 V and 200 V
- Capacitance offerings ranging from 1.0 pF up to 180 nF
- Available capacitance tolerances of ±0.10 pF, ±0.25 pF, ±0.5 pF, ±1%, ±2%, ±5%, and 10%
- No piezoelectric noise
Applications:
- Critical timing
- Tuning
- Circuits requiring low loss
- Circuits with pulse
- High current
- Decoupling
- Bypass
- Filtering
- Transient voltage suppression
- Blocking
- Extremely low ESR and ESL
- High ripple current capability
- Preferred capacitance solution at line frequencies and into the MHz range
- No capacitance change with respect to applied rated DC voltage
- Negligible capacitance change with respect totemperature from -55°C to +125°C
- No capacitance decay with time
- Non-polar device, minimizing installation concerns
Product Documentation
AEC-Q200 ESD Rated MLCCs
KEMET's ESD Rated Commercial and Automotive Grade surface mount capacitors in X7R and C0G dielectics are well-suited for a variety of applications where Electro Static Discharge (ESD) events during assembly or operation could damage the capacitor or the circuit. These capacitors provide the ability to design to a given ESD criteria per the Human Body Model (HBM) AEC-Q200-002 criteria. The ESD Automotive Grade series capacitors also meet the demanding Automotive Electronics Council's AEC-Q200 qualification requirements.
Applications:
- Infotainment
- Navigation systems
- Controllers
- Airbags
- Keyless entry systems
Functions:
- ESD suppression
- Circuit protection
- Bypassing
- RF filtering
- Blocking & sensing
- High current
Features & Benefits:
- ESD qualified per HBM AEC-Q200
- Extremely low ESR & ESL (C0G)
- High thermal stability
- High ripple current capability
- No capacitance change with respect to applied DC voltage
- Lead (Pb)-free, RoHS & REACH compliant
- Non-polar devices
- Flex termination available
Surface Mount Multilayer Ceramic Chip Capacitors (SMD MLCCs) Capacitors
KC-LINK for Fast Switching Semiconductor Applications DC Link, Snubber, Resonator Capacitor, 150°C (Commercial & Automotive Grade)
KEMET's KC-LINK surface mount capacitors are designed to meet the growing demand for fast switching wide bandgap (WBG) semiconductors that operate at higher voltages, temperatures, and frequencies. By utilizing KEMET's robust and proprietary C0G/NPO base metal electrode (BME) dielectric system, these capacitors are well suited for power converters, inverters, snubbers, and resonators, where high efficiency is a primary concern. With extremely low effective series resistance (ESR) and very low thermal resistance, KC-LINK capacitors can operate at very high ripple currents with no change in capacitance versus DC voltage, and negligible change in capacitance versus temperature. With an operating temperature of 150°C, these capacitors can be mounted close to fast switching semiconductors in high power density applications, which require minimal cooling.
- AEC-Q200 automotive qualified
- Very high ripple current capability
- Extremely low equivalent series resistance (ESR)
- Extremely low equivalent series inductance (ESL)
- Operating temperature range of −55°C to +150°C
- High frequency operation (> 10 MHz)
- No capacitance shift with voltage
- No piezoelectric noise
- High thermal stability
- RoHS and Pb-free
Product Documentation
MIL-PRF-32535 High Reliability Surface Mount Capacitors
Surface Mount Multilayer Ceramic Chip Capacitors (SMD MLCCs) High Reliability Surface Mount Capacitors, MIL-PRF-32535, 4 – 200 VDC (C0G and BP Dielectrics)
KEMET's MIL-PRF-32535 C0G and BP surface mount capacitors are designed, tested and screened to meet demanding high reliability defense and aerospace applications. MIL-PRF-32535 is Defense Logistics Agency's (DLAs) first capacitor specification for defense and aerospace that capitalizes on industry leading base-metal electrode (BME) technology. Qualified under performance specification MIL-PRF-32535 and QPL listed, this series meets or exceeds the requirements outlined by DLA and is currently available in M (standard reliability) and T (high reliability) product levels. Driven by the demand for higher capacitance and smaller case size MLCCs in high reliability applications, KEMET’s MIL-PRF-32535 C0G and BP series provides over an 18-fold increase in capacitance over MILPRF- 55681 and MIL-PRF-123, allowing for reduced board
Benefits:
- Patented BME technology
- Qualified per MIL-PRF-32535 (QPL)
- Standard reliability (M Level)
- High reliability (T Level)
- Flexible termination option available
- EIA 0402, 0603, 0805, 1206, 1210, 1812, and 2220 case sizes
- DC voltage ratings of 4 V, 6.3 V, 10 V, 16 V, 25 V, 50 V, 100 V, and 200 V
- Capacitance offerings ranging from 1.0 pF up to 180 nF
- Available capacitance tolerances of ±0.10 pF, ±0.25 pF, ±0.5 pF, ±1%, ±2%, ±5%, and 10%
- No piezoelectric noise
- Extremely low ESR and ESL
- High thermal stability
- High ripple current capability
- Preferred capacitance solution at line frequencies and into the MHz range
- No capacitance change with respect to applied rated DC voltage
- Negligible capacitance change with respect to temperature from −55°C to +125°C
- No capacitance decay with time
- Non-polar device, minimizing installation concerns
KEMET Power Solutions - Military Case Code (KPS-MCC)
High Temperature SMPS Ceramic Stacked Capacitors combine a robust and proprietary C0G/NPO base metal electrode (BME) dielectric system with a durable leadframe technology for high temperature and high power SMPS applications. These devices are specifically designed to withstand the demands of harsh industrial environments such as down-hole oil exploration and automotive/avionics engine compartment circuitry.
Features & Benefits:
- Straight pin lead wires for “thru-hole” mounting
- Formed “J” and “L” lead wires for surface mounting
- Operating temperature range of –55°C to +200°C
- Military Style Case Codes (MCC) 3, 4 and 5
- DC voltage ratings of 50 – 2,000V
- Capacitance offerings ranging from 4.7nF – 2.0μF
- Industrial grade
- High frequency performance and bulk capacitance in a reduced footprint
- Low ESR and ESL
- High thermal stability
- High ripple current capability
- Mechanical robustness with exceptional high temperature cycling capability
Product Documentation
C1094 Datasheet | PDF
KEMET Power Solutions (KPS-MCC) 200C | PDF
KEMET Expands Its X7R Dielectric Product Portfolio
KEMET and the Solid Capacitors Business Group (SCBG) are pleased to announce the addition of several new HiCV values to the Surface Mount Multilayer Ceramic Capacitor (SMD MLCC) portfolio in X7R dielectric Auto Grade. These new devices meet the same high performance quality standards of KEMET's ceramic capacitors, offering long component life, increased reliability and non-directional polarization for simplified component mounting. X7R dielectric devices are ideal for bypass and decoupling applications or for frequency discriminating circuits where Q and stability of capacitance characteristics are not critical.
KEMET’s X7R dielectric features an 125°C maximum operating temperature and is considered “temperature stable”. They exhibit a predictable change in capacitance with respect to time and voltage and boasts a minimal change in capacitance with reference to ambient temperature. Capacitance change is limited to ±15% from -55°C to +125°C.
| Case Size | Dielectric | Capacitance Value (µF) | Capacitance Tolerance | Rated Voltage (DC) | Voltage Codes | End Termination | Grade |
|---|---|---|---|---|---|---|---|
| 0805 | X7R | 4.7 | J, K, M | 16V, 10V & 6.3V | 4, 8, 9 | Standard & Flex | X7R Auto |
| 0805 | X7R | 10 | J, K, M | 10V & 6.3V | 8, 9 | Standard & Flex | X7R Auto |
| 1206 | X7R | 10 | J, K, M | 25V | 3 | Standard & Flex | X7R Auto |
