KEMET's complete line of aluminium electrolytic capacitors are designed for use in all types of electronic equipment including power and alternative energy, industrial, telecommunications, automotive, military, medical and consumer electronics applications.
Technical Resources
| Technical Resource | Download |
|---|---|
| ALS30 & ALS40 Ranges Terminal Screws & Washers Notification | Download |
| KEMET Product Selection Guide | Download |
| KEMET Application Guide | Download |
| Automotive Capacitors Brochure | Download |
| Capacitors for DC Applications | Download |
| Capacitors for Power Electronics | Download |
| DC Link Capacitor Selection Guide – Variable Frequency Drive Components | Download |
| High-Temperature Capacitor Selection Guide | Download |
| High-Voltage Capacitor Selection Guide | Download |
| High-Voltage Ceramic Capacitor Solutions (Trifold) | Download |
| Industrial Capacitor Selection Guide | Download |
| Electronic Components Selection Guide | Download |
| Product Overview | Download |
| New Components | Download |
| Safety Rated EMI Filtering Capacitor Selection Guide | Download |
| Solid Electrolytic Capacitors for High-Reliability Applications | Download |
| Space Avionics & Defense Capacitor Selection Guide | Download |
Product Ranges

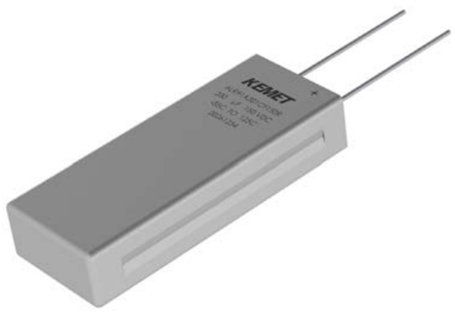

ALR91
The KEMET ALR91 is a robust aluminium rectangular design for applications requiring high temperatures, high vibration, and high reliability. It offers good capacitance results at low temperature ranges. Use at altitudes of up to 24,400 meters (80,000 feet) is possible. Rated at 125ºC, the ALR91 offers good volumetric efficiency in a shape that lends itself to stacking into modules and ease of use with a heat sink. The capacitor case is stainless steel.
Power Hold-up
- Shipboard antenna
- Radio-system power holdup
- Fighter-jet sticks-and-throttles unit
- Missile systems
- Helicopter actuator system
- Military power amplifiers
- Military power PC cards and modules
- Airliner braking-systems
- Avionics power supply designs
- Beam Radar
- Transmit/Receive module
Applications
- Military
- Aerospace
- Communications
- High Reliability
- Bulk Capacitance
Characteristics Applications
- Capacitance: 140 – 17,000 μF
- Voltage Rating: 24 – 275 VDC (ALR81) 20 – 250 VDC (ALR91)
- Stainless Steel Case
- Polyester wrap for Insulation
ALR81, 105°C
- Rated Life: 5,000 hours (Rated Voltage, Temperature, and Ripple Current)
- Operating Temperature: -55°C to 105°C
- High Vibration up to 80g with Anti-Vibration option
ALR91, 125°C
- Rated Life: 5,000 hours (Rated Voltage & Rated Temperature)
- High Reliability: MIL-level burn-in is standard in the series
- 24,400 meter altitude capability
- Operating Temperature: -55°C to 125°C
Product Documentation
ALC10S & ALN20S – Audio Electrolytic
Overview - ALC10S Series
KEMET's ALC10S Series of capacitors features improvements in general construction of the capacitors to achieve better results in audio, where fidelity of the waveshape is very important. Great attention has been paid to the construction details that can affect performance such as foil type, its connections and mechanical construction. Details of capacitance and case sizes are available in KEMET's slit foil capacitor range.
KEMET has produced the ALC10S slit foil capacitors specifically for audio applications. Its patented design eliminates circulating currents in the aluminium foils. This spurious current flow on the capacitor plates is known to occur but not apparent in most applications.
Overview - ALC10S Series
KEMET's ALN20S series of capacitors is a new generation T-Network Capacitor (TNC). The TNC is manufactured by KEMET in Portugal. In a normal capacitor unwanted resistance and inductance force the input and output together electrically, making its unwanted characteristics very critical for performance
KEMET's ALN20S capacitors are a unique T-Network Capacitor (TNC) designed specifically for audio applications. The main advantage of the TNC lies in its ability to reduce the effects of unwanted resistance and inductance placing the signal closer to the pure capacitance of the component.
ALC10S
- 2 pin snap-in
- Long life, up to 18,000 hours at +85°C (VR, IR applied)
- Slit foil technology
- Specifically designed for audio applications use only
- Capacitance Range: 10,000 μF
- Rated Voltage: 50 – 100 VDC
- Operating Temperature: −40 to +85°C
- Storage Temperature Range: −55 to +85°C
- Capacitance Tolerance: ±20%
- Shelf Life: 2,000 hours at +85°C or 30,000 hours at +40°C 0 VDC
- Leakage Current: I = 0.006 CV or 6,000 (μA, whichever is smaller)
- Standards: IEC 60384–4
ALN20S
- 4 pin snap-in
- Long life, up to 18,000 hours at +85°C (VR, IR applied)
- Slit foil technology
- Specifically designed for audio applications use only
- Capacitance Range: 10,000 μF
- Rated Voltage: 50 – 100 VDC
- Operating Temperature: −40 to +85°C
- Storage Temperature Range: −55 to +85°C
- Capacitance Tolerance: ±20% (−10/+30% where specified)
- Shelf Life: 2,000 hours at 0V +85°C, or 30,000 hours at 0V +40°C
- Leakage Current: I = 0.006 CV or 6,000 (μA, whichever is smaller)
- Standards: IEC 60384–4
Product Documentation

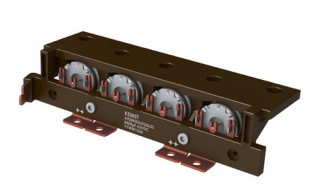

A927 & A928 KeMOD 48V Capacitor Module
Overview - A927
KEMET's A927 is an electrolytic capacitor module withoutstanding electrical performance, high ripple current, and high energy storage capabilities. This device contains a bank of PEH227 Radial Crown Aluminum Electrolytic Capacitors mounted on a copper bus bar. These assembled parts are housed by a plastic case. The A927's low ESR is the result of a low resistive electrolyte/paper system and an all-welded design. Optimal bus bar design enables a low ESL level. The A927 is suitable for use in automotive applications, thanks to its mechanical robustness. One example would be in 48V inverter applications for Mild Hybrid Electric Vehicles, especially because of its 150°C temperature rating. This modular device facilitates the integration on an application heat-sink. KEMET's automotive grade capacitors meet the demanding Automotive Electronics Council's AEC–Q200 qualification requirements.
Overview - A928
KEMET's A928 is an electrolytic capacitor module with outstanding electrical performance, high ripple current, and high energy storage capabilities. This device contains a bank of PEH228 Radial Crown Aluminum Electrolytic Capacitors mounted on a copper bus bar. These assembled parts are housed by a plastic case. The A928's low ESR is the result of a low resistive electrolyte/paper system and an all-welded design. Optimal bus bar design enables a low ESL level. The A928 is suitable for use in automotive applications, thanks to its mechanical robustness. One example would be in 48V inverter applications for Mild Hybrid Electric Vehicles, especially because of its 150°C temperature rating. This modular device facilitates the integration on an application heat-sink. KEMET's automotive grade capacitors meet the demanding Automotive Electronics Council's AEC–Q200 qualification requirements.
A927 & A928
The KEMET A928 is an electrolytic capacitor module, designed for automotive applications with extremely high demands and focused on 48V Mild Hybrid Electric Vehicle Inverters. The both have the below features.
Features
- Capacitor bank ready to fit into application
- AEC–Q200 automotive qualified
- 2,000 hours at +150°C
- Extremely high ripple current
- Up to 136 ARMS ripple current, continuous load
- ESR stability over lifetime
- Low ESL
- High vibration resistance
- Outstanding electrical performance
A927
- Up to 140 ARMS ripple current, continuous load
- Capacitance Range 6,300 – 17,000 μF
A928
- Up to 136 ARMS ripple current, continuous load
- Capacitance Range 4,200 – 11,000 μF
Product Documentation
PEH227 & PEH228
These electrolytic capacitors contain a radial crown, which allows them to be mounted in a standing position. They feature Ultra-High CV with an outstanding electrical performance and high energy storage capability, a polarized, all-welded design, tinned copper wire leads, and a negative pole connected to the case. The winding is housed in a cylindrical aluminium can with a high purity aluminium lid and a high quality rubber gasket. Low ESR is a result of a low resistive electrolyte/paper system and an all-welded design. Thanks to its mechanical robustness, these capacitors are suitable for use in mobile and aircraft installations, with operation up to +150°C. KEMET automotive grade capacitors meet the demanding AutomotiveElectronicsCouncil'sAEC–Q200qualificationrequirements.
The PEH228 and PEH227 are a new generation of Ultra-High CV radial crown electrolytic capacitors. It is designed for automotive applications with extremely high demands
Benefits
- AEC–Q200automotivequalified
- 2,000 hours at +150°C
- Ultra-High CV
- Extremely high ripple current
- Up to 27 ARMS ripple current, continuous load
- ESR stability over lifetime•High vibration resistance
- Polarized all-welded design
- Outstanding electrical performance
- Radial crown that allows mounting in a standing position
PEH227
- Capacitance Range 780 – 10,500 μF
PEH228
- Capacitance Range 520 – 7,000 μF
Product Documentation
Automotive Snap-In Aluminium Electrolytic - ALA8D (105°C)
ALA8D (105°C) capacitors are designed for automotive usage for e-mobility such as on-board chargers, inverters or wall boxes. They can withstand vibration up to 20 G in accordance with the demanding AEC-Q200 qualification.
Overview
The KEMET ALA snap-in capacitors are designed for automotive applications. They can withstand vibration up to 20 G in accordance with the demanding requirements of the Automotive Electronics Council's AEC–Q200 qualification. The ALA8D capacitance values cover a range from 200 to 620 µF and a voltage range of 400 to 500 V.
Applications
Typical applications for the ALA8D capacitor is mainly in the field of e-mobility, such as on-board chargers, inverters, or wall boxes.
Benefits
- Designed for automotive usage
- Vibration proof
- AEC–Q200
- Long life, up to 8,000 hours at +105°C (VR IR applied)
- High ripple current
- High voltage
- Excellent surge voltage capability
- PET sleeve recognized to UL: QMTR2, UL No. E358957
- Optimized designs available upon request
Product Documentation
Automotive Snap-In Aluminium Electrolytic - ALA7D (85°C)
ALA7D (85°C) capacitors are designed for automotive usage for e-mobility such as on-board chargers, inverters or wall boxes. They can withstand vibration up to 20 G in accordance with the demanding AEC-Q200 qualification.
Overview
The KEMET ALA snap-in capacitors are designed for automotive applications. They can withstand vibration up to 20 G in accordance with the demanding requirements of the Automotive Electronics Council's AEC–Q200 qualification. The ALA7D capacitance values cover a range from 240 to 820 µF and voltage ranges of 400 to 600 V.
Applications
Typical applications for ALA7D capacitors are mainly in the field of e-mobility, such as on-board chargers, inverters, or wall boxes
Benefits
- Designed for automotive usage
- Vibration proof
- AEC–Q200
- Long life, up to 15,000 hours at +85°C (Vr Ir applied)
- High ripple current
- High voltage
- Excellent surge voltage capability
- PET sleeve recognized to UL: QMTR2, UL No. E358957
- Optimized designs available upon request
Product Documentation

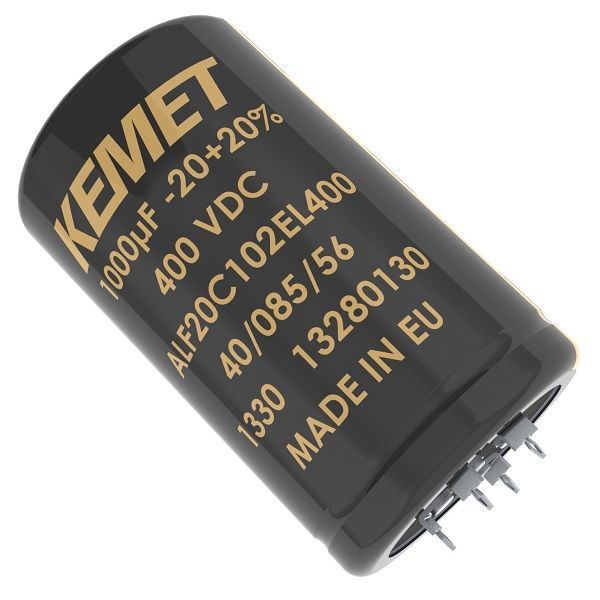

Press-Fit Aluminum Electrolytic Capacitors ALF40 and ALF20
Benefits
- Eliminates manufacturing problems of soldering onto thick PCB copper tracks which act as heat-sinks
- Eliminates fractured solder joints/cold-solder
- Removal of the solder operation allows for easy insertion after the production washing process
- Ability to exchange components in the field
- Custom optimization of construction available for application-specific balance between required life, temperature, ripple current and physical size
Applications
- Frequency converters
- Solar inverters
- Advanced energy storage systems
- Switch mode power supplies
- Other high reliability, long life applications
ALS70/ALS80 High Capacitance 85°C Screw Terminal
High Capacitance 85°C Screw Terminal Range ALS70/ALS71 series
- Compact size with High CV
- Capacitance: 300–1,300,000μF
- Voltage: 25 –550VDC
- Operating Temperature: -40°C to 85°C
- Long life, up to 20,000 hours at +85°C
- (Rated voltage and ripple current applied)
- High ripple current
- Excellent surge voltage capability
- Optimized designs available upon request
High Capacitance 105°C Screw Terminal Range ALS80/ALS81 series
- Compact size with High CV
- Capacitance: 300–1,200,000μF
- Voltage: 25–500VDC
- Operating Temperature: -40°C to 85°C
- Long life, up to 9,000 hours at +105°C
- (Rated voltage and ripple current applied)
- High ripple current
- Excellent surge voltage capability
- Optimized designs available upon request
Kemet Screw Terminals - Aluminium Electrolytic
These capacitors offer very long life in applications requiring high ripple currents, with rated temperatures up to 125°C and voltages as high as 550VDC.
KEMET can also optimize the capacitor construction to offer an application-specific balance between required life, temperature, ripple current, physical size, and cost.
Product Documentation
Kemet Axial Leads & Radial Crown - Aluminium Electrolytic
Designed specifically for demanding applications requiring very long life, high vibration resistance and high ripple current. Operating temperatures up to 150°C are available without voltage derating. Example applications include:
- Automotive power
- Industrial LED lighting
- Telecom infrastructure
Product Documentation
