About Exxelia Technologies
Exxelia Technologies (ex Eurofarad) is a designer and manufacturer of complex passive components and precision subsystems: ceramic, plastic film and mica capacitors, filters, position sensors, slip rings and precision mechanics for high technology applications: Aerospace, Defence, Medical, Space, Rail, and Oil Exploration.
Technical Resources
Product Ranges

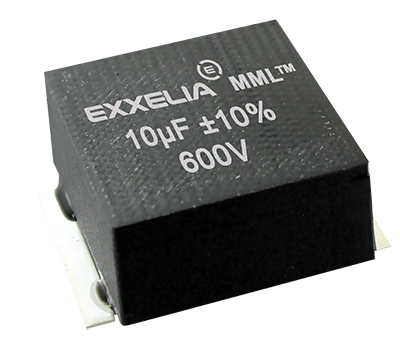

MML Capacitors
Exxelia's revolutionary MML™ ultra-high energy density Film Capacitors are a game changer in the industry due to their unparalleled energy density of 400 J/dm3. This allows for a significant reduction in size and weight in comparison to traditional Polypropylene or Polyester dielectrics, as well as an increased operating temperature of up to 140°C and protection against transient voltage.
Not only do MML™ capacitors offer a large flexibility in design, allowing for low profile configurations, but they have also been tested in actual cases for controls and DC-Links functions in aircraft applications and have shown a reduction in size and weight of about 50% compared to other film technologies.
The exceptional properties of Exxelia's new MML™ capacitors make them suitable for a wide range of applications including power supplies, DC-links, AC/DC/AC power converters, charge/discharge or power generation functions of commercial/military aircraft, satellite platforms and payloads, launchers, defibrillators, downhole tools and any other applications that require confined electronics.
Features & Benefits
- Capacitor miniaturisation: Up to 50% size reduction vs other film technologies ; matching footprint of stacked MLCC
- Lightweight: 50% lighter vs other film technologies ; 80-90% lighter than ceramic
- No capacitance derating in voltage, stable in temperature (<5% drift through the temperature range)
- Capacitance from 1μF to 1000μF
- Voltages from 50V to 1000V
- Operating Temperature -55 °C to +140 °C
- Highly customisable

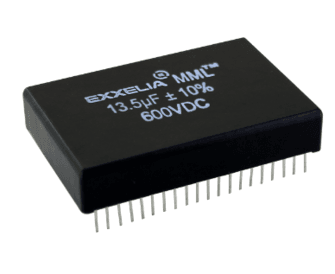

C Series
- Capacitance: 2µF > 300µF
- Voltage DC: 300V > 1000V
- Temperature: -55°C > 140°C
Product Documentation
D Series
- Capacitance: 100µF > 2400µF
- Voltage DC: 300V > 1000V
- Temperature: -55°C > 140°C
Product Documentation
D Series
- Capacitance: 1µF > 300µF
- Voltage DC: 300V > 1000V
- Temperature: -55°C > 140°C
Product Documentation
S Series
- Capacitance: 1µF > 120µF
- Voltage DC: 50V > 1000V
- Temperature: -55°C > 140°C
Product Documentation
Broadband Capacitors
Exxelia broadband capacitors show low insertion loss up to 40 GHz are perfect for high-speed up to millimetre wave applications.
Thanks to its strong experience in MLCC manufacturing, Exxelia extends its RF capacitors product offering by developing the three broadband series XBL, UBL and UBZ. Exxelia's new broadband series combines high technical performances (ultra-low insertion loss and excellent return loss over a wide bandwidth up to 40GHz), quick installation (available in standard EIA sizes compatible with SMT pick & place) and easy soldering (made of reliable ceramic material compatible to any soldering process).

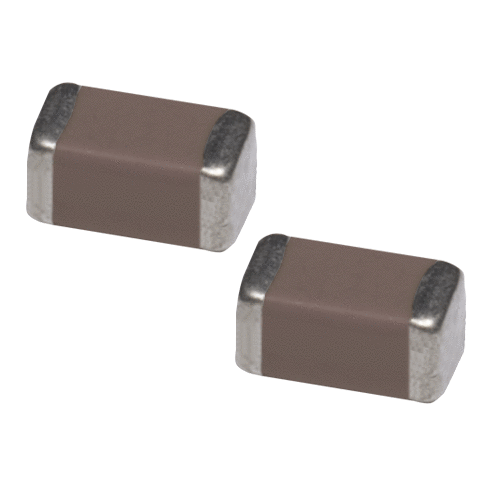

UBL Series
Exxelia broadband capacitors show low insertion loss up to 40 GHz are perfect for high-speed up to millimetre wave applications.
Description
- EIA 0402 Case size
- Capacitance: 100nF
- Low insertion loss up to 40 GHz
- RoHS Compliant
Circuit Applications
- DC Blocking, Coupling and Bypassing
Applications
- Optoelectronics / High-speed data
- Broadband test equipment & applications
- Broadband microwave / millimetre wave amplifiers and oscillators
Product Documentation

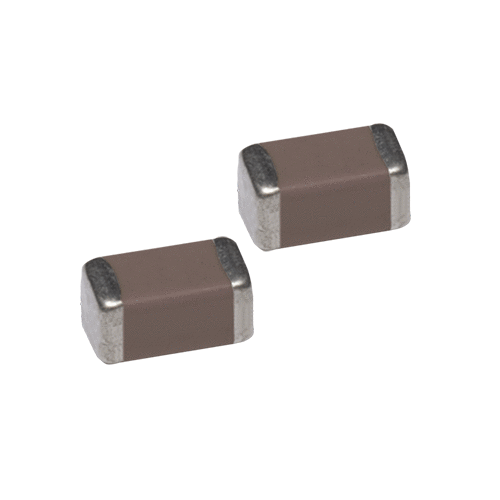

UBZ Series
Exxelia broadband capacitors show low insertion loss up to 40 GHz are perfect for high-speed up to millimetre wave applications.
Description
- EIA 0201 Case size
- Capacitance: 100nF
- Low insertion loss up to 40 GHz
- RoHS Compliant
Circuit Applications
- DC Blocking, Coupling and Bypassing
Applications
- Optoelectronics / High-speed data
- Broadband test equipment & applications
- Broadband microwave / millimetre wave amplifiers and oscillators
Product Documentation
XBL Series
Exxelia broadband capacitors show low insertion loss up to 40 GHz are perfect for high-speed up to millimetre wave applications.
Description
- EIA 0402 Case size
- Capacitance: 100nF
- Low insertion loss up to 40 GHz
- RoHS Compliant
Circuit Applications
- DC Blocking, Coupling and Bypassing
Applications
- Optoelectronics / High-speed data
- Broadband test equipment & applications
- Broadband microwave / millimetre wave amplifiers and oscillators
Product Documentation

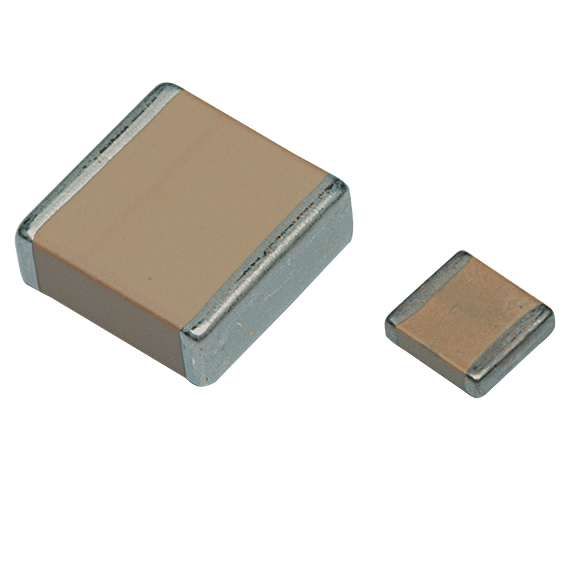

C48X dielectric: NPO and X7R advantages combined
Under working voltage, C48X dielectric provides equivalent capacitance values to an X7R material with the advantage of a very low dissipation factor (less than 5.10-4). It can also withstand very high dV/dt, up to 10kV/µs which makes it perfect for pulse and charge/discharge applications for firing units. Exxelia’s C48X capacitors, available from 200V to 5kV with EIA sizes from 1812 to 16080, are ideally suited for power applications where heat dissipation may be detrimental to performances and reliability, such as 400Hz Aircraft, Ignition systems, and Space, or as Precision/filtering capacitance in thermally challenged environment for AC or DC voltage.
Main Features
- Up to 10kV
- Excellent withstanding to charge/discharge
- Excellent stability under voltage
- C48X dielectric (-2 200 ± 500)ppm/°C
Typical Applications
- Power supplies
- Voltage multipliers
- Pulse application
Product Documentation

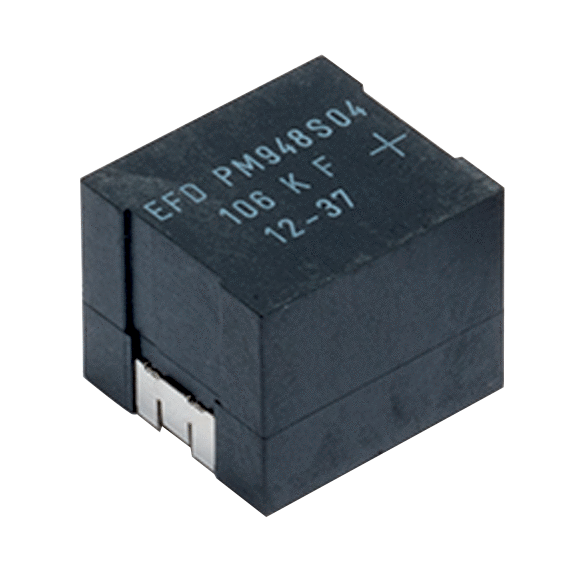

PM 948 Film Capacitors
Main Features
- Self-healing
- low inductance
- Thermoplastic case
- Epoxy resin sealed
- Surface mount device (PM 948 - PM 948 S)
- Terminations “DIL” leads (PM 948 N - PM 948 NS)
Typical Applications
- Capacitor for HF switch mode power supplies
Technical Characteristics
Dielectric
- PET
Capacitance
- Minimum : 0,022 µF
- Maximum : 47 µF
Voltage DC
- Minimum : 50 V
- Maximum : 630 V
Voltage AC
- Not supported
Temperature
- Minimum : -55 °C
- Maximum : 125 °C
Case sizes
- Lxhxe = 10,7*6*10,7 to 18,5*17*17
Terminations
- SMD
Markets
- Aerospace and Defence
- Space
- Rail
Product Documentation

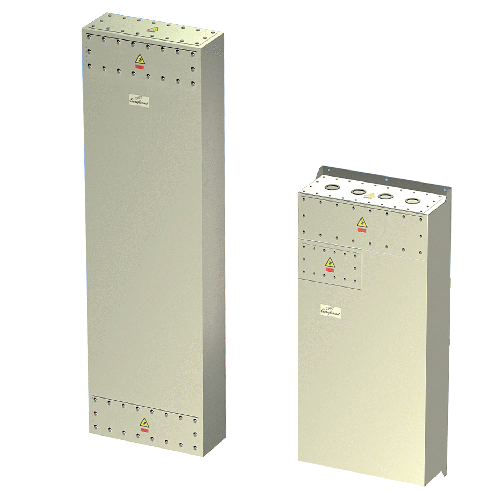

BDP Series
The smaller, lighter BDP asymmetric filters from Exxelia solve HEMP and TEMPEST requirements
Main Features
- AC protection, up to 400Hz
- Up to 80dB (300kHz)//Low leakage current
- Asymmetric design (common choke)
Typical Applications
- HEMP
- Anechoic chambers
- Faraday Cages
- Shelters
Technical Characteristics:
Current
- Up to: 1250 A
Voltage
- Minimum : 220 V
- Maximum : 400 V
Insertion Loss
- Minimum : 0 dB
- Maximum : 80 dB
Temperature
- Minimum : -40 °C
- Maximum : 55 °C
Mounting
- Feedthru
Product Documentation

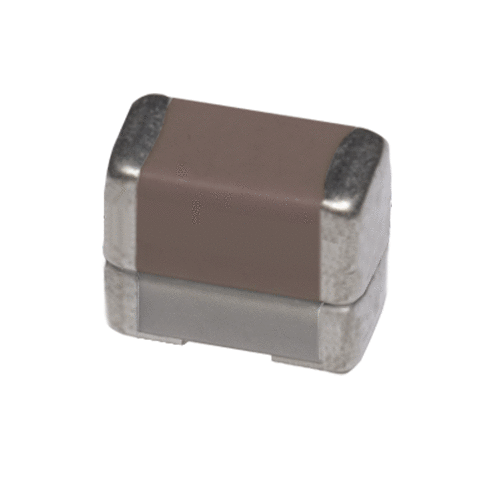

CE2X (NPO) & CN2X (X7R) 2 new ranges of high temperature ceramic chips developed by Exxelia-Eurofarad
These two new ranges are designed to:
- Withstand operating temperatures up to 220°C,
- Cover operating voltages from 16V to 100V at 20°C (5V to 25V at 220°C),
- Cover capacitance values from 1 pF to 180nF in NPO and from 100pF to 4.7μF in X7R
To meet the need of miniaturization, Exxelia-Eurofarad proposes boxes range from 2220 size to 0402 size.
These capacitors are ideal for markets such as oil exploration, in which the components must be able to endure harder and longer temperatures, or for aeronautical or defence applications.
Ceramic Capacitors
- Special capacitors
- Microwave multilayer ceramic chip capacitors
- Ceramic capacitors for H.F. switching power supplies
- High voltage ceramic capacitors
- Feed-thru ceramic capacitors
- High temperature ceramic capacitors
- Molded ceramic capacitors
- Ceramic chips capacitors
- Microwave single layer ceramic capacitors
- Custom design
- Ceramic Capacitors for Space use
Film Capacitors
- Polyester Capacitors
- Polystyrene Capacitors
- High voltage Capacitors
- Polycarbonate Capacitors
- Metallized Polycarbonate / PPS Capacitors
- Polypropylene capacitors
- Custom design
- Capacitors for high frequency switch mode power supplies
Metallized Polypropylene PP44R-PP44R5-PP44A2 Series
- Semi-conductor Protection
- Decoupling
- Current Inverters
- High Current Filtering
- Medium Frequency Tuning
Product Documentation
Exxelia PP44R PP44R5 PP44A2 Datasheet PDF
Metallized Polypropylene PP88 Series
- Protection of Thyristors
- Protection of GTO Thyristors
- Medium Frequency Tuning
Product Documentation
Metallized Polypropylene PPA-FR1 PPA-FR2 Series
- Motor run
- Fluorescence
- Compensation
Product Documentation
Exxelia PPA FR1 PPA FR2 Datasheet PDF
Metallized Polypropylene PM98, PM980 Series
- Filtering
- Energy storage
- Flash
Product Documentation
Exxelia PM98-PM980 Datasheet PDF
Mica Capacitors
- Mica SMD capacitors
- Molded Mica capacitors
- Dipped Mica capacitors
- High temperature Mica capacitors
- High voltage Mica capacitors
- Custom design products
EMI-RFI Filters
- Custom design
- Transient suppressor filters
- Multiple point feed through filters
- Surface mount filters
- T type filters
- L type filters
- C type filters
- Pi type filters
ECM Energy Filters
- EMI/RFI Feed Through Capacitor
- EMI/RFI Feed Through Filters
- EMI & Tempest Filters signals
- EMI-RFI and Tempest Filters
- EMP current generator-injector
- Custom design
- HEMP Protection Signals
- HEMP High Performance Protection Power
- HEMP standard protections
- Optoelectronic products
