About Exxelia Tantalum
Formerly Exxelia Firadec, Exxelia Tantalum has been manufacturing tantalum capacitors for over 40 years and offers solid tantalum capacitors (wire or SMD technology) and wet tantalum capacitors, which offer higher capacitance-voltage ranges and excellent high-temperature functionality. Exxelia Tantalum products can be found in applications in the aerospace, defence and space market sectors.
Technical Resources
Product Ranges

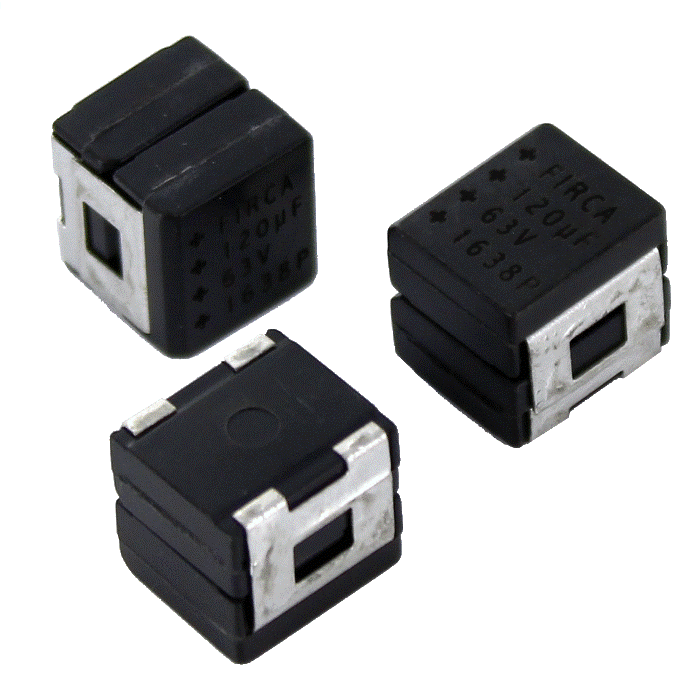

CTP42 Polymer Tantalum Capacitor
The CTP 42 polymer tantalum capacitors offer ultra low ESR and high capacitance. Featuring the assembly of 2 CTP21's for high capacitance and space saving on PCB, these capacitors are SMD and polarized.
Markets
- Aerospace
- Military & Defence
- Space
Typical Applications
- Filtering
- Power Supply
- Energy conversion
Product Documentation

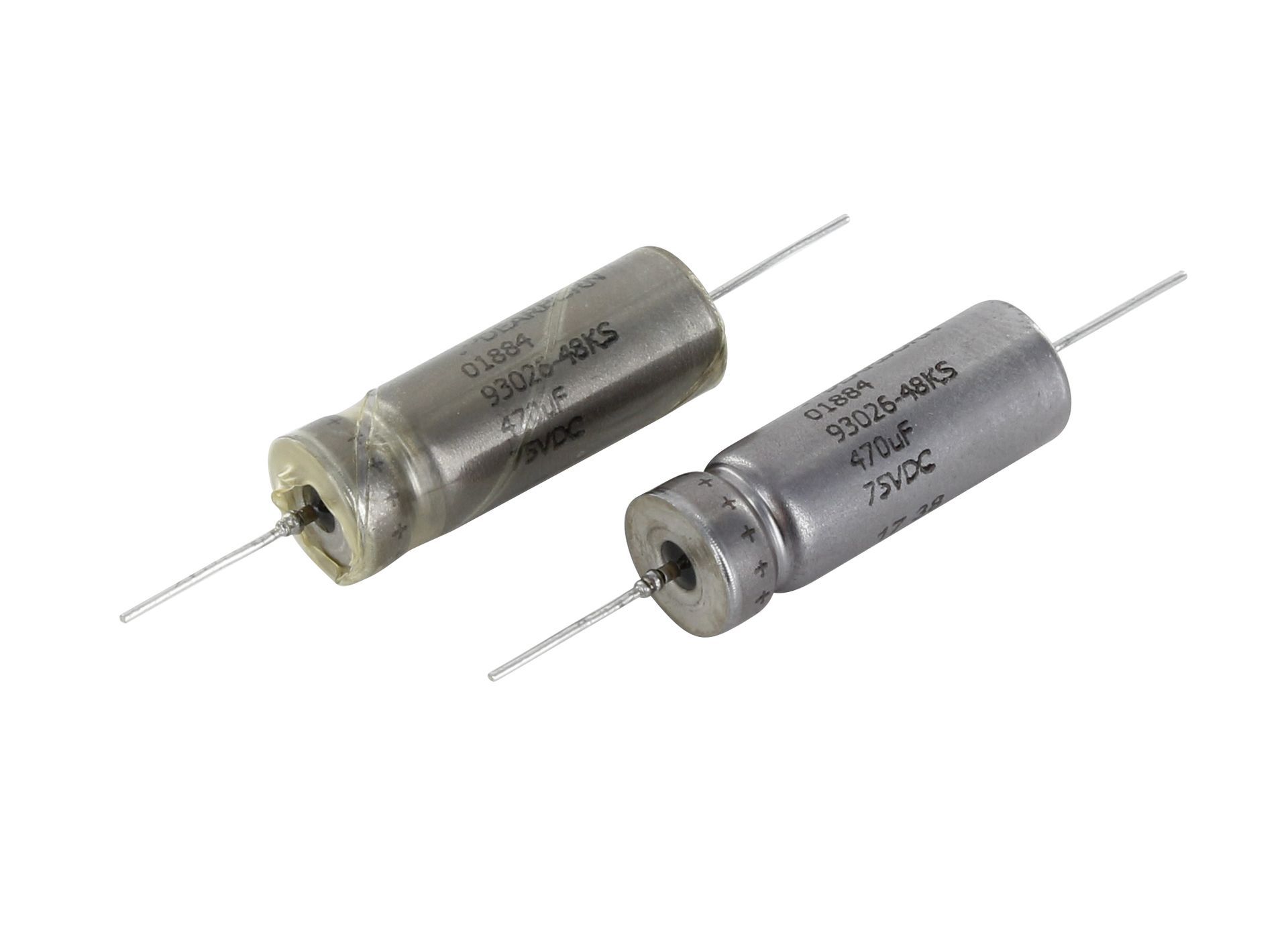

Exxelia Wet Tantalum Capacitors – DSCC 93026
Performance highlights compared to solid tantalum capacitors include more capacitance, higher ripple currents, lower ESR and lower dc-leakage current.
Application Range
- Voltage Up to 125V
Capacitance
- Minimum : 10 µF
- Maximum : 1800 µF
Applications
- Filtering
- Power Supply
- Converter
Market
- Space
- Defence
- Aerospace
Product Documentation
MIL-39006/22-Qualified Wet Tantalum Capacitors
Exxelia has received the P-Level MIL-PRF-39006/22 and MIL-PRF-39006/25 qualifications approval for its new ranges of wet tantalum capacitors.
MIL 39006/22 and MIL 39006/25 respectively equivalent to CLR79 and CLR81 types feature hermetically sealed cylindrical tantalum cases and axial leads. Both ranges are available in all cases: T1, T2 T3 and T4 with extended capacitance and voltage ratings.
The MIL39006/22 is qualified for voltages from 6V to 125V and provides from 1200µF @ 6V to 56 µF @ 125V. The ranges combine high energy density with large temperature ranges -55°C up to 125°C and are available with H vibration and shocks features.
These state-of-art MIL-qualified wet tantalum capacitors are widely used in avionics applications where high performance and extreme reliability are required. Performance highlights compared to solid tantalum capacitors include more capacitance, higher ripple currents, lower ESR and lower dc-leakage current.
MIL 39006/22 Technical Characteristics
Dielectric
- Wet Tantalum
Terminations
- Axial
Case sizes
- A B C D
Voltage DC
- Minimum : 6 V
- Maximum : 125 V
Capacitance
- Minimum : 1,7 µF
- Maximum : 1200 µF
Notes
- No special note
Temperature
- Minimum : -55 °C
- Maximum : 125 °C
Voltage AC
- Not supported
Product Documentation

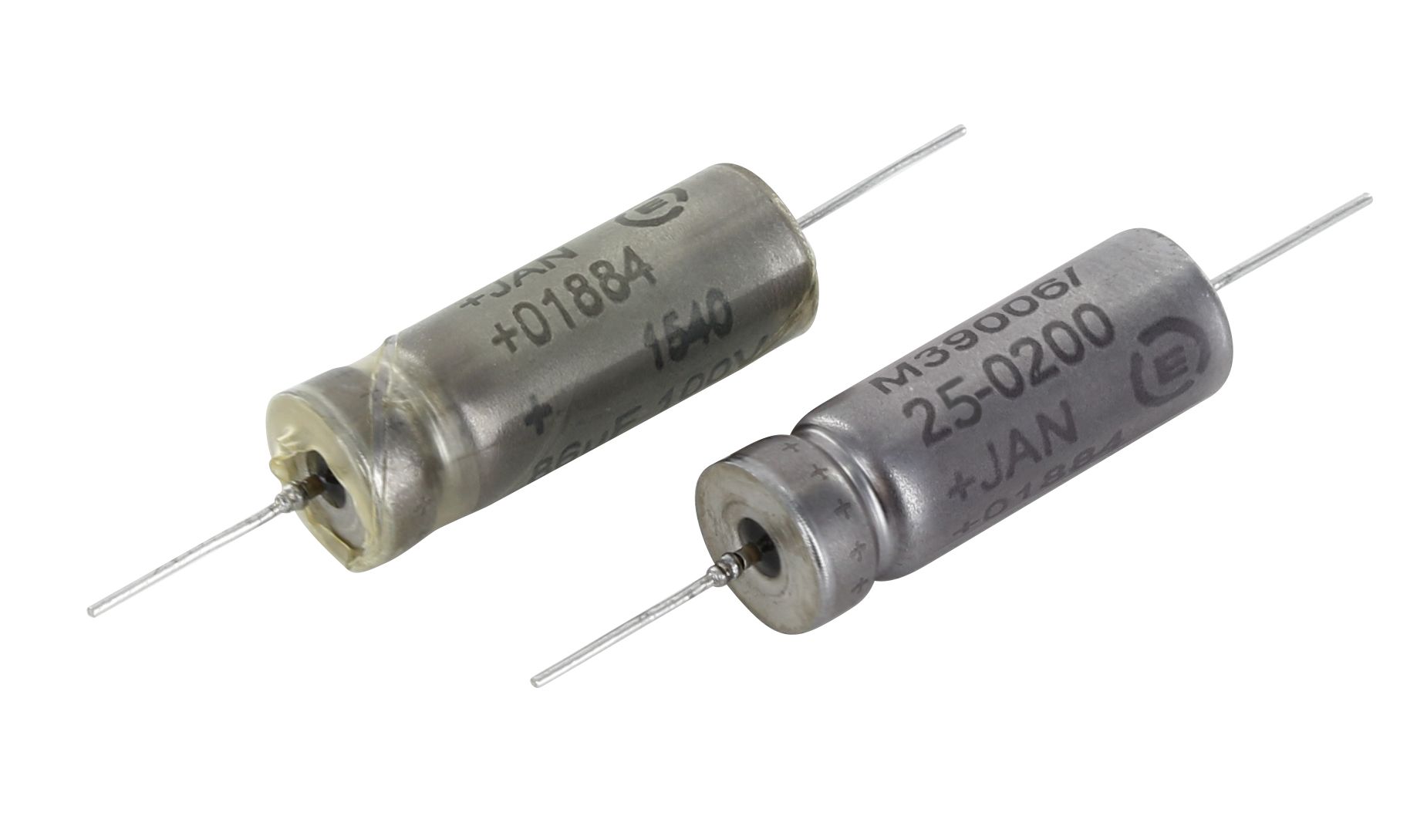

MIL 39006/25 -Qualified Wet Tantalum Capacitors
Exxelia has received the P-Level MIL-PRF-39006/22 and MIL-PRF-39006/25 qualifications approval for its new ranges of wet tantalum capacitors.
The MIL 39006/25 is qualified for voltages from 25V to 125V and provides from 680µF @ 25V to 82 µF @ 125V. The range combine high energy density with large temperature ranges -55°C up to 125°C and are available with H vibration and shocks features.
MIL 39006/25 Technical Characteristics
Dielectric
- Wet Tantalum
Terminations
- Axial
Case sizes
- A B C D
Voltage DC
- Minimum : 25 V
- Maximum : 125 V
Capacitance
- Minimum : 6,8 µF
- Maximum : 680 µF
Notes
- No special note
Temperature
- Minimum : -55 °C
- Maximum : 125 °C
Voltage AC
- Not supported
Product Documentation
CT79 HT200 Series High Temperature Wet Tantalum
High temperatures designs are now possible in high reliability thanks to the new CT79 HT200 Tantalum capacitors from Exxelia Tantalum. Ideal for severe environments.
Application Range
Voltage
- Up to 150V
Capacitance
- 10V - 2200µF
- 25V - 850µF
- 150V - 82µF
Applications
- Filtering
- Energy storage
- Energy conversion
Market
- Down-hole
- Defence
- Avionics
CTP21 SMD Tantalum Polymer
- Higher energy density could be achieved with this softer cathode
- Twice as much capacitance compared to MnO2 techno
Product Documentation
WT83: Exxelia Tantalum Create A Technological Breakthrough
The WT83, developed by Exxelia Tantalum (ex Firadec), has created a technological breakthrough in tantalum capacitors with the significant increase in volume capacitance it offers. Also offering a potential reduction in size of electronic designs for its customers’ products.
Designed specifically for Defence, Space and Aeronautics markets, the WT83’s function are filtration, energy storage and energy conversion. With a voltage potential ranging from 6.3 to 150V.
Energy density is the main parameter and the main need of the wet tantalum users. Now thanks to WT83, it allows electronic engineers to make the smallest designs they have ever made.
- Shock up to 100g, vibration up to 50g
- Up to x6 energy density of CLR81 (MIL-C-39006/25)
- Standard C and D case sizes
- Temperature range of -55 to +125°C
- Reduces the size and weight of end-product
Product Documentation
