About Exxelia Sic Safco
Sic Safco has over 80 years experience as a designer and manufacturer of electrolytic aluminium capacitors, established to address energy transfer needs. SIC (Société Industrielle de Condensateurs) was incorporated in 1921 before merging with SAFCO (Société Anonyme de Fabrication de Condensateurs) in 1954. Sic Safco became Exxelia Sic Safco in 2015.
Exxelia Sic Safco produces screw terminal, non-cylindrical radial solder, cylindrical radial, radial solder, and axial capacitors. These high technology aluminium electrolytic capacitors are especially designed for heavy industries requiring large-scale energy transfers, Hi-Rel, & Harsh Environments included.
Technical Resources
Product Ranges

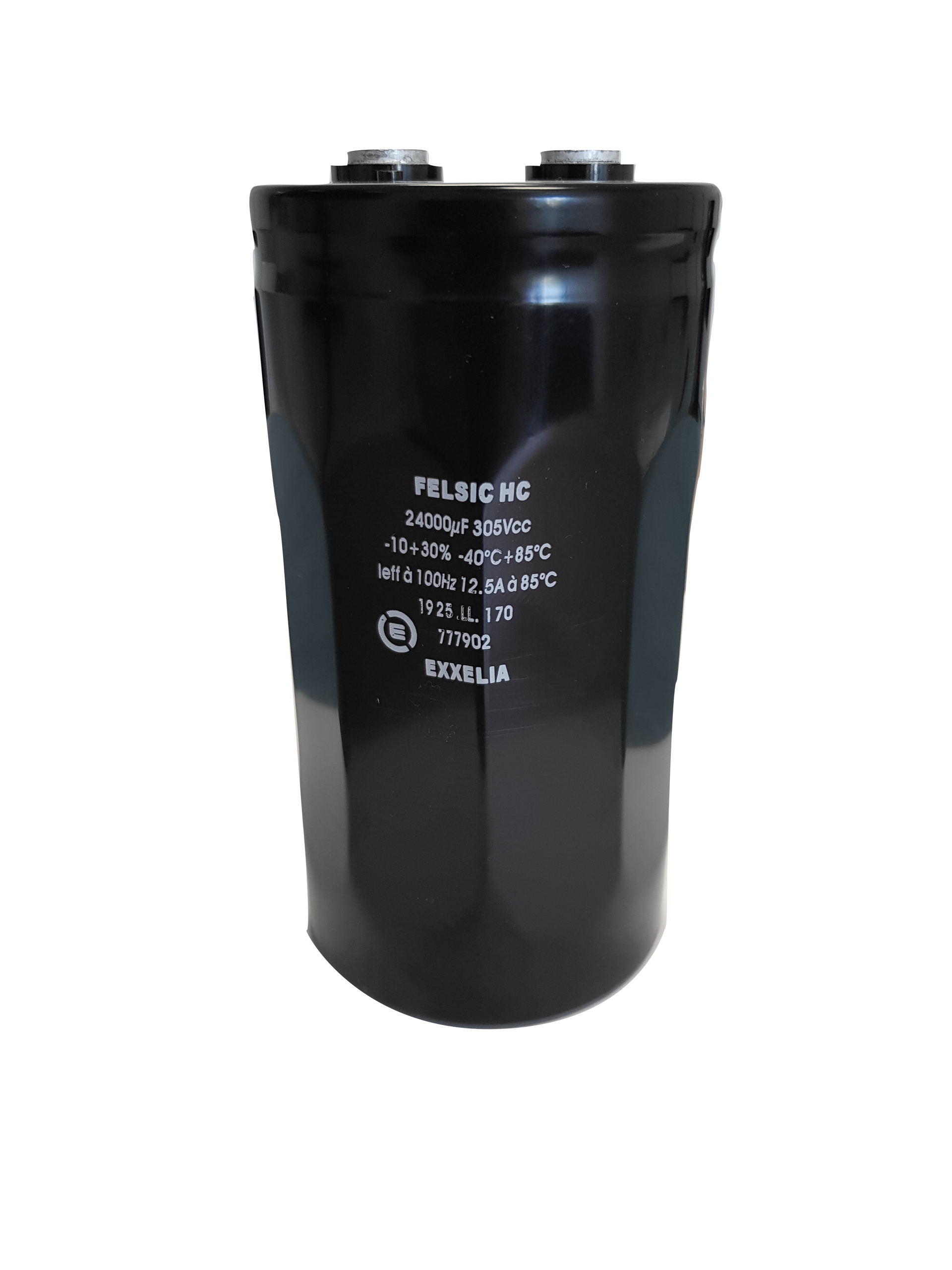

FELSIC HC, highest energy density of screw terminal aluminium electrolytic capacitor
The Felsic HC family of aluminium electrolytic screw terminal capacitors provides crucial performances required today as Jerome Tabourel, Exxelia Vice President of Marketing and Sales says: “Thanks to the use of improved materials this new Felsic family offers the highest energy density while still performing an ultra-long life time which makes it the perfect choice for Energy Storage and Power Industry equipment”.
Main Features
- High energy density
- Low ESR
- Long lifetime 8000h @85°C
Specifications
- Capacitance from 390μF to 2 700 000μF
- Energy density up to 21 µF/cm3 for a custom design
- Voltages from 10V to 500V
- Life time of 8000 hours at 85°C
- Operating Temperature -40°C to +85°C
Applications
- Power electronics : converters, current inverters
- Switch Mode Power Supplies
- Magnetization, welding machines, flash

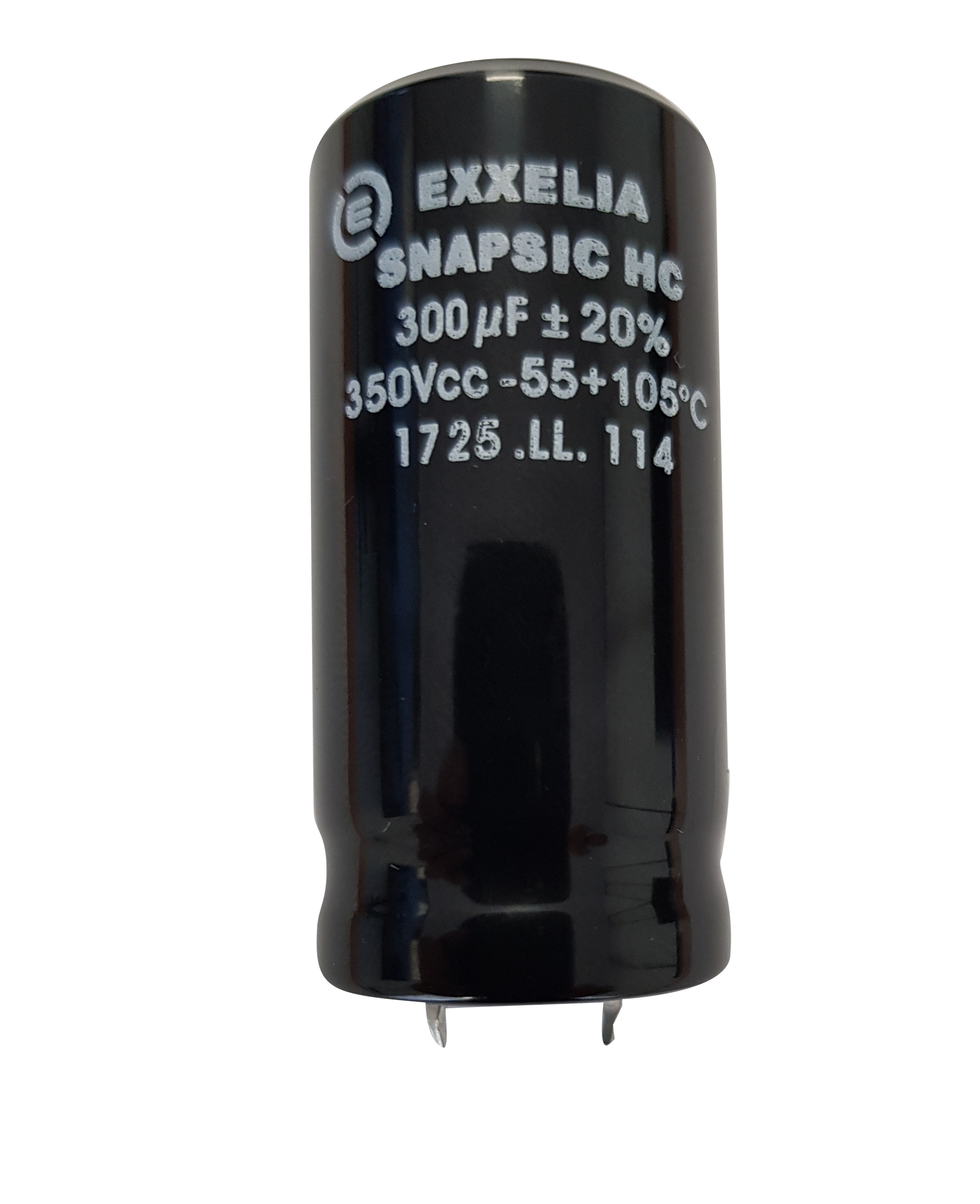

SNAPSIC HC, ultra-long life time for SNAP-IN aluminium electrolytic capacitor
The Snapsic HC series stands out by its exceptional performances offering the longest lifetime on the market operating at 85°C for 8000 hours. Very versatile, it can cover all needs of energy storage in medium voltage applications such as UPS industrial converters or railway embedded HVAC. Thanks to its high ripple current, it can be used in SMPS and HVAC rolling stocks units, for instance with 400V 1000µF in a volume of Ø 35x50mm it can reach 20,8µF/cm3 and 35,3µF at 250V. Available in smaller packages dedicated to various signalling control units, it performs 1 700µF @250V into a volume of Ø35 x 50mm.
Main Features
- High energy density
- Low ESR
- Flexibility to custom design products
- Long lifetime
Specifications
- Ultra-long life time of 8000 hours at 85°C
- Voltages from 10V to 450V
- Capacitance value from 47μF to 47 000μF
- Temperature ranges from -40°C to +85°C
Applications
- Power Supplies
- Signalling
- SMPS, Converters

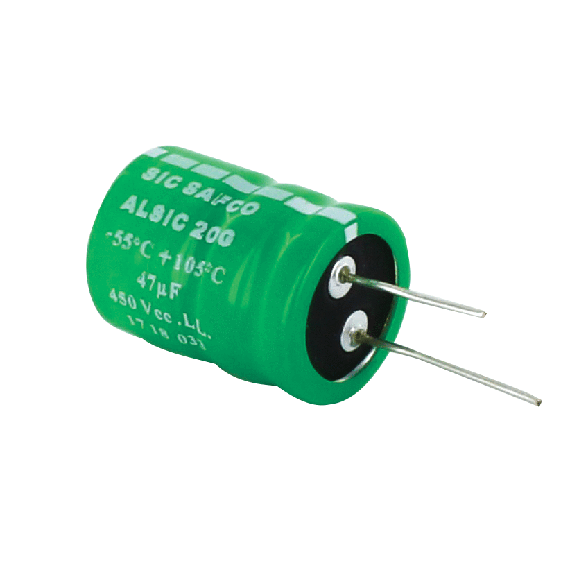

Alsic 20G, Aluminium Electrolytic capacitors with large operating temperatures
Alsic 20G is a range of radial leaded aluminium electrolytic capacitors for typical use in military and aerospace high frequency switch-mode power supplies requiring advanced performance under all operating conditions. Alsic 20G operational rated life is 8,000 hours at rated voltage and 105°C, and provides from 330µF @ 500V to 80 000μF @16V. The range features ruggedized design with insulating aluminium case and tin coated leads. With capacitance stability at high temperature, low inductance and impedance, competitive ESR and high ripple current, these capacitors are perfectly adapted for mission-critical applications.
APPLICATIONS
- Automotive
- High frequency switched mode power supplies
- High ripple current
- Low inductance
- Low impedance
Product Documentation
Screw Terminals
- FELSIC HC (New)
- FELSIC HV (New)
- FELSIC 039
- FELSIC 85
- FELSIC 85M
- FELSIC CAPAX
- FELSIC I-PLUS
- FELSIC 105
- FELSIC 105 LP
- FELSIC 105 TFRS
- FELSIC 125 FRS
Radial, Solder Mount
- ALSIC 20G
- ALSIC 145 20G
- CUBISIC
- CUBISIC LP
Radial, Snap-in Mount
- SNAPSIC
- SNAPSIC 4P
- SNAPSIC HC (New)
- SNAPSIC CAPAX
- SNAPSIC 105
- SNAPSIC 105 4P
- SNAPSIC 105 LP
- SNAPSIC HV
- SNAPSIC 125
Axial
- PRORELSIC 125
- PRORELSIC 145
- SICAL CO42
- VACSIC 105
- VACSIC 150
