About Exxelia Alcon
Alcon Electronics is a leading Indian designer and manufacturer of film & aluminum electrolytic capacitors, with a state-of-the art facility in Nashik, India.
The company sells three main types of film capacitors: IGBT snubber (direct mounting with different terminals styles to suit all types of IGBT modules), DC Link and Power Film capacitors, and is developing a new product line of AC Capacitors. Alcon serves the power electronic industry globally, especially the renewable energy, induction heating equipment, medical imaging, power generation, and railways end markets.
Alcon controls every step of product development in-house and is able to supply customers globally with custom-designed capacitors.
Product Ranges
Aluminum Electrolytic Capacitor - Screw terminal
Alcon manufactures a large range of screw terminal aluminium electrolytic capacitors with voltage rating 50 to 500 VDC. Modern manufacturing methodology and equipment ensures good quality and a wide range of capacitance ratings from 330 to 200,000 MFD. In addition to the conventional screw terminal type, special poka yoke type screw terminals are also available. Capacitor with temperature rating -40 to +85° and -40 to +105° rating are manufactured. These have life characteristics of upto 15,000 hours. Custom designed capacitors with cost effective designs, special voltage and capacitance ratings and with higher life expectancy are also available.
Capacitors have an internal design which facilitates efficient cooling. Also, specially designed capacitors with an improved heat dissipation from the base of the capacitor are also manufactured. These types of capacitors are designated as AEST-AL and can be mounted on aluminium water cooled plates or conventional heat sinks.

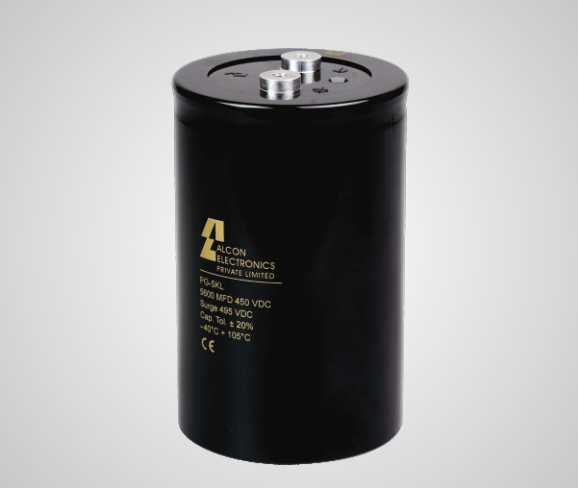

PG-5KL
Main Features
- Rated Voltage Range : 350 VDC – 500 VDC
- Capacitance Range : 680 MFD TO 18000 MFD
- Size : 50Ø X 80mm TO 90Ø X 220mm
- Temperature Range : -40°C TO +105°C
- Application : High ripple current applications like PWM inverters, High KVA online UPS, Frequency converters, AC drives, Railway traction drives, High reliability power supplies, Wind generation drives, solar inverters.
Product Documentation

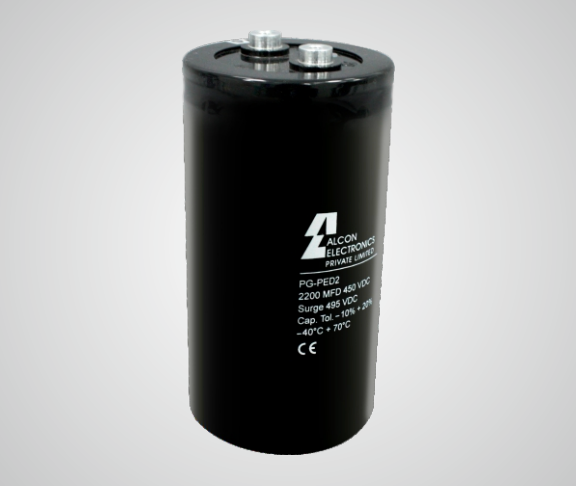

PG-PED2
Main Features
- Rated Voltage Range : 350 VDC – 450 VDC
- Capacitance Range : 680 MFD TO 6800 MFD
- Size : 50Ø X 105mm TO 90Ø X 220mm
- Temperature Range : -40°C TO +70°C
- Application : HED range is designed for large instance energy discharge application like laser, X-ray, Welding, Accelerators, Magnetisers and other pulse discharge applications.
Product Documentation
PG-LL9
Main Features
- Rated Voltage Range : 315 VDC TO 450 VDC
- Capacitance Range : 1000 MFD TO 20000 MFD
- Size : 50Ø X 80mm TO 90Ø X 220mm
- Temperature Range : -40°C TO +85°C
- Application : NEW – Long Life Grade for High Voltage, High Ripple Current Applications like PWM Inverters,High KVA On-Line UPS, Frequency Converters, AC Drives, Renewable Energy Power Supplies.
Product Documentation
PG-6DI
Main Features
- Rated Voltage Range : 50 VDC – 500 VDC
- Capacitance Range : 330 MFD TO 250000 MFD
- Size : 35Ø X 62mm TO 90Ø X 220mm
- Temperature Range : -40°C TO +85°C
- Application : High Ripple Current Applications like, PWM Inverters,High KVA On-Line UPS, Frequency Converters, AC Drives, Renewable Energy Power Supplies, Telecom SMPS.
Product Documentation
PG-8K
Main Features
- Rated Voltage Range : 50 VDC – 450 VDC
- Capacitance Range : 1000 MFD TO 200000 MFD
- Size : 35Ø X 62mm TO 90Ø X 220mm
- Temperature Range : -40°C TO +105°C
- Application : NEW – High Temperature 105 °C for High Ripple Current Applications like,PWM Inverters, High KVA On-Line UPS,Frequency Converters, AC Drives,Renewable Energy Power Supplies,Railway Traction, High Reliability Power Supplies.
Product Documentation
PG-2HED
Main Features
- Rated Voltage Range : 350 VDC – 450 VDC
- Capacitance Range : 680 MFD TO 6800 MFD
- Size : 50Ø X 105mm TO 90Ø X 220mm
- Temperature Range : -40°C TO +170°C
- Application : HED range is designed for large instance energy discharge application like capacitor discharge welding, magnetisers and other pulse discharge applications.
Product Documentation
Aluminum Electrolytic Capacitor - Snap in
Alcon manufactures a large range of screw terminal aluminium electrolytic capacitors with voltage rating 50 to 500 VDC. Modern manufacturing methodology and equipment ensures good quality and a wide range of capacitance ratings from 330 to 200,000 MFD. In addition to the conventional screw terminal type, special poka yoke type screw terminals are also available. Capacitor with temperature rating -40 to +85° and -40 to +105° rating are manufactured. These have life characteristics of upto 15,000 hours. Custom designed capacitors with cost effective designs, special voltage and capacitance ratings and with higher life expectancy are also available.

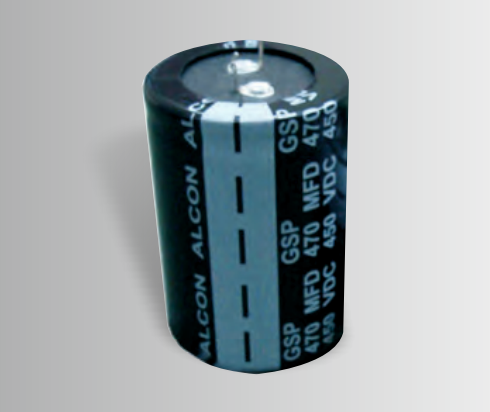

GSP
Main Features
- Rated Voltage Range : 16 VDC TO 500 VDC
- Capacitance Range : 47 MFD TO 56000 MFD
- Size : 22Ø x 25mm TO 45Ø x 65mm
- Temperature Range : – 40°C TO +105°C
- Application : UPS, Inverter, SMPS, Battery charger.
Product Documentation

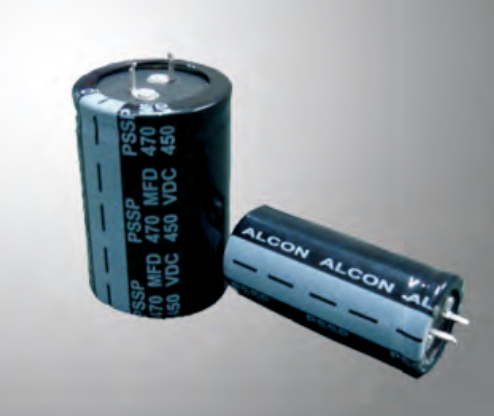

PSSP
Main Features
- Rated Voltage Range : 16 VDC TO 500 VDC
- Capacitance Range : 82 MFD TO 100000 MFD
- Size : 22Ø x 25mm TO 45Ø x 65mm
- Temperature Range : – 40°C TO +85°C
- Application : UPS, Inverter, SMPS, Battery charger.
Product Documentation
Aluminum Electrolytic Capacitor - Radial
Alcon manufactures a large range of screw terminal aluminium electrolytic capacitors with voltage rating 50 to 500 VDC. Modern manufacturing methodology and equipment ensures good quality and a wide range of capacitance ratings from 330 to 200,000 MFD. In addition to the conventional screw terminal type, special poka yoke type screw terminals are also available. Capacitor with temperature rating -40 to +85° and -40 to +105° rating are manufactured. These have life characteristics of upto 15,000 hours. Custom designed capacitors with cost effective designs, special voltage and capacitance ratings and with higher life expectancy are also available.
RLB
Main Features
- Rated Voltage Range : 6.3 VDC TO 450 VDC
- Capacitance Range : 1 MFD TO 68000 MFD
- Size : 5Ø x 11mm TO 25Ø x 50mm
- Temperature Range : – 40°C TO +105°C
- Application : UPS, Inverter, SMPS, Battery charger.
Product Documentation

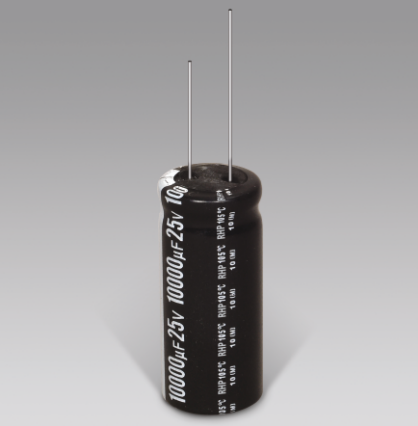

RHP
Main Features
- Rated Voltage Range : 6.3 VDC TO 450 VDC
- Capacitance Range : 1 MFD TO 22000 MFD
- Size : 5Ø x 11mm TO 25Ø x 50mm
- Temperature Range : – 40°C TO +85°C
- Application : UPS, Inverter, SMPS, Battery charger.
Product Documentation
