KEMET's HiQ-CBR series, high frequency, high performance portfolio of RF and Microwave Capacitors in C0G dielectric feature a robust and exceptionally stable base metal electrode system that provides excellent low loss performance (high Q). These devices offer extremely low ESR and high self-resonance characteristics, and are well-suited for resonant circuit applications or those where Q and stability of capacitance are required.
Applications can include Wireless & cellular base stations, Wireless LAN & broadcast equipment, Subscriber-based wireless services, Satellite communications, RF & power amplifier modules and Medical electronics.
Features & Benefits of RF and Microwave Capacitors include C0G dielectric, Ultra-high Q, BME copper electrode system, PB-Free & RoHS compliant, Low ESR, and High thermal stability.
Technical Resources
Product Ranges
Ultra HiQ-CBR Squared Series
The Piezoelectric Haptic Modules (Film Flex Assembled Actuators) are revolutionary, next-generation flexible haptics actuator technology with the unique ability to provide localized, bodily sensations and tactile effects currently unavailable with any other product in the market. These versatile actuators can be used in a broad range of applications including AR/VR, gaming controllers, as well as in visionary products of the future that leverage human[1]computer interaction. This is made possible by the thin form factor, ideal size and flexibility of the actuators.
With these Piezoelectric Haptic Modules the haptic skin technology designers can add the sense of touch to the surface of products providing:
- Localized, independent sensations that enhance user experience
- Natural, organic, authentic touch sensations
- Programmable, customizable effects providing a unique range of sensations.
Applications Products with hand contact:
- AR (Augmented Reality) and VR (Virtual Reality)
- Remote control
- Gaming controller
- Medical controller
- Smart textiles
- Mouse
- User interface capacitive touch surface
Products with lips contact:
- Musical instrument (mouth piece)
- Medical equipment
Product Documentation
METCOM MPXV series automotive power inductor
METCOM MPXV Power Inductors are metal composite inductors ideal for use in DC to DC switching power supplies, as power inductors as well as EMI filter inductors. The metal composite core has high saturation characteristics maintaining function in rush current mode and characterized by temperature stable inductance. The footprint is consistent and drop in replacement to commonly used footprints in the market. The portfolio covers sizes from 5x5mm to 22x22mm. MPXV series is AEC-Q200 qualified.
Features
- AEC-Q200 qualified
- High Efficiency Inductor
- Metal Composite Powder
- Shielded Construction
- Low magnetic flux leakage
- Operating temperature up to +155˚C
- Low self temperature rise improved power efficiency of DC-DC converters
- Metal composite core has high saturation characteristics maintaining function in rush current mode
- Composite construction with low acoustic noise
- Extended range of inductance values from 0.10 ~ 47.00 µH
Applications
- High frequency DC-DC converters including WBG GaN applications
- Points of loads (POL)
- Field-programmable gate arrays (FPGA)
- Battery powered regulators
Product Documentation

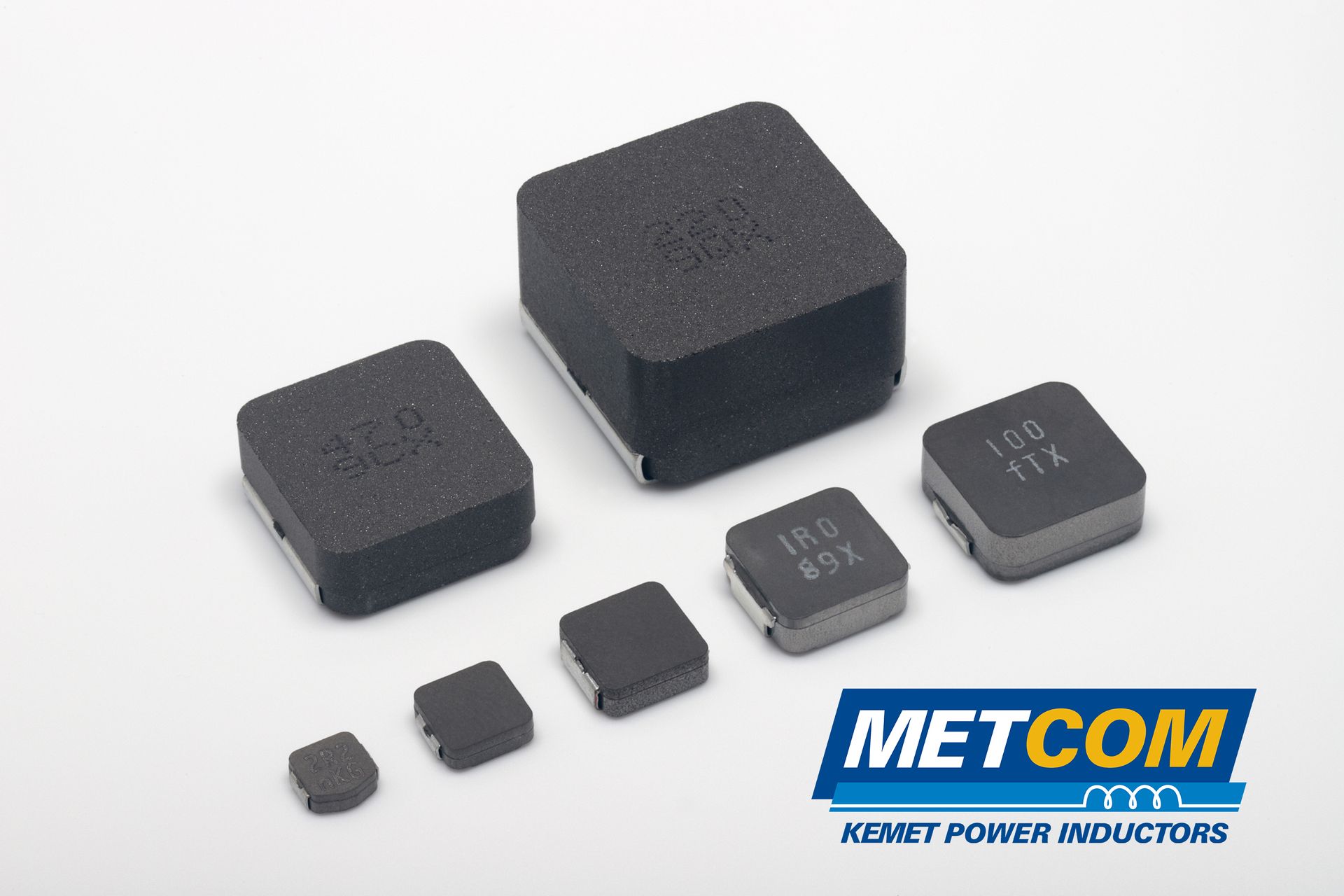

Kemet METCOM Metal Composite Power Inductors MPX
KEMET’s new METCOM SMD inductor range addresses power density and efficiency application challenges
The KEMET MPX metal composite inductors are ideal for use in DC to DC switching power supplies, as power inductors as well as EMI filter inductors. The metal composite core has high saturation characteristics maintaining function in rush current mode and characterized by temperature Stable inductance.
Applications
Consumer and commercial power applications such as:
- High frequency DC-DC converters, including WBG GaN applications
- PCs and servers
- Points of loads (POL)
- Field-programmable gate arrays (FPGA)
- Battery powered regulators
Benefits
- Metal composite powder
- Shielded construction, SMD configuration
- Inductance range from 0.10 – 100.00 µH
- Operating temperature up to +155°C
- Low acoustic noise
- Low magnetic flux leakage
Product Documentation
Micro Energy Harvesting - MEH
Maintainence free/self-supporting power supply
- Module is compact, palm-sized
- Each unit is replaceable to cartridge type
- MEH module with built-in SuperCapacitor can be easily consolidated, it is possible to expand the capacity of the storage according to the application
- Build maintenance free power supply by using several energy harvesting sources and SuperCapacitor that is without deterioration in charge/discharge cycle
Metal Composite Inductors For Automotive Application
Features
- Operating temperature range: -40° to +150°C
- AEC-Q200
- High reliablity products (automotive market)
- Shielded construction, large current, low DCR
- Pb-free, RoHS compliant
Applications
- Inductor for ECU (automotive) (EPS, LED head light, SRS)
| Series | Inductance (μH) at 100kHz, 1mA | Irms *1 (A) | Isat *2 (A) |
|---|---|---|---|
| MPLCV0645L100 | 10±20% | 4.0 | 6.5 |
| MPLCV064L4R7 | 4.7±20% | 6.3 | 10.5 |
| MPLCV0654L330 | 33±20% | 2.6 | 4.0 |
| MPLCV0654L470 | 47±20% | 2.1 | 3.0 |
| MPLCV1054L100 | 10±20% | 7.1 | 12.0 |
| MPLCV1054L220 | 22±20% | 5.5 | 7.0 |
*1 40°C rise at rated current. *2 Inductance drop 30%
Operating temperature range: -40°C + 150°C (include self temperature rise), AEC-Q200

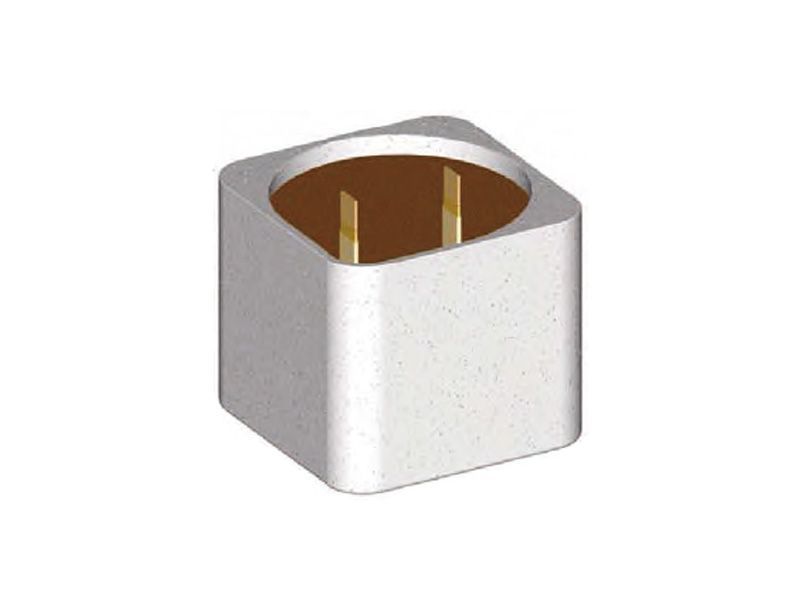

Metal Composite Reactors
Features
- Integrally molded reactor by inject molding of our origianl technology
- Superior design flexability by inject molding method
- Leakage flux is small due to a distributed gap
- Excellent heat dissipation efficiency by integral molding
- Able to support a high-frequency (50kHz or less)
Applications
- Inverter for HEV/PHEV
- Power conditioner
UL94 V-0 Flame Retardent Type Flex Suppressor®
Features
- Lowered impact to the environment, halogen free
- UL94 V-0
- μ60 permeability, roll acceptable, red phosphrus free
- μ100 permeability, supports roll of up to 0.3mm, AEC-Q200
- μ140 permeability, AEC-Q200
Applications
- Noise radiation suppression, internal interface suppression
- Anti-ESD measure for electric devices
High Magnetic Permeability Type Flex Suppressor®
Features
- Lowered impact to the environment, halogen free
- UL94 HB
- Red phosphrus free
- FX5:μ150 permeability, roll acceptable
- EFX6μ160 permeability
Applications
- Noise radiation suppression, internal interface suppression
- Anti-ESD measure for electric devices
GHz Band High Performance Type Flex Suppressor®
Features
- Lowered impact to the environment, halogen free
- UL94 HB
- Red phosphrus free
- FG1: Roll acceptable
- EFG2: Excellent suppresion of high frequency noise
Applications
- Measures for the desense LTE, Wi-FI, GPS etc.
Magnetic Choke Filters

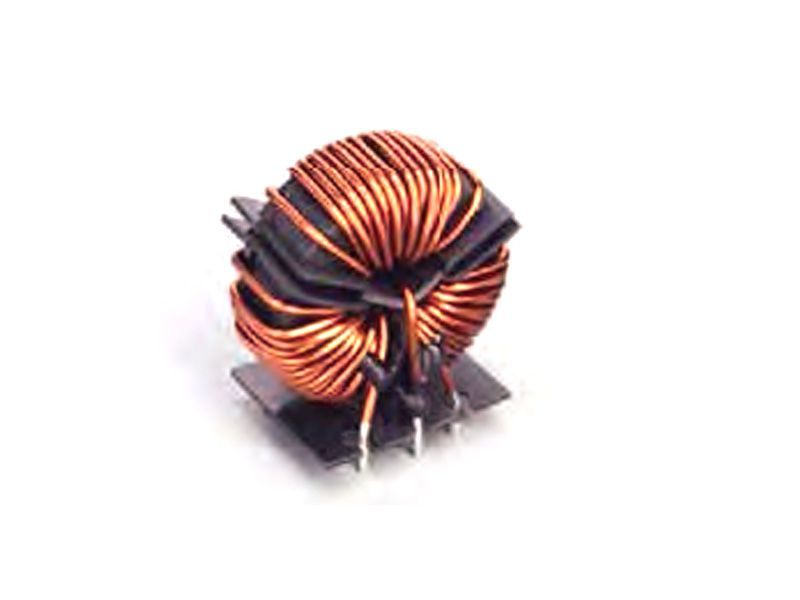

Three-phase SCF Series
Features
- High current series (up to 60A)
- Rated voltage 500V correspondence
- Operating temperature ~120°C, UL94 V-0
- Metal-based magnetic materials are employed
Applications
- Air conditioner
- Power conditioner
- Industrial equipment with inverter

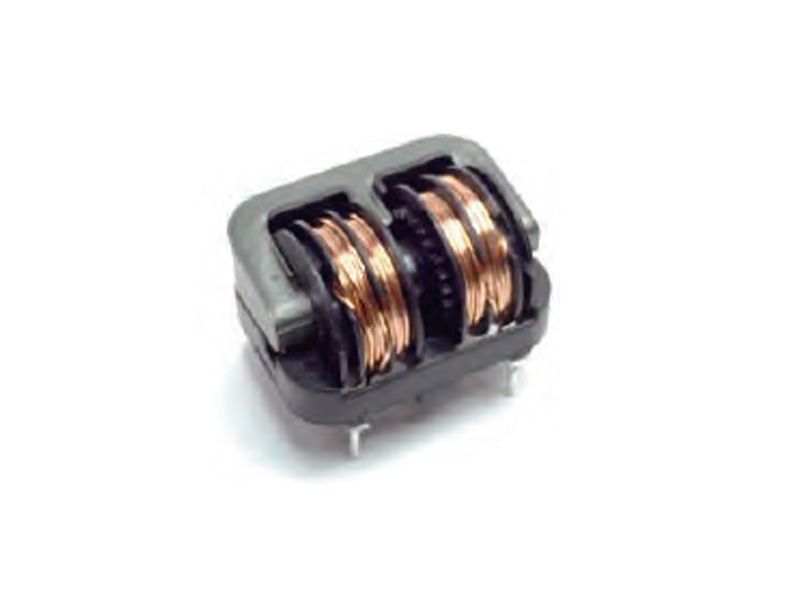

SSHB10HS Series
Features
- Hybrid coil capable of simultaneously suppressing common and normal noises with one coil
- Unique core molding technology and materials development realises quiet operation and excellent superimposistion characteristics at high temperature
- Class B(130°C) support
Applications
- LED lighting
- AV equipment
- OA equipment
- Power supply

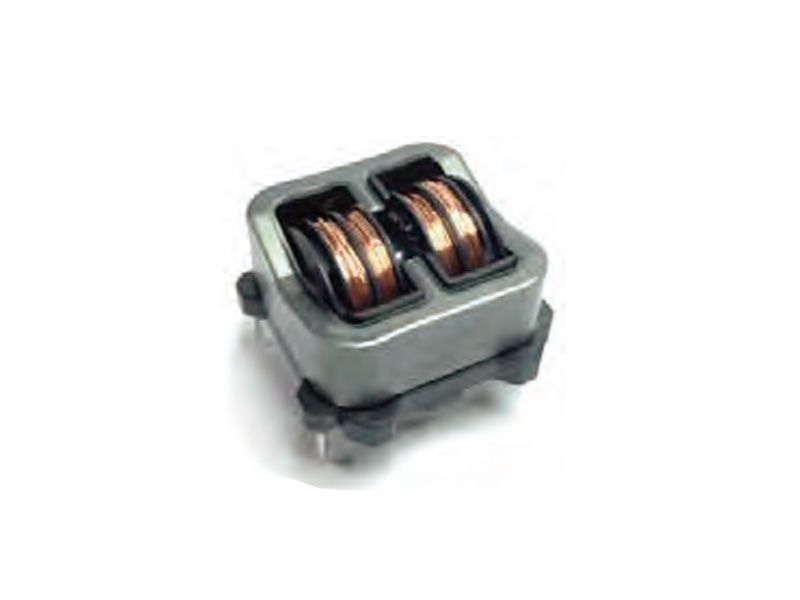

SSHB21HS Series
Features
- Hybrid coil capable of simultaneously suppressing common and normal noises with one coil
- Unique core molding technology and materials development realises quiet operation and excellent superimposistion characteristics at high temperature
- Class B(130°C) support
Applications
- LED lighting
- AV equipment
- OA equipment
- Power supply

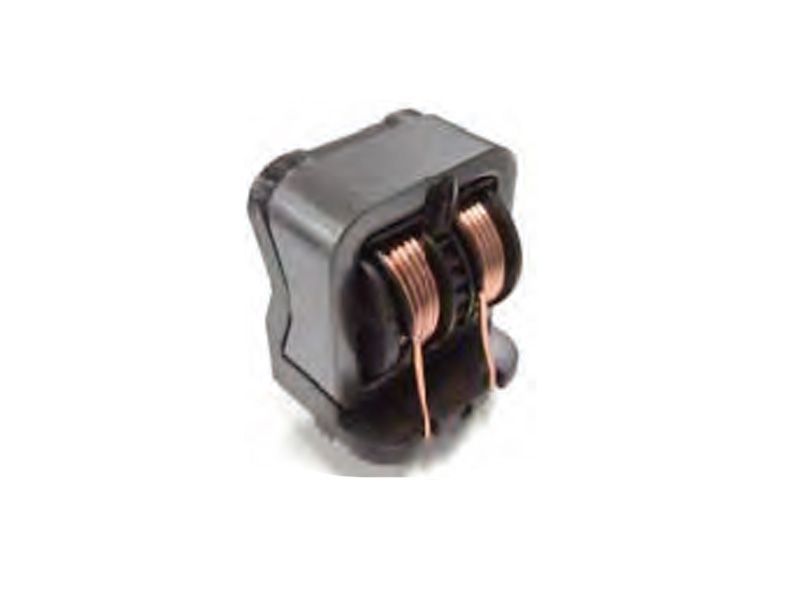

SSRH24NV Series
Features
- Using high magnetic permeability material S18H optimised core and structure.
- Downsized (30% less volume than SS28V Series)
- Expanded current range
- Realised high performance, low Rdc (compared to SS28V Series, inductance: 2 times or more, Rdc: 3% or greater reduction)
- Non-split bobbin design for ultra-high impedance characteristics
Applications
- Digital applicance
- AV equipment
- OA equipment
- Power supply
SSRH24NVS Series
Features
- Using high magnetic permeability material S18H optimised core and structure.
- Downsized (30% less volume than SS28V Series)
- Expanded current range
- Realised high performance, low Rdc (compared to SS28V Series, inductance: 1.6 times or more, Rdc: 20% or greater reduction)
- Split bobbin design for widband impedance characteristics
Applications
- Digital applicance
- AV equipment
- OA equipment
- Power supply

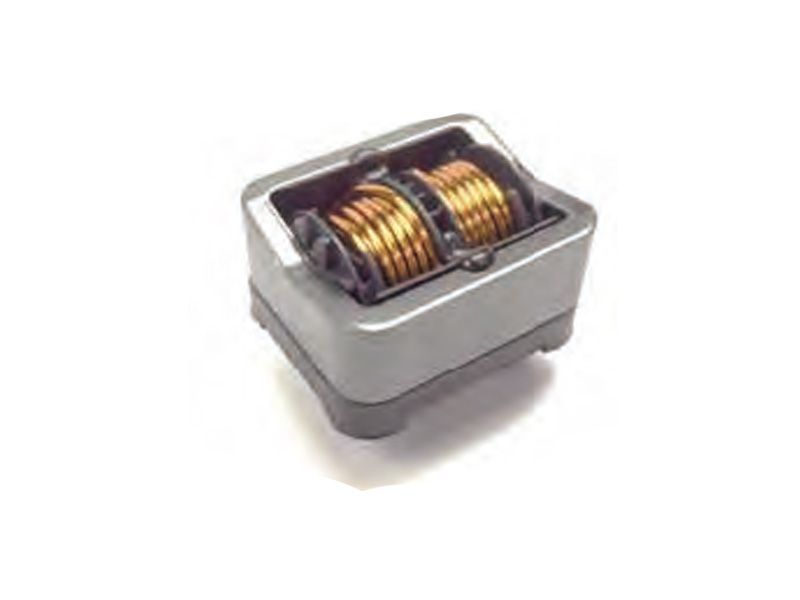

SSRH30NH Series
Features
- Using high magnetic permeability material S18H optimised core and structure.
- High inductance characteristics as toroid core (equivalent to SC type)
- High current series
Applications
- Digital applicance
- AV equipment
- OA equipment
- Power supply

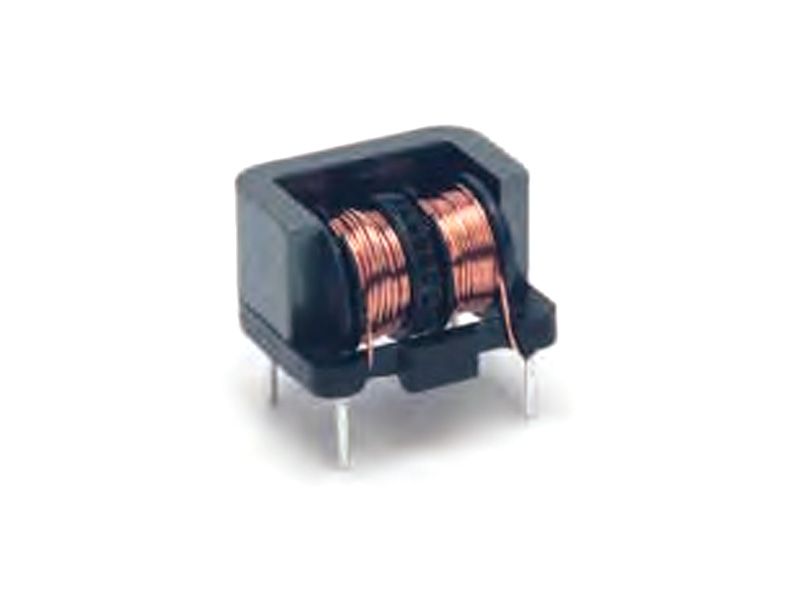

SSRH7H-M Series
Features
- Smallest-in-industry gear common choke for flow current applications
- High performance and redused size through use of high magnetic permeability material S18H and optimisation of the core shape and product structure
- Non-split bobbin design for ultra-high impedance characteristics
Applications
- Digital applicance
- AV equipment
- OA equipment
- Compact power supply
SSRH7HS-M Series
Features
- Smallest-in-industry gear common choke for flow current applications
- High performance and redused size through use of high magnetic permeability material S18H and optimisation of the core shape and product structure
- Split bobbin design for wideband impedance characteristics
Applications
- Digital applicance
- AV equipment
- OA equipment
- Compact power supply

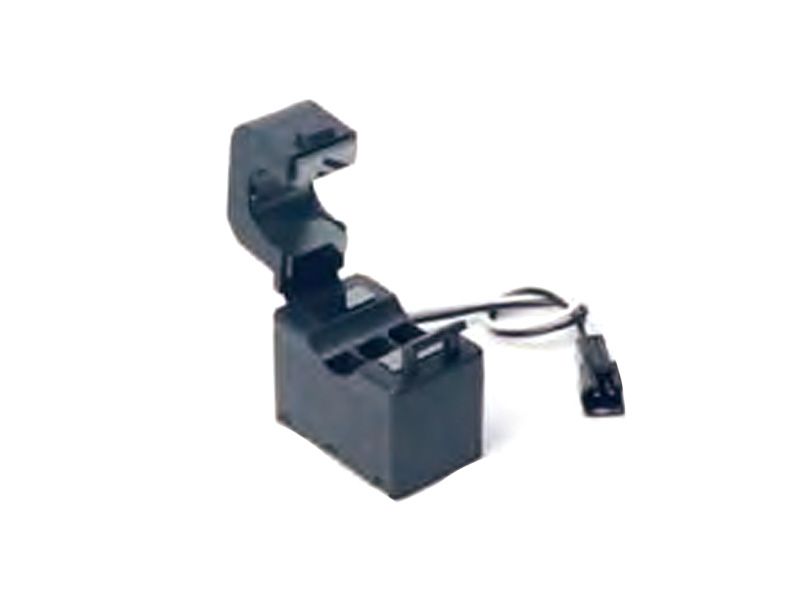

Current Sensor (Clamp CT: C/CT-1216)
Features
- New design structure. Improved ratio error characteristics (50% reduction from existing model)
- Flat temperature characteristics by original core material
- Compact and slim design
- Non-combustable
Applications
- xEMS measurements (power monitoring)
- Power conditioners, inverter units
- Distribution boards
- Power monitoring systems

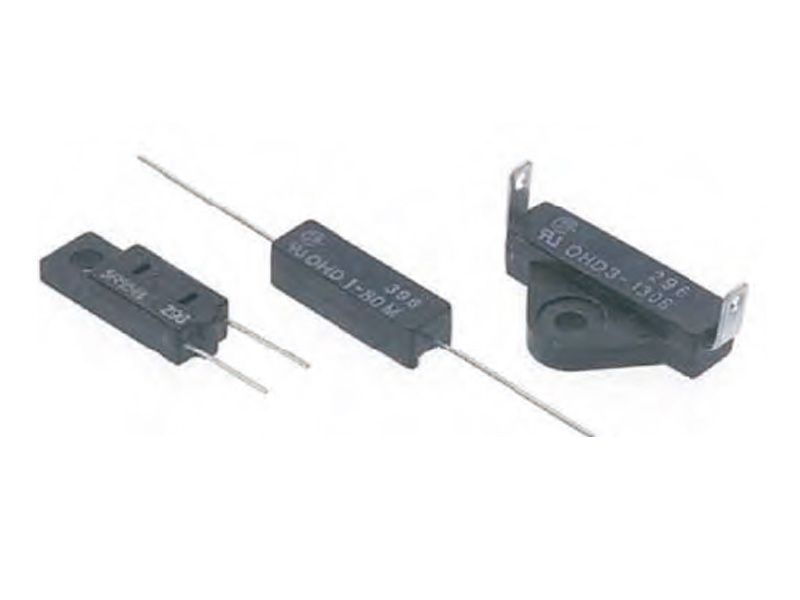

Thermal Sensor (TRS® Series & OHD™ Series)
Features
- High reliability
- Excellent temperature accuracy (±2.5°C, ±5.0°C)
- Wide range of operating temperatures available/li>
- Excellent environmental resistance
- Approved several safety standard
Applications
- Thermal reed switch (TRS®)
- Power conditioners, inverter units
- Thermal guard
Vibration Sensor
Features
- High sensitivity (20mV/m/s2)
- Wide bandwidth sensing (10Hz~15kHz) with reasonable price
- Original product design brings high conversion efficiency

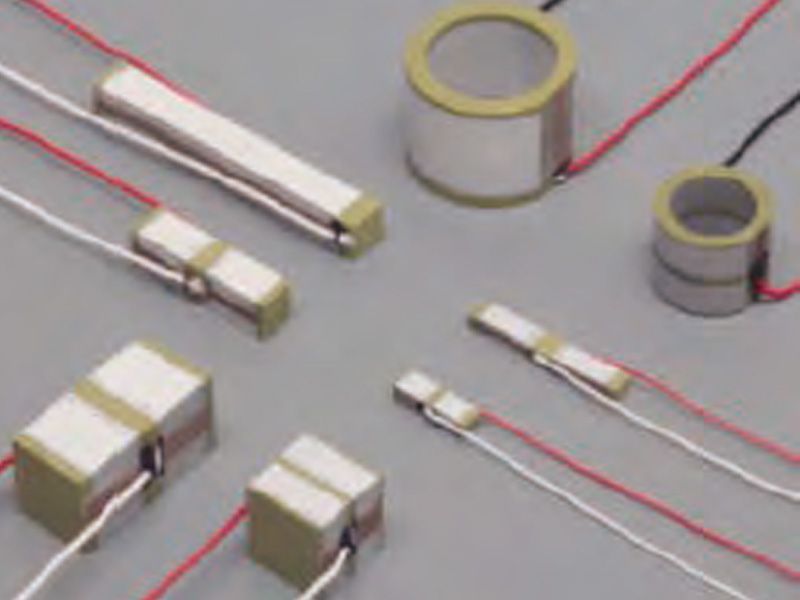

Multilayer Piezoelectric Actuators
Applications
- Valve control (MFC/proportional control valve)
- Probe control
- High speed focusing, 3D image acquisition
- Optical fibre/laser optical axis adjustment
- Interferometer mirror adjustment
- Correction of mirror angle displacement
- Pixel shifting for the image sensor
- Precise stage positioning
- Nanoimprint positioning
- Clamping (wire bonding)
- Dispensing equipment
- Excitation/damping equipment
- Various tests (pressure, fatigue, wear etc.)
- Various machining (precise centering, precise feeding)
