Kemet MSA

Kemet MSA, previously TOKIN is part of the KEMET group. Kemet MSA electronic component products including supercapacitors, inductors, relays, flex suppressors, EMI cores and AC line filters, serving the Military, Industrial, and Automotive sectors.

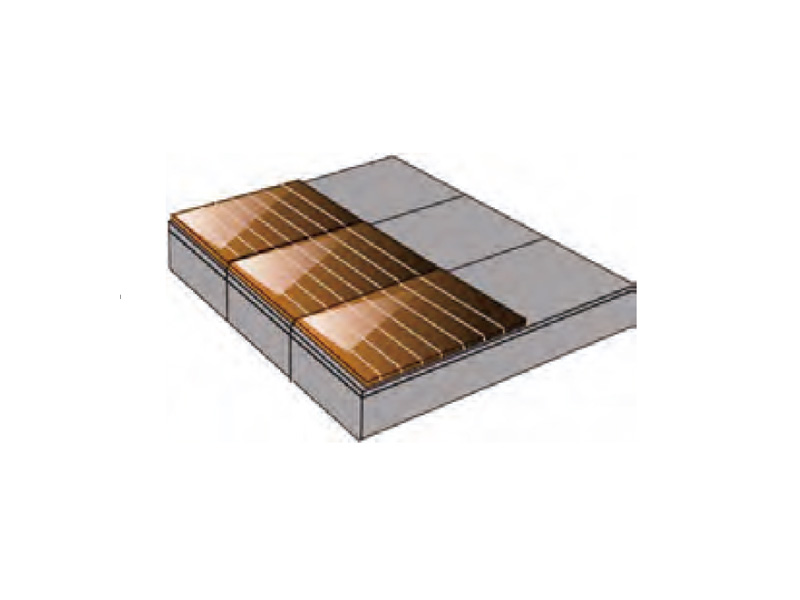

MEH-Micro-Energy-Harvesting

Maintainence free/self-supporting power supply

  • Module is compact, palm-sized
  • Each unit is replaceable to cartridge type
  • MEH module with built-in SuperCapacitor can be easily consolidated, it is possible to expand the capacity of the storage according to the application
  • Build maintenance free power supply by using several energy harvesting sources and SuperCapacitor that is without deterioration in charge/discharge cycle

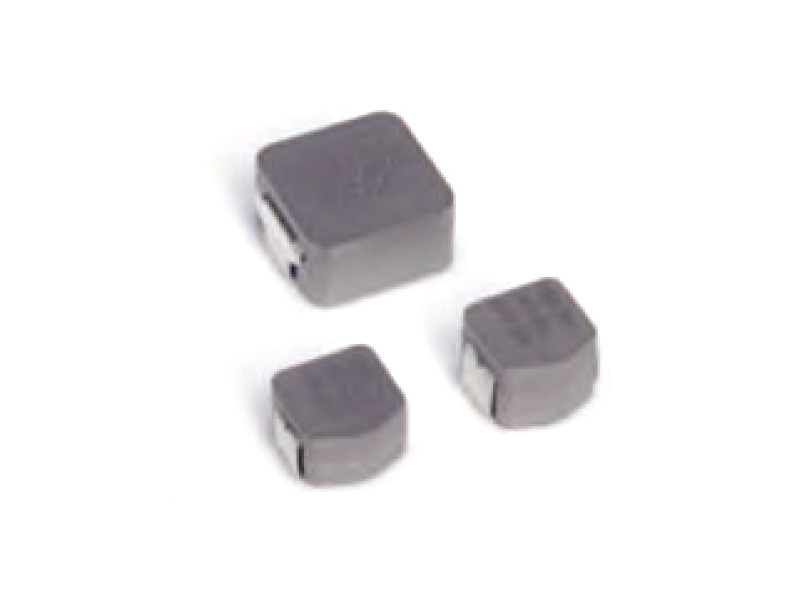

Metal-Composite-Inductors-For-Automotive-Application

Features

  • Operating temperature range: -40° to +150°C
  • AEC-Q200
  • High reliablity products (automotive market)
  • Shielded construction, large current, low DCR
  • Pb-free, RoHS compliant

Applications

  • Inductor for ECU (automotive) (EPS, LED head light, SRS)
Series Inductance (µH) at 100kHz, 1mA Irms *1 (A) Isat *2 (A)
MPLCV0645L100 10±20% 4.0 6.5
MPLCV064L4R7 4.7±20% 6.3 10.5
MPLCV0654L330 33±20% 2.6 4.0
MPLCV0654L470 47±20% 2.1 3.0
MPLCV1054L100 10±20% 7.1 12.0
MPLCV1054L220 22±20% 5.5 7.0

*1 40°C rise at rated current. *2 Inductance drop 30%
Operating temperature range: -40°C + 150°C (include self temperature rise), AEC-Q200

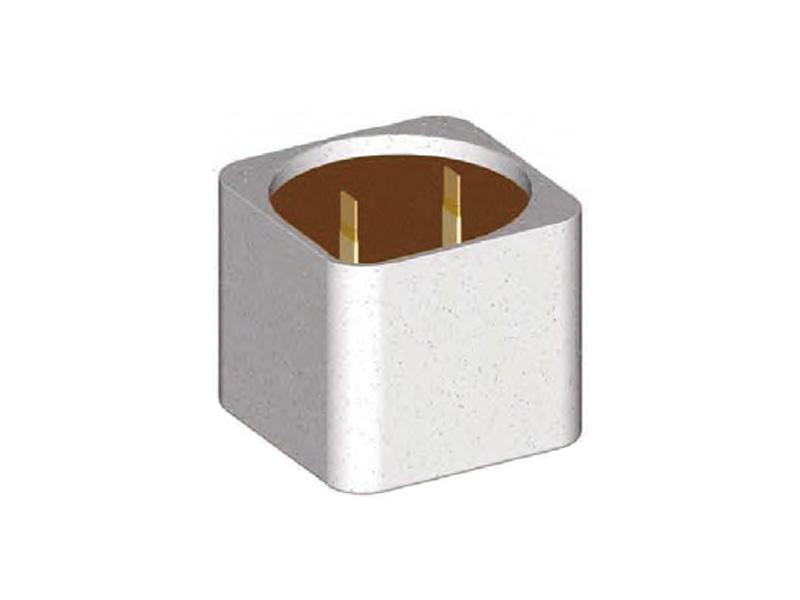

Metal-Composite-Reactors

Features

  • Integrally molded reactor by inject molding of our origianl technology
  • Superior design flexability by inject molding method
  • Leakage flux is small due to a distributed gap
  • Excellent heat dissipation efficiency by integral molding
  • Able to support a high-frequency (50kHz or less)

Applications

  • Inverter for HEV/PHEV
  • Power conditioner

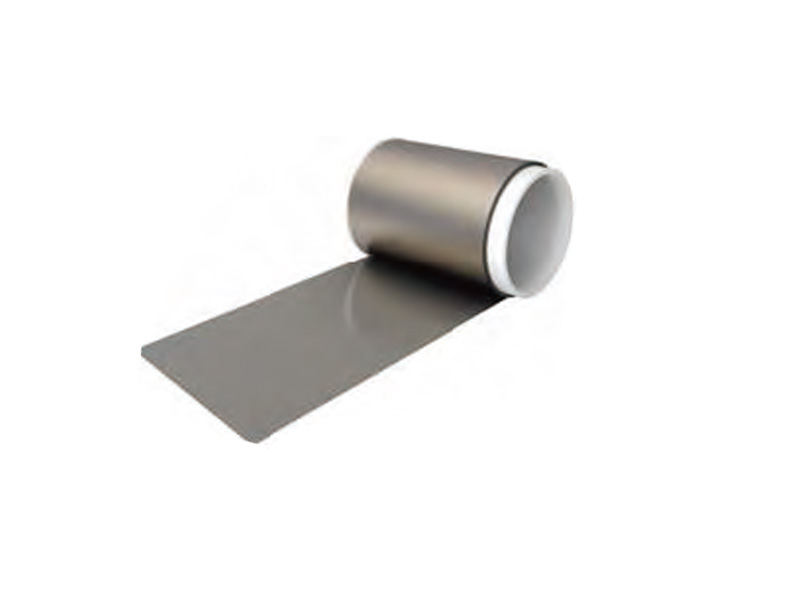

UL94-V-0-Flame-Retardent-Type-Flex-Suppressor

Features

  • Lowered impact to the environment, halogen free
  • UL94 V-0
  • μ60 permeability, roll acceptable, red phosphrus free
  • μ100 permeability, supports roll of up to 0.3mm, AEC-Q200
  • μ140 permeability, AEC-Q200

Applications

  • Noise radiation suppression, internal interface suppression
  • Anti-ESD measure for electric devices/li>
High Magnetic Permeability Type Flex Suppressor

Features

  • Lowered impact to the environment, halogen free
  • UL94 HB
  • Red phosphrus free
  • FX5:μ150 permeability, roll acceptable
  • EFX6μ160 permeability

Applications

  • Noise radiation suppression, internal interface suppression
  • Anti-ESD measure for electric devices
GHz Band High Performance Type Flex Suppressor

Features

  • Lowered impact to the environment, halogen free
  • UL94 HB
  • Red phosphrus free
  • FG1: Roll acceptable
  • EFG2: Excellent suppresion of high frequency noise

Applications

  • Measures for the desense LTE, Wi-FI, GPS etc.

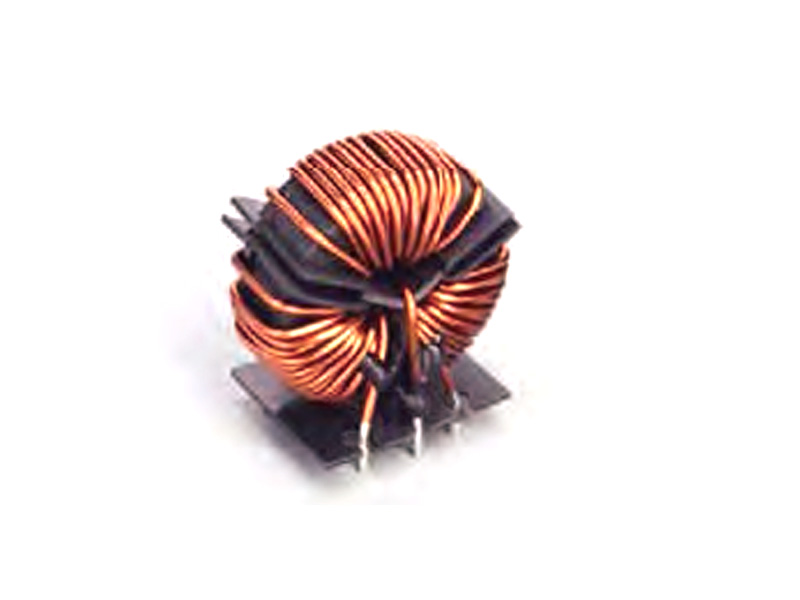

3-phase-SCF-series

Three-phase SCF Series


Features

  • High current series (up to 60A)
  • Rated voltage 500V correspondence
  • Operating temperature ~120°C, UL94 V-0
  • Metal-based magnetic materials are employed

Applications

  • Air conditioner
  • Power conditioner
  • Industrial equipment with inverter
SSHB10HS-Series

SSHB10HS Series


Features

  • Hybrid coil capable of simultaneously suppressing common and normal noises with one coil
  • Unique core molding technology and materials development realises quiet operation and excellent superimposistion characteristics at high temperature
  • Class B(130°C) support

Applications

  • LED lighting
  • AV equipment
  • OA equipment
  • Power supply

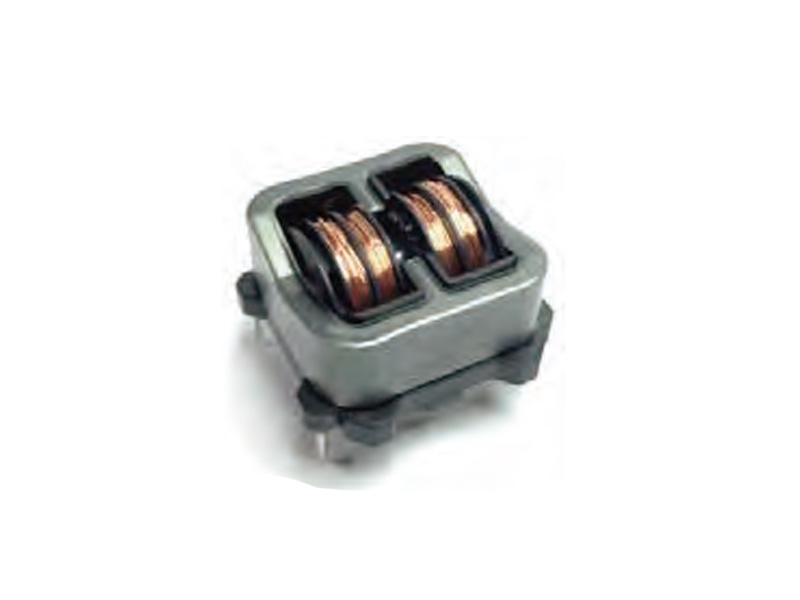

SSHB21HS-Series

SSHB21HS Series


Features

  • Hybrid coil capable of simultaneously suppressing common and normal noises with one coil
  • Unique core molding technology and materials development realises quiet operation and excellent superimposistion characteristics at high temperature
  • Class B(130°C) support

Applications

  • LED lighting
  • AV equipment
  • OA equipment
  • Power supply

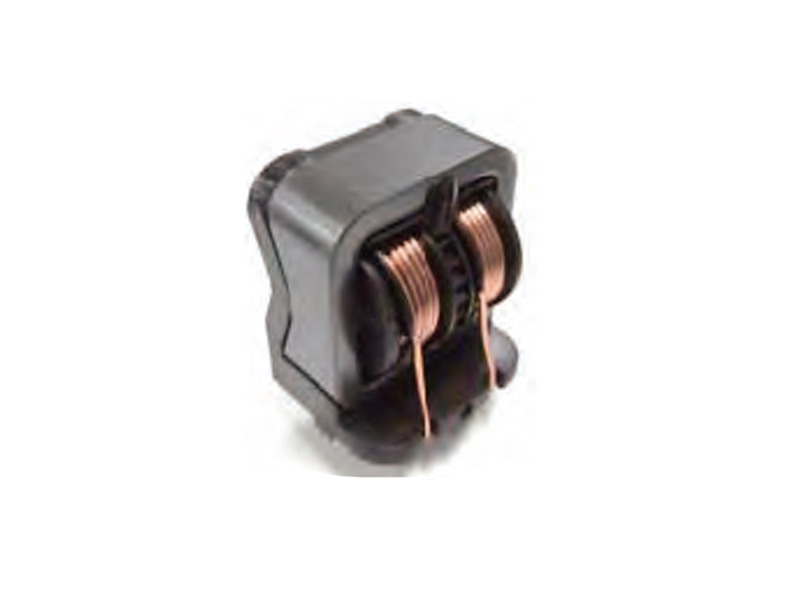

SSRH24NV-Series

SSRH24NV Series


Features

  • Using high magnetic permeability material S18H optimised core and structure.
  • Downsized (30% less volume than SS28V Series)
  • Expanded current range
  • Realised high performance, low Rdc (compared to SS28V Series, inductance: 2 times or more, Rdc: 3% or greater reduction)
  • Non-split bobbin design for ultra-high impedance characteristics

Applications

  • Digital applicance
  • AV equipment
  • OA equipment
  • Power supply
SSRH24NVS-Series

SSRH24NVS Series


Features

  • Using high magnetic permeability material S18H optimised core and structure.
  • Downsized (30% less volume than SS28V Series)
  • Expanded current range
  • Realised high performance, low Rdc (compared to SS28V Series, inductance: 1.6 times or more, Rdc: 20% or greater reduction)
  • Split bobbin design for widband impedance characteristics

Applications

  • Digital applicance
  • AV equipment
  • OA equipment
  • Power supply

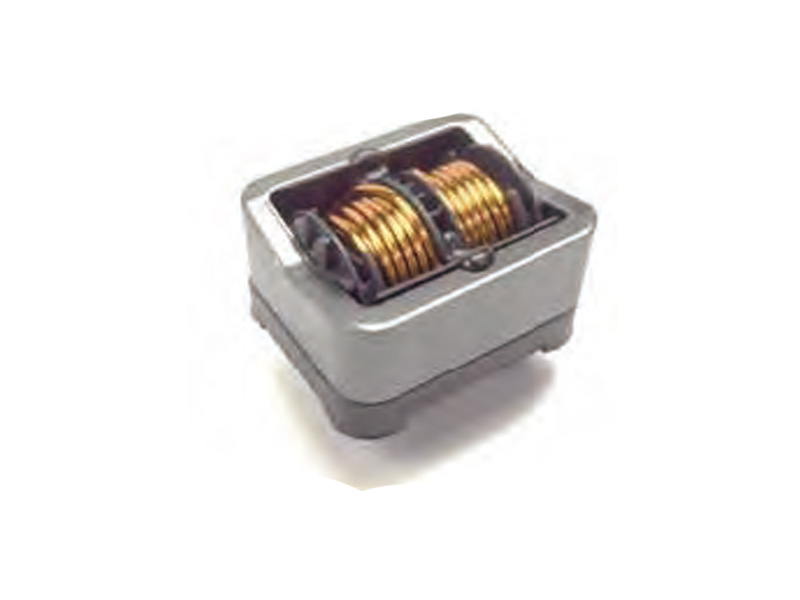

SSRH30NH-Series

SSRH30NH Series


Features

  • Using high magnetic permeability material S18H optimised core and structure.
  • High inductance characteristics as toroid core (equivalent to SC type)
  • High current series

Applications

  • Digital applicance
  • AV equipment
  • OA equipment
  • Power supply
SSRH30NH-Series

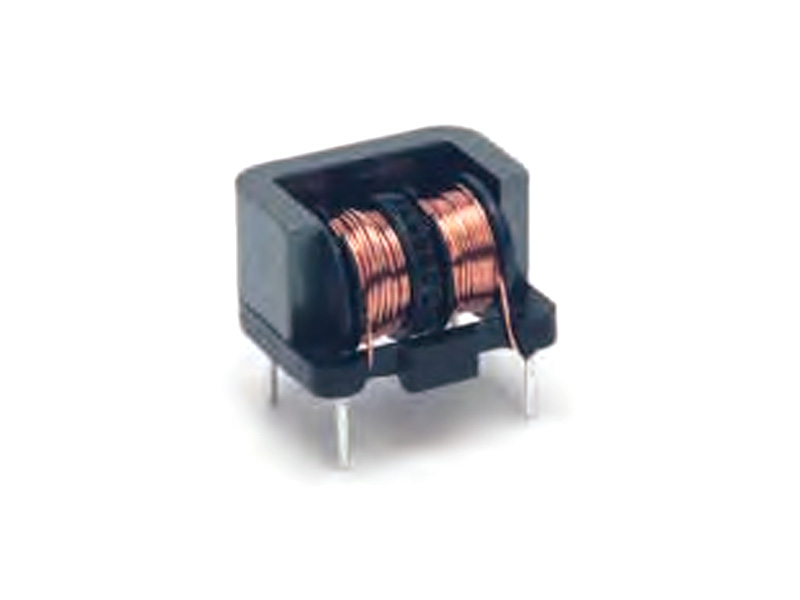

SSRH7H-M Series


Features

  • Smallest-in-industry gear common choke for flow current applications
  • High performance and redused size through use of high magnetic permeability material S18H and optimisation of the core shape and product structure
  • Non-split bobbin design for ultra-high impedance characteristics

Applications

  • Digital applicance
  • AV equipment
  • OA equipment
  • Compact power supply
SSRH30NH-Series

SSRH7HS-M Series


Features

  • Smallest-in-industry gear common choke for flow current applications
  • High performance and redused size through use of high magnetic permeability material S18H and optimisation of the core shape and product structure
  • Split bobbin design for wideband impedance characteristics

Applications

  • Digital applicance
  • AV equipment
  • OA equipment
  • Compact power supply
Curent-Sense

Features

  • New design structure. Improved ratio error characteristics (50% reduction from existing model)
  • Flat temperature characteristics by original core material
  • Compact and slim design
  • Non-combustable

Applications

  • xEMS measurements (power monitoring)
  • Power conditioners, inverter units
  • Distribution boards
  • Power monitoring systems

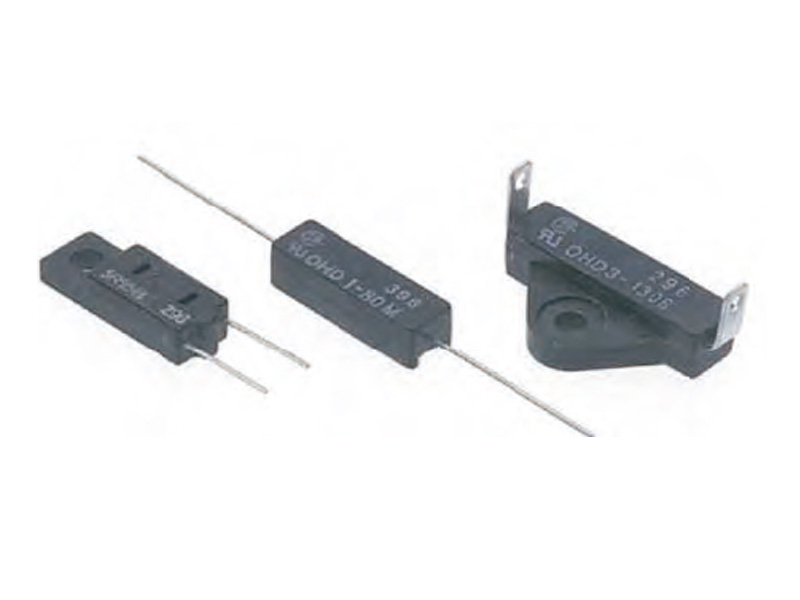

Thermal-Sensor

Features

  • High reliability
  • Excellent temperature accuracy (±2.5°C, ±5.0°C)
  • Wide range of operating temperatures available/li>
  • Excellent environmental resistance
  • Approved several safety standard

Applications

  • Thermal reed switch (TRS®)
  • Power conditioners, inverter units
  • Thermal guard

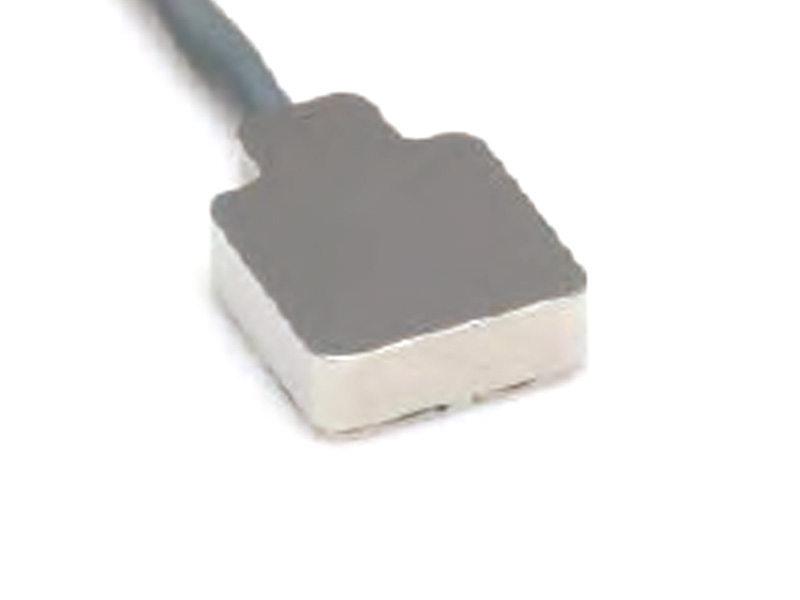

Vibration-Sensor

Features

  • High sensitivity (20mV/m/s2)
  • Wide bandwidth sensing (10Hz~15kHz) with reasonable price
  • Original product design brings high conversion efficiency
Multilayer-Piezoelectric-Actuators

Applications

  • Valve control (MFC/proportional control valve)
  • Probe control
  • High speed focusing, 3D image acquisition
  • Optical fibre/laser optical axis adjustment
  • Interferometer mirror adjustment
  • Correction of mirror angle displacement
  • Pixel shifting for the image sensor

  • Precise stage positioning
  • Nanoimprint positioning
  • Clamping (wire bonding)
  • Dispensing equipment
  • Excitation/damping equipment
  • Various tests (pressure, fatigue, wear etc.)
  • Various machining (precise centering, precise feeding)
