Exxelia Technologies

Exxelia Technologies (ex Eurofarad) is a designer and manufacturer of complex passive components and precision subsystems: ceramic, plastic film and mica capacitors, filters, position sensors, slip rings and precision mechanics for high technology applications: Aerospace, Defence, Medical, Space, Rail, and Oil Exploration.

eurofarad

Exxelia broadband capacitors show low insertion loss up to 40 GHz are perfect for high-speed up to millimetre wave applications.


Thanks to its strong experience in MLCC manufacturing, Exxelia extends its RF capacitors product offering by developing the three broadband series XBL, UBL and UBZ. Exxelia's new broadband series combines high technical performances (ultra-low insertion loss and excellent return loss over a wide bandwidth up to 40GHz), quick installation (available in standard EIA sizes compatible with SMT pick & place) and easy soldering (made of reliable ceramic material compatible to any soldering process).

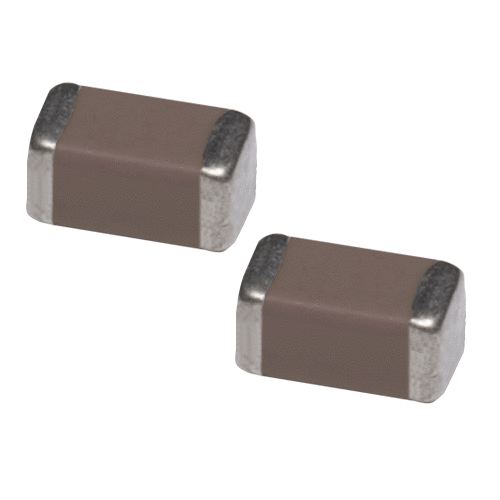

New Product: UBL Series

Exxelia broadband capacitors show low insertion loss up to 40 GHz are perfect for high-speed up to millimetre wave applications.

eurofarad-C48X

DESCRIPTION

  • EIA 0402 Case size
  • Capacitance: 100nF
  • Low insertion loss up to 40 GHz
  • RoHS Compliant

CIRCUIT APPLICATIONS

  • DC Blocking, Coupling and Bypassing

APPLICATIONS

  • Optoelectronics / High-speed data
  • Broadband test equipment & applications
  • Broadband microwave / millimetre wave amplifiers and oscillators

Product Documentation

UBL Datasheet | PDF

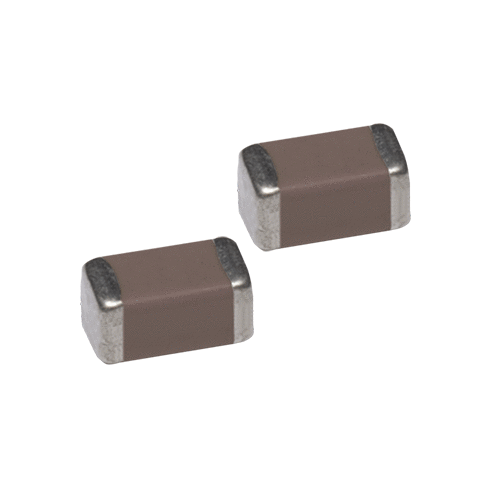

New Product: UBZ Series

Exxelia broadband capacitors show low insertion loss up to 40 GHz are perfect for high-speed up to millimetre wave applications.

eurofarad-C48X

DESCRIPTION

  • EIA 0201 Case size
  • Capacitance: 100nF
  • Low insertion loss up to 40 GHz
  • RoHS Compliant

CIRCUIT APPLICATIONS

  • DC Blocking, Coupling and Bypassing

APPLICATIONS

  • Optoelectronics / High-speed data
  • Broadband test equipment & applications
  • Broadband microwave / millimetre wave amplifiers and oscillators

Product Documentation

UBZ Datasheet | PDF

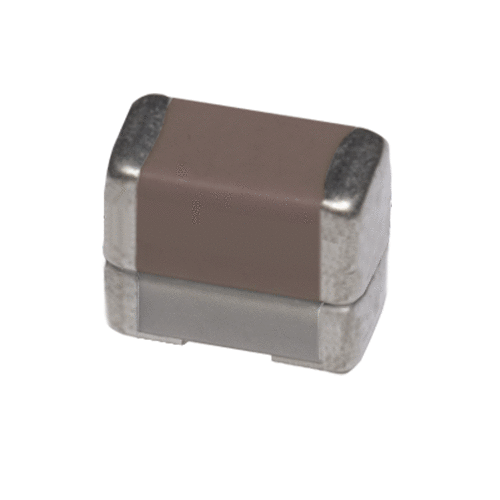

New Product: XBL Series

Exxelia broadband capacitors show low insertion loss up to 40 GHz are perfect for high-speed up to millimetre wave applications.

eurofarad-C48X

DESCRIPTION

  • EIA 0402 Case size
  • Capacitance: 100nF
  • Low insertion loss up to 40 GHz
  • RoHS Compliant

CIRCUIT APPLICATIONS

  • DC Blocking, Coupling and Bypassing

APPLICATIONS

  • Optoelectronics / High-speed data
  • Broadband test equipment & applications
  • Broadband microwave / millimetre wave amplifiers and oscillators

Product Documentation

XBL Datasheet | PDF
eurofarad-C48X

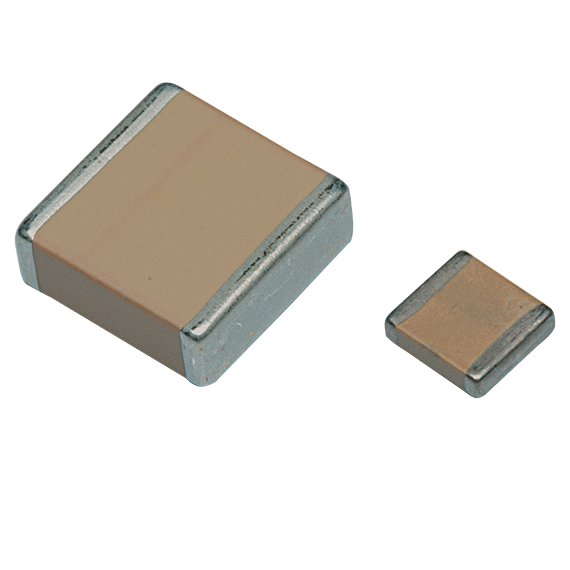

C48X dielectric: NPO and X7R advantages combined

Under working voltage, C48X dielectric provides equivalent capacitance values to an X7R material with the advantage of a very low dissipation factor (less than 5.10-4). It can also withstand very high dV/dt, up to 10kV/µs which makes it perfect for pulse and charge/discharge applications for firing units. Exxelia’s C48X capacitors, available from 200V to 5kV with EIA sizes from 1812 to 16080, are ideally suited for power applications where heat dissipation may be detrimental to performances and reliability, such as 400Hz Aircraft, Ignition systems, and Space, or as Precision/filtering capacitance in thermally challenged environment for AC or DC voltage.

Main Features

  • Up to 10kV
  • Excellent withstanding to charge/discharge
  • Excellent stability under voltage
  • C48X dielectric (-2 200 ± 500)ppm/°C

Typical Applications

  • Power supplies
  • Voltage multipliers
  • Pulse application

Product Documentation

C48X Datasheet | PDF
eurofarad-BDP

PM 948 Film Capacitors

Main Features

  • Self-healing
  • low inductance
  • Thermoplastic case
  • Epoxy resin sealed
  • Surface mount device (PM 948 - PM 948 S)
  • Terminations “DIL” leads (PM 948 N - PM 948 NS)

Typical Applications

  • Capacitor for HF switch mode power supplies

Technical Characteristics

  • Dielectric:
  • PET

Capacitance:

  • Minimum : 0,022 µF
  • Maximum : 47 µF

Voltage DC

  • Minimum : 50 V
  • Maximum : 630 V

Voltage AC:

  • Not supported

Temperature:

  • Minimum : -55 °C
  • Maximum : 125 °C

Case sizes:

  • Lxhxe = 10,7*6*10,7 to 18,5*17*17

Terminations:

  • SMD

Markets:

  • Aerospace and Defence
  • Space
  • Rail

Product Documentation

PM 948 Datasheet | PDF
eurofarad-BDP

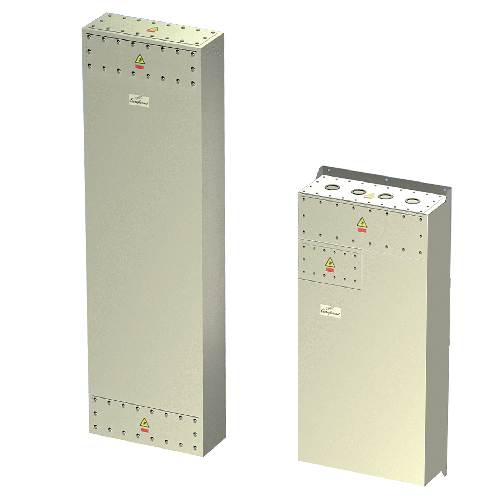

The smaller, lighter BDP asymmetric filters from Exxelia solve HEMP and TEMPEST requirements

Main Features

  • AC protection, up to 400Hz
  • Up to 80dB (300kHz)//Low leakage current
  • Asymmetric design (common choke)

Typical Applications

  • HEMP
  • Anechoic chambers
  • Faraday Cages
  • Shelters

Technical Characteristics

Current:

  • Up to: 1250 A

Voltage:

  • Minimum : 220 V
  • Maximum : 400 V

Insertion Loss:

  • Minimum : 0 dB
  • Maximum : 80 dB

Temperature:

  • Minimum : -40 °C
  • Maximum : 55 °C

Mounting:

  • Feedthru

Product Documentation

BDP Series Datasheet
cn2x-eurofarad

These two new ranges are designed to:

  • Withstand operating temperatures up to 220°C,
  • Cover operating voltages from 16V to 100V at 20°C (5V to 25V at 220°C),
  • Cover capacitance values from 1 pF to 180nF in NPO and from 100pF to 4.7μF in X7R

To meet the need of miniaturization, Exxelia-Eurofarad proposes boxes range from 2220 size to 0402 size.

These capacitors are ideal for markets such as oil exploration, in which the components must be able to endure harder and longer temperatures, or for aeronautical or defence applications .

Product Documentation

CE2X Datasheet | CN2X Datasheet
eurofarad-ceramic
  • Special capacitors
  • Microwave multilayer ceramic chip capacitors
  • Ceramic capacitors for H.F. switching power supplies
  • High voltage ceramic capacitors
  • Feed-thru ceramic capacitors
  • High temperature ceramic capacitors
  • Molded ceramic capacitors
  • Ceramic chips capacitors
  • Microwave single layer ceramic capacitors
  • Custom design
  • Ceramic Capacitors for Space use
eurofarad-film

Film Capacitors


  • Polyester Capacitors
  • Polystyrene Capacitors
  • High voltage Capacitors
  • Polycarbonate Capacitors
  • Metallized Polycarbonate / PPS Capacitors
  • Polypropylene capacitors
  • Custom design
  • Capacitors for high frequency switch mode power supplies

Exxelia-PP44R-PP44R5-PP44A2

Metallized Polypropylene PP44R-PP44R5-PP44A2 Series


  • Semi-conductor Protection
  • Decoupling
  • Current Inverters
  • High Current Filtering
  • Medium Frequency Tuning

Exxelia PP44R PP44R5 PP44A2 Datasheet PDF
Exxelia-PP88

Metallized Polypropylene PP88 Series


  • Protection of Thyristors
  • Protection of GTO Thyristors
  • Medium Frequency Tuning

Exxelia PP88 Datasheet PDF
eurofarad-PPA-FR-1-2

Metallized Polypropylene PPA-FR1 PPA-FR2 Series


  • Motor run
  • Fluorescence
  • Compensation

Exxelia PPA FR1 PPA FR2 Datasheet PDF
Exxelia-PP44R-PP44R5-PP44A2

Metallized Polypropylene PM98, PM980 Series


  • Filtering
  • Energy storage
  • Flash

Exxelia PM98-PM980 Datasheet PDF
eurofarad-mica
  • Mica SMD capacitors
  • Molded Mica capacitors
  • Dipped Mica capacitors
  • High temperature Mica capacitors
  • High voltage Mica capacitors
  • Custom design products
eurofarad-EMI
  • Custom design
  • Transient suppressor filters
  • Multiple point feed through filters
  • Surface mount filters
  • T type filters
  • L type filters
  • C type filters
  • Pi type filters
eurofarad-ECM
  • EMI/RFI Feed Through Capacitor
  • EMI/RFI Feed Through Filters
  • EMI & Tempest Filters signals
  • EMI-RFI and Tempest Filters
  • EMP current generator-injector
  • Custom design
  • HEMP Protection Signals
  • HEMP High Performance Protection Power
  • HEMP standard protections
  • Optoelectronic products
